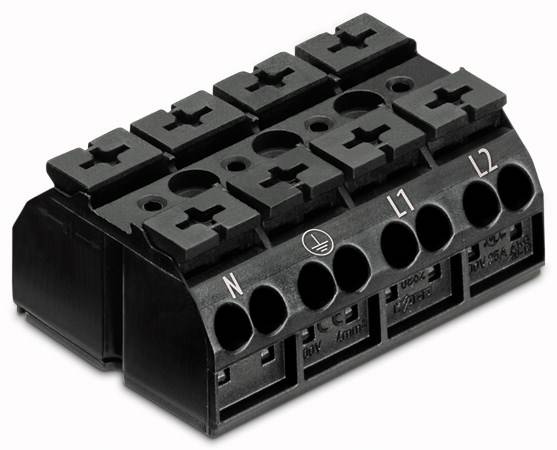

WAGO 862-8504 Appliance connector 48 mm Spring-loaded terminal Black 200 pc(s) Piece
Packaging type
Piece
Product type
Appliance connector
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Appliance connector
- Features
+ CAGE CLAMP®
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
12
- Clamp width
48 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Black
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
11 mm
- Manufacturer part #
862-8504
- Content
200 pc(s)
- Industrial packaging
Yes
- Type
862-8504
- Dim
(L x W x H) 27.50 x 48.00 x 35.00 mm
- Width
48.00 mm
- Height
35.00 mm
- Length
27.50 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
not relevant
