Name: WAGO 862-8604 Appliance connector 48 mm Spring-loaded terminal Configuration: + PE enclosure contact White 200 pc(s) Pie
Brand: WAGO
SKU: 657263

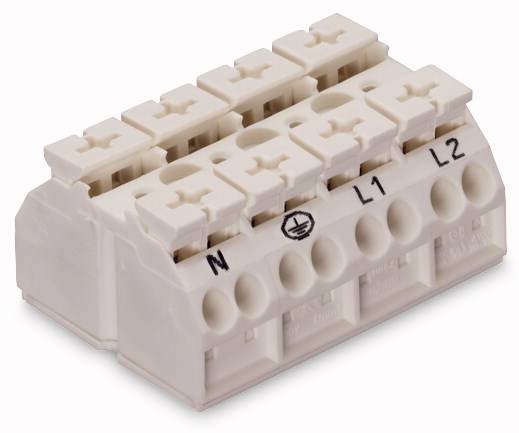

A white terminal block with eight connection holes, labelled with 'N', an earthing symbol, and 'L1' and 'L2' for electrical connections.

'Technical drawing of an electrical connector. Left: detailed view with dimensions, right: side view with vertical measurements.'

1/2

Packaging type

Piece

Product type

Appliance connector

Connection

Spring-loaded terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Appliance connector

Features: + CAGE CLAMP®

Connection: Spring-loaded terminal

Configuration: + PE enclosure contact

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 20

AWG max.: 12

Clamp width: 48 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Factory colour: White

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 11 mm

Manufacturer part #: 862-8604

Content: 200 pc(s)

Industrial packaging: Yes

Type: 862-8604

Dim: (L x W x H) 27.50 x 48.00 x 35.00 mm

Width: 48.00 mm

Height: 35.00 mm

Length: 27.50 mm

Flammability rating: V0

Connector colour: White

Insulation material: Thermoplastic

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)
