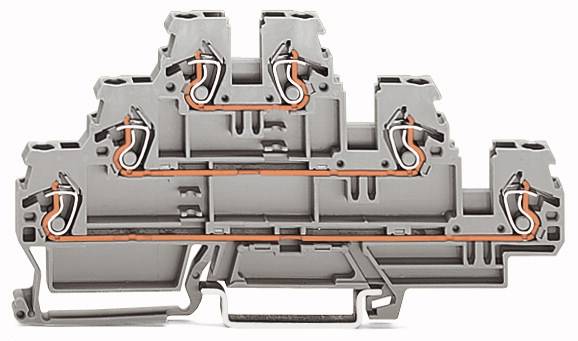

WAGO 870-553 Triple port continuity 5 mm Pull spring Configuration: L, L, N Grey 50 pc(s) Piece
Packaging type
Piece
Product type
Triple port continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Three-level terminal
- 870-553
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Triple port continuity
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
L
L
N
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5 mm
- No. of rows
3
- Pins per row
2
- Number of pins
6
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Manufacturer part #
870-553
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
870-553
- Dim
(L x W x H) 5 x 5 x 52.50 mm
- Width
5 mm
- Height
52.50 mm
- Length
5 mm
- Contamination level
3
- Weight
17.352 g
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic material
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 656167 WAGO 870-553 Triple port continuity 5 mm Pull spring Configuration: L, L, N Grey 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 656167 WAGO 870-553 Triple port continuity 5 mm Pull spring Configuration: L, L, N Grey 50 pc(s) Piece
