Name: WAGO Pin housing PCB 2091 Total number of pins 2 Contact spacing: 3.50 mm 2091-1102/002-000 100 pc(s)
Brand: WAGO
SKU: 653648

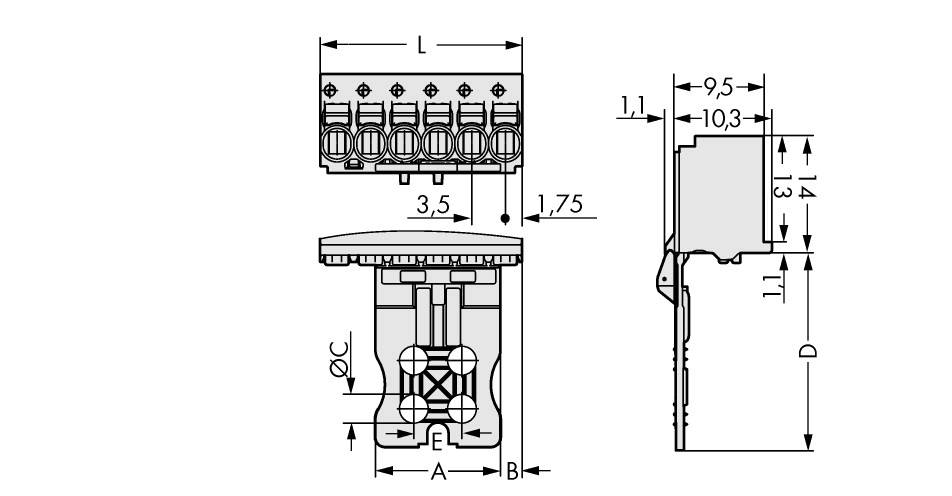

Technical drawing of an electrical connector with multiple views and dimensioning. Shows details such as spacing, heights, and widths.

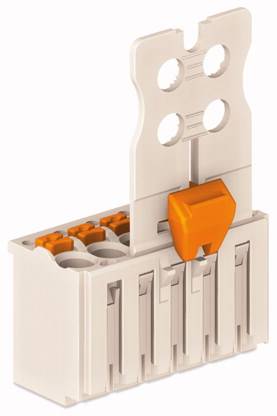

A beige-white electrical connector with an orange locking lever. Features multiple connection points.

1/2

Product type

Pin housing PCB

Connector type

Pin strip, straight

No. of rows

Series

2091

3.50 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PicoMAX ® Connector System

Content: 100 pc(s)
No. of rows: 1
Total number of pins: 2

Technical specifications

Product type: Pin housing PCB

Connector type: Pin strip, straight

No. of rows: 1

Connector system: board-to-board

Series: 2091

Features: + strap handle
+ one-hand locking mechanism

CS: 3.50 mm

Pins per row: 2

Total number of pins: 2

Width: 31.00 mm

Nominal current: 10 A

Nominal current - rounded value: 10 A

Content: 100 pc(s)

AWG max.: 14

AWG (min.): 24

Stripping length (max.): 9.00 mm

Dim: (L x W x H) 7.00 x 31.00 x 12.40 mm

Connection: Print

Case material: Polyphthalamide (PPA GF)

Manufacturer part #: 2091-1102/002-000

Factory colour: Light grey

Industrial packaging: Yes

Contact material: Cathode copper

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 160 V

Height: 12.40 mm

Length: 7.00 mm

max. cross section: 1.5 mm²

Min. cross section: 0.2 mm²

Max. temperature: +100 °C

Min. temperature: -60 °C

Type: 2091-1102/002-000

: Grey

: 3.5

: 31 mm

: 12.4 mm

: 160 V

: 2

: -60-100 °C

: V0

: FALSE

: Spring clamp connection

: Spring clamp connection

: FALSE

: 0.2-1.5 mm²

: 0.25-0.75 mm²

: 0.2-1.5 mm²

: 0.2-1.5 mm²

: Thermoplastic

: 10 A

: FALSE

UKCA: not relevant
