Name: WAGO Pin housing PCB 2091 Total number of pins 2 Contact spacing: 3.50 mm 2091-1122 200 pc(s)
Brand: WAGO
SKU: 653680

Technical drawing of an electronic connector. Dimensions: Length 35 mm, Width 14 mm, Height 10.3 mm. Contains five contact points.

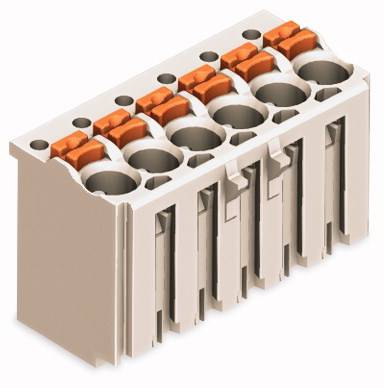

A bright, rectangular connector element with six slots and orange locking mechanisms for wire connections.

1/2

Product type

Pin housing PCB

Connector type

Pin strip, right angle

No. of rows

Series

2091

3.50 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PicoMAX ® Connector System

Content: 200 pc(s)
No. of rows: 1
Total number of pins: 2

Technical specifications

Product type: Pin housing PCB

Connector type: Pin strip, right angle

No. of rows: 1

Connector system: wire-to-board

Series: 2091

Features: + strap handle

CS: 3.50 mm

Pins per row: 2

Total number of pins: 2

Width: 14.00 mm

Nominal current: 10 A

Nominal current - rounded value: 10 A

Content: 200 pc(s)

AWG max.: 14

AWG (min.): 24

Stripping length (max.): 9.00 mm

Dim: (L x W x H) 7.00 x 14.00 x 11.40 mm

Connection: Print

Case material: Polyphthalamide (PPA GF)

Manufacturer part #: 2091-1122

Factory colour: Light grey

Industrial packaging: Yes

Contact material: Cathode copper

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 160 V

Height: 11.40 mm

Length: 7.00 mm

max. cross section: 1.5 mm²

Min. cross section: 0.2 mm²

Type: 2091-1122

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connector type

Width

Series

Total number of pins

WAGO Pin housing PCB 2091 Total number of pins 2 Contact spacing: 3.50 mm 2091-1122 200 pc(s)

Item no:653680

Unavailable

Conrad Electronic

This article

10 A

Pin strip, right angle

14.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 10 Contact spacing: 3.50 mm 2091-1130 100 pc(s)

Item no:653764

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

35.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 12 Contact spacing: 3.50 mm 2091-1132 100 pc(s)

Item no:653778

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

42.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 3 Contact spacing: 3.50 mm 2091-1123 200 pc(s)

Item no:653721

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

14.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 4 Contact spacing: 3.50 mm 2091-1124 200 pc(s)

Item no:653753

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

14.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 5 Contact spacing: 3.50 mm 2091-1125 200 pc(s)

Item no:653769

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

17.50 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 6 Contact spacing: 3.50 mm 2091-1126 100 pc(s)

Item no:653718

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

21.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2091 Total number of pins 8 Contact spacing: 3.50 mm 2091-1128 100 pc(s)

Item no:653752

Unavailable

Conrad Electronic

10 A

Pin strip, right angle

28.00 mm

2091

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

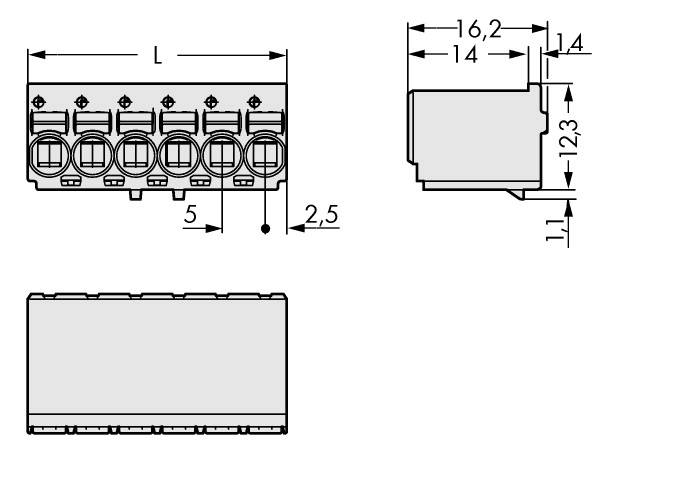

WAGO Pin housing PCB 2092 Total number of pins 10 Contact spacing: 5 mm 2092-1130 100 pc(s)

Item no:655403

Unavailable

Conrad Electronic

10 A

Pin strip, straight

50.00 mm

2092

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO Pin housing PCB 2092 Total number of pins 10 Contact spacing: 5 mm 2092-1130/000-1000 100 pc(s)

Item no:655422

Unavailable

Conrad Electronic

10 A

Pin strip, straight

50.00 mm

2092

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1
