Name: WEG 12428117 MPW40-3-U010 Motor surge protector switch adjustable 10 A 1 pc(s)
Brand: WEG
SKU: 1398418
Availability: InStock

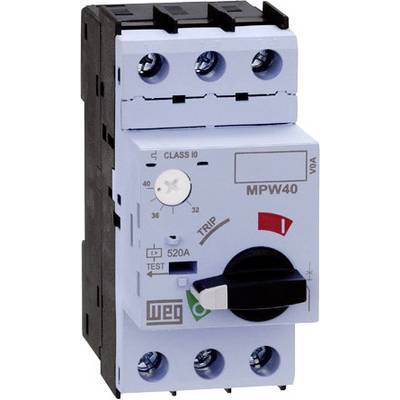

A motor protection switch with current adjustment settings ("520A"), test functions, and operational labelling.

Image similar

Product type

Motor surge protector switch

Switching current (max.)

10 A

Switch/button features

adjustable

Connection

Screw terminal

Switching current (min.)

6.3 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 64.52 / piece)

€ 64.52

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Setting range 6.3 - 10 A.
Rated operating voltage (Ue): 690 V/AC
Rated surge voltage strength (Uimp): 6 kV
Installation position: Any

Product type: Motor surge protector switch

Switch/button features: adjustable

Connection: Screw terminal

Switching current (min.): 6.3 A

Switching current (max.): 10 A

Min. temperature: -20 °C

Max. temperature: +70 °C

: IP20

Length: 98 mm

Width: 45 mm

Height: 98 mm

Durability: 100000 cycles

Content: 1 pc(s)

Type: MPW40-3-U010

Dim: (L x W x H) 98 x 45 x 98 mm

RoHS-compliant: Yes

Frequency: 50 Hz
60 Hz

Frequency: 50 - 60 Hz

Variants(All information include VAT, plus shipping costs)

Switching current (max.)

WEG 12428117 MPW40-3-U010 Motor surge protector switch adjustable 10 A 1 pc(s)

Item no:1398418

Fast track dispatch on Wed 28 Oct

2 Piece(s)Conrad Electronic

This article

10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 64.52^*

WEG 12428086 MPW40-3-D004 Motor surge protector switch adjustable 0.4 A 1 pc(s)

Item no:1398412

Fast track dispatch on Wed 28 Oct

3 Piece(s)Conrad Electronic

0.4 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.39^*

WEG 12428108 MPW40-3-D016 Motor surge protector switch adjustable 1.6 A 1 pc(s)

Item no:1398413

Dispatches on Tue 3 Nov

Conrad Electronic

1.6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.39^*

WEG 12428110 MPW40-3-D025 Motor surge protector switch adjustable 2.5 A 1 pc(s)

Item no:1398414

Fast track dispatch on Wed 28 Oct

6 Piece(s)Conrad Electronic

2.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 50.41^*

WEG 12428112 MPW40-3-U004 Motor surge protector switch adjustable 4 A 1 pc(s)

Item no:1398417

Fast track dispatch on Wed 28 Oct

4 Piece(s)Conrad Electronic

4 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 56.46^*

WEG 12428115 MPW40-3-D063 Motor surge protector switch adjustable 6.3 A 1 pc(s)

Item no:1398415

Dispatches on Tue 3 Nov

Conrad Electronic

6.3 A

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 47.39^*

WEG 12428128 MPW40-3-U016 Motor surge protector switch adjustable 16 A 1 pc(s)

Item no:1398419

Dispatches on Tue 3 Nov

Conrad Electronic

16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 56.46^*

WEG 12428131 MPW40-3-U032 Motor surge protector switch adjustable 32 A 1 pc(s)

Item no:1398422

Fast track dispatch on Wed 28 Oct

4 Piece(s)Conrad Electronic

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 105.88^*

WEG 12428084 MPW40-3-C016 Motor surge protector switch adjustable 0.16 A 1 pc(s)

Item no:1398408

Unavailable

Conrad Electronic

0.16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.34^*

WEG 12428085 MPW40-3-C025 Motor surge protector switch adjustable 0.25 A 1 pc(s)

Item no:1398409

Unavailable

Conrad Electronic

0.25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.34^*

Documents & Downloads

Datasheet

Datasheet 1398418 WEG 12428117 MPW40-3-U010 Motor surge protector switch adjustable 10 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1398418 WEG 12428117 MPW40-3-U010 Motor surge protector switch adjustable 10 A 1 pc(s)

Description

Motor protection circuit breaker series MPW40 from 0.1 to 40 A for switching and protection of engines up to 18.5 kW/415 V. protection type IP20, with overload and short circuit initiation, phase failure-sensitive, temperature-compensation and short-circuit breaking capacity up to 100 kA and/or intrinsically safe to 10 A, 16 to 32 A 50 kA and 40 A 30 kA.
The engine protective switch are built and tested according to IEC/EN 60947 or DIN VDE 0660 and have main switch and disconnecting switch characteristics according to the IEC 204/DIN VDE 0113.
They fulfill permissions and certifications according to UL/CSA, GOST and BV.
The protection switch can be equipped with front-sided (ACBF) or side (ACBS) auxiliary contacts, and undervoltage trip units and triggered alarms.
