Name: WEG SSW07 0024 T5 SZ 10194171 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 230 V AC, 575 V AC Nom
Brand: WEG
SKU: 2523239
Availability: BackOrder

A Weg SSW 07 electric soft starter, showing operating buttons and status lights. Suitable for motor control applications.

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 599.00 / piece)

€ 599.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class IP 20, built-in device
Mains voltage 3x 230V-575V
Network frequency: 50~60 Hz
Engine power at 3x 230V: 5.5kW
Engine power at 3x 400V: 11kW
Engine power at 3x 575V: 18.5kW
Up to 24A rated motor current
3xInenn for 30s all 6min
3 digital inputs
2 relay outputs (normally open contact), 240V/1A, programmable
Size/dimension/weight/environmental conditions
1/ (162Hx95Bx157T)mm / 1.3kg / 55°C / 1000m
Documentation: 1 x German
Certified to UL, CSA, CE

Motor voltage: 3x 230V-575V V/50 - 60 Hz

Product type: Soft starter

Supply current: 24 A

Motor power at 230 V: 5.5 kW

Motor power at 400 V: 11 kW

Operating voltage: 3 x 230 V/AC - 575 V AC

Nominal voltage: 230 V AC
575 V AC

Operating phases: 3

Manufacturer part #: 10194171

Nominal current: 24 A

Nominal current - rounded value: 24 A

Type: SSW07 0024 T5 SZ

Motor power at 230V / 400V: 11 kW

Dim: (W x H x D) 95 x 162 x 157 mm

Width: 95 mm

Height: 162 mm

Depth: 157 mm

Max. temperature: 55 °C

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Motor power at 400 V

Product type

Operating voltage

Motor power at 230 V

Motor power at 230V / 400V

Nominal voltage

WEG SSW07 0024 T5 SZ 10194171 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 230 V AC, 575 V AC Nominal current 24 A

Item no:2523239

Available soon

Conrad Electronic

This article

24 A

11 kW

Soft starter

3 x 230 V/AC - 575 V AC

5.5 kW

11 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 599.00^*

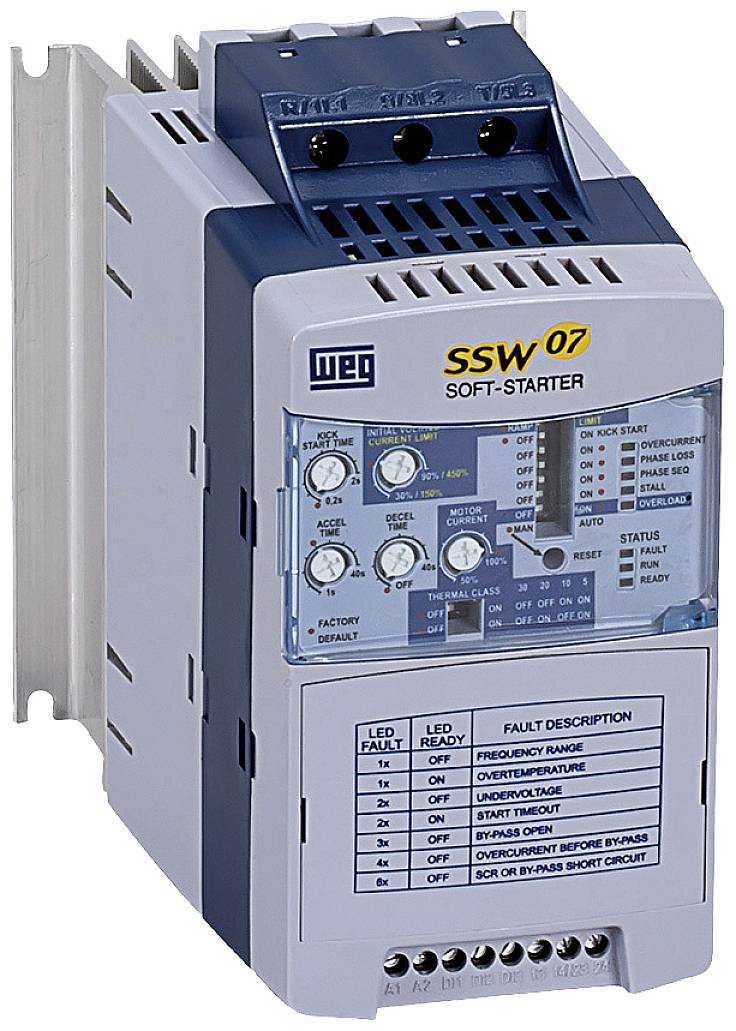

WEG SSW07 0017 T5 SZ 10194170 Soft starter Motor power at 400 V 9.2 kW Motor power at 230 V 4 kW 230 V AC, 575 V AC Nominal current 17 A

Item no:2523234

Available soon

Conrad Electronic

17 A

9.2 kW

Soft starter

3 x 230 V/AC - 575 V AC

4 kW

9.2 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

WEG SSW07 0030 T5 SZ 10194172 Soft starter Motor power at 400 V 15 kW Motor power at 230 V 9.2 kW 230 V AC, 575 V AC Nominal current 30 A

Item no:2523240

Available soon

Conrad Electronic

30 A

15 kW

Soft starter

3 x 230 V/AC - 575 V AC

9.2 kW

15 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 625.00^*

WEG SSW07 0061 T5 SZ 10194174 Soft starter Motor power at 400 V 30 kW Motor power at 230 V 18.5 kW 230 V AC, 575 V AC Nominal current 61 A

Item no:2523242

Available soon

Conrad Electronic

61 A

30 kW

Soft starter

3 x 230 V/AC - 575 V AC

18.5 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 859.00^*

WEG SSW07 0085 T5 SZ 10194175 Soft starter Motor power at 400 V 9.2 kW Motor power at 230 V 4 kW 230 V AC, 575 V AC Nominal current 85 A

Item no:2523243

Available soon

Conrad Electronic

85 A

9.2 kW

Soft starter

3 x 230 V/AC - 575 V AC

4 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,065.00^*

WEG SSW07 0130 T5 SZ 10194176 Soft starter Motor power at 400 V 55 kW Motor power at 230 V 37 kW 230 V AC, 575 V AC Nominal current 130 A

Item no:2523244

Available soon

Conrad Electronic

130 A

55 kW

Soft starter

3 x 230 V/AC - 575 V AC

37 kW

55 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,545.00^*

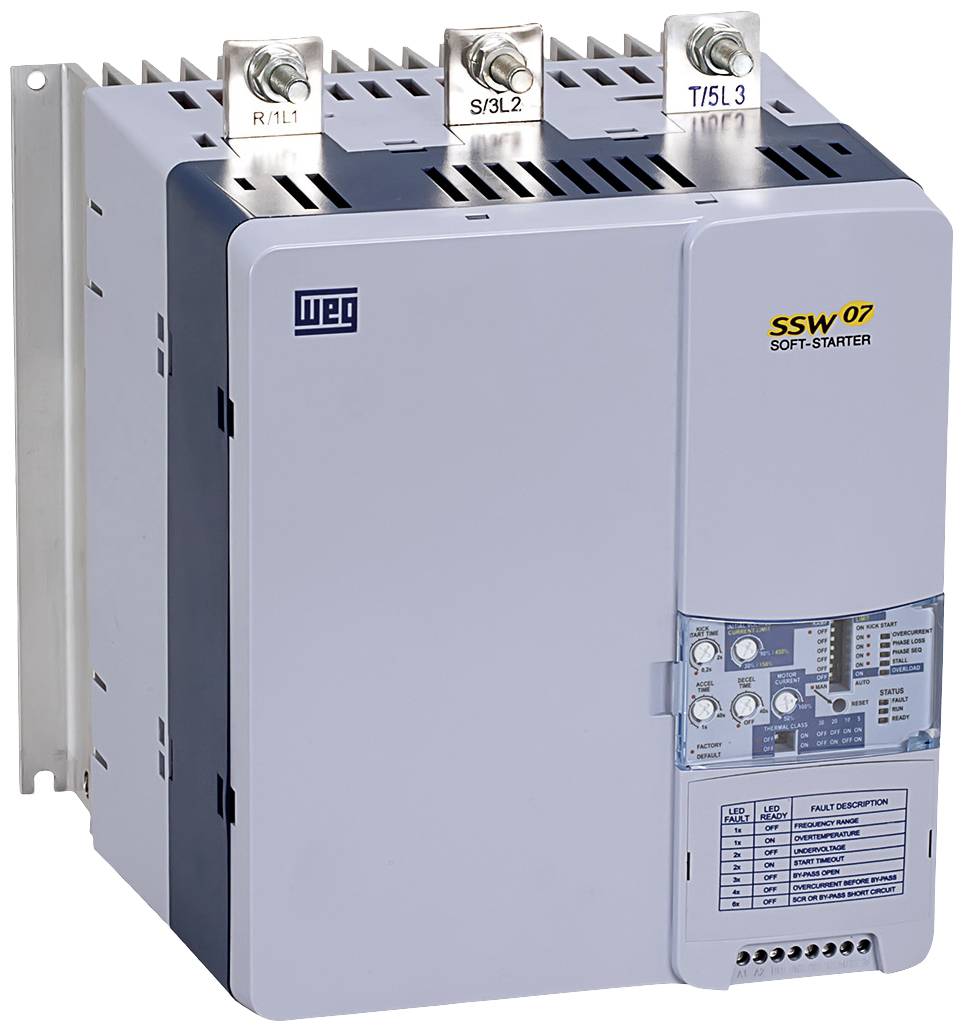

WEG SSW07 0171 T5 SZ 10233130 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 55 kW 230 V AC, 575 V AC Nominal current 171 A

Item no:2523245

Available soon

Conrad Electronic

171 A

90 kW

Soft starter

3 x 230 V/AC - 575 V AC

55 kW

90 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,955.00^*

WEG SSW07 0200 T5 SZ 10233131 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 55 kW 230 V AC, 575 V AC Nominal current 200 A

Item no:2523246

Available soon

Conrad Electronic

200 A

110 kW

Soft starter

3 x 230 V/AC - 575 V AC

55 kW

110 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,319.00^*

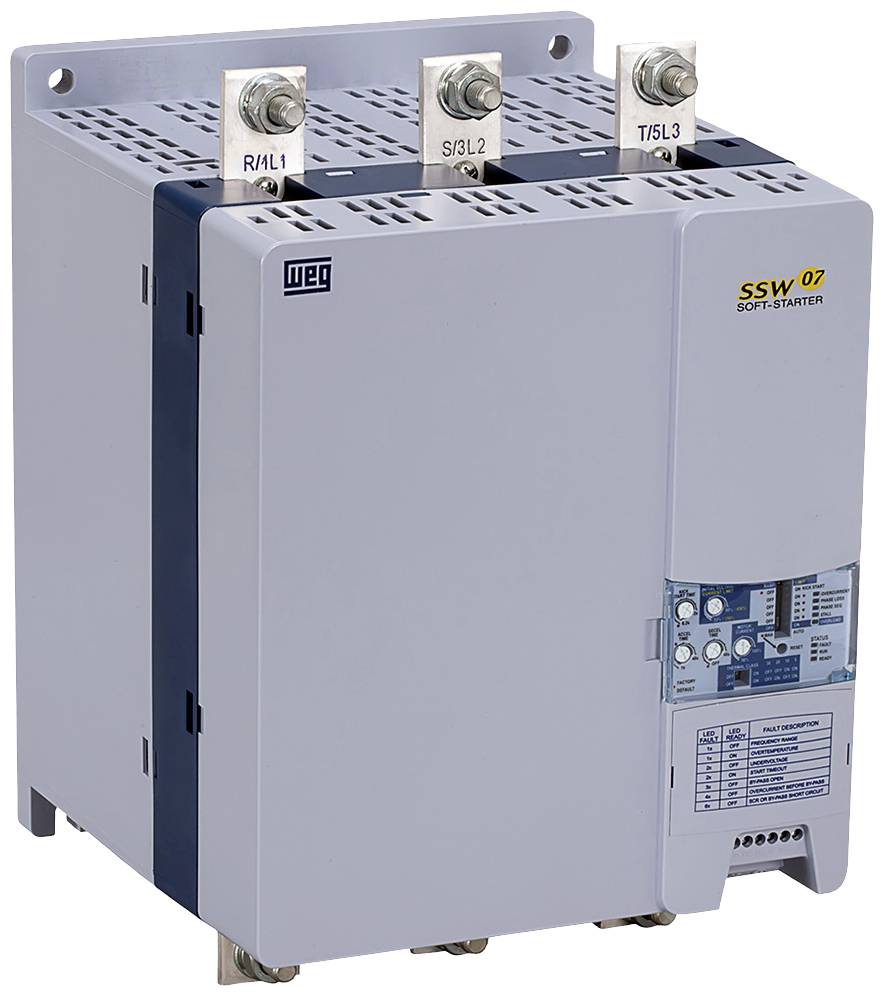

WEG SSW07 0255 T5 SH2Z 11043355 Soft starter Motor power at 400 V 132 kW Motor power at 230 V 75 kW 230 V AC, 575 V AC Nominal current 255 A

Item no:2523247

Available soon

Conrad Electronic

255 A

132 kW

Soft starter

3 x 230 V/AC - 575 V AC

75 kW

132 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,625.00^*

WEG SSW07 0312 T5 SH2Z 11043357 Soft starter Motor power at 400 V 160 kW Motor power at 230 V 90 kW 230 V AC, 575 V AC Nominal current 312 A

Item no:2523248

Available soon

Conrad Electronic

312 A

160 kW

Soft starter

3 x 230 V/AC - 575 V AC

90 kW

160 kW

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,725.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2523239 WEG SSW07 0024 T5 SZ 10194171 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 230 V AC, 575 V AC Nom

Information

Information 2523239 WEG SSW07 0024 T5 SZ 10194171 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 230 V AC, 575 V AC Nom

Description

Soft starters are static starters that accelerate, slow and protect three-phase induction motors. The control of the voltage applied to the motor by adjusting the firing angle of thyristors allows the soft starter to gently start and stop an electric motor.

The SSW07 with Digital Signal Processor (DSP) control is designed for high performance at engine starts and stops with an excellent cost-benefit ratio. Simple to set up, simplifies commissioning and daily operation.
The SSW07 is compact to optimize the space in electrical panels. It already contains electric motor protection. The easy-to-install optional accessories allow it to adapt to customer needs.

The SSW07 adapts to customer needs with its easy-to-install optional accessories. A keyboard, communication interface or motor PTC input can be added to the product.

Note: The SSW07 Soft Starter Series is designed for industrial or professional use only.

This text is machine translated.
