Name: Weidmüller 1234750050 RJ45 / M12 Patch cable CAT 5e S/UTP 5.00 m Green Flame-retardant, incl. detent 1 pc(s)
Brand: Weidmüller
SKU: 201846

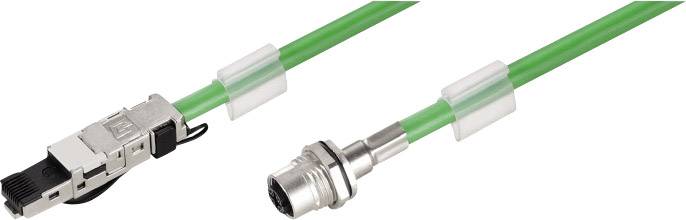

Green network cable with detachable connection plugs at both ends, demonstrating variety of types and connection options.

A green Ethernet cable with RJ45 connector on the left side and an M12 connector on the right side.

1/2

Product type

Patch cable

Specification

CAT 5e

Shielding

S/UTP

Connection type

RJ45

M12

Cable length

5.00 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Belkin CAT5e S/UTP Patch cable

IE-C5DS4 UG 0050 Mbsa 20-E

Technical specifications

Operating temperature: -40 to + +70 °C
Bending radius, min., repeated: 15x cable diameter
Bending radius, min., once: 5x cable diameter
Insulation diameter 1.5 mm
Sheath diameter, max. 6.7 mm
Net weight 346 g
Material coat: Pure

Product type: Patch cable

: CAT 5e

: S/UTP

Connection type: RJ45
M12

No. of A connectors: 1 x

Type A: M12 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 5.00 m

Factory colour: Green

Connector version: straight

Cable features: Flame-retardant
incl. detent

: 22/7

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 100 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s

Halogen-free: Yes

Design type: S/UTP

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 201846 Weidmüller 1234750050 RJ45 / M12 Patch cable CAT 5e S/UTP 5.00 m Green Flame-retardant, incl. detent 1 pc(s)

User & Safety Instructions

User & Safety Instructions 201846 Weidmüller 1234750050 RJ45 / M12 Patch cable CAT 5e S/UTP 5.00 m Green Flame-retardant, incl. detent 1 pc(s)

Description

The RJ45-Cable Fast Cat 5e offers more volume than the standard CAT5e cable and is perfect for use in 5 to 10 Base-T Networks and Giga bite Ethernet in the area. Delivery includes RJ45 plug (plug to plug) and the moulded strain relief.
