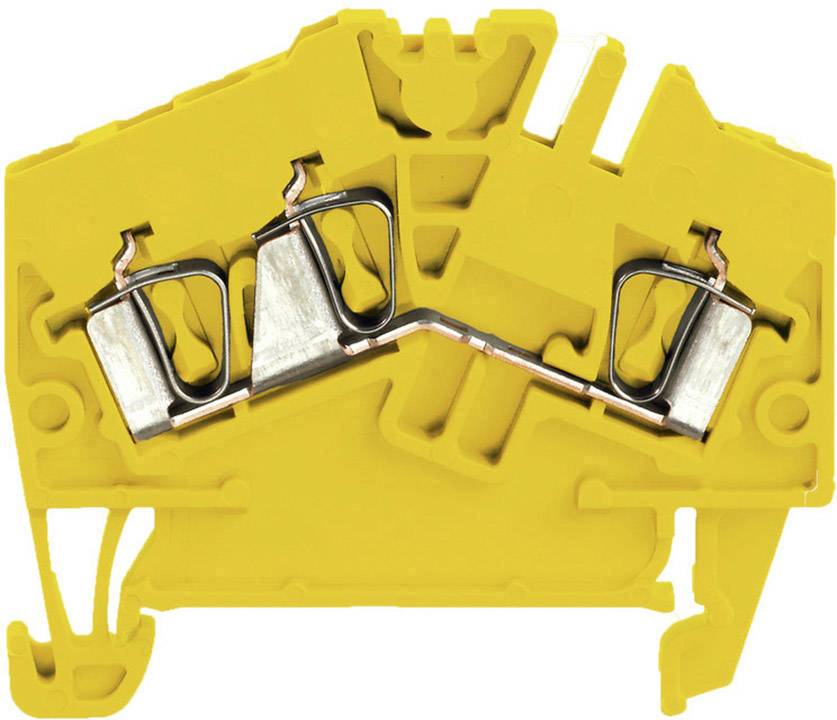

Weidmüller 1946240000 Serial continuity 2.5 mm Pull spring Yellow 100 pc(s) Package
Packaging type
Package
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Circuit series terminal
- ZDU 2.5-2/3AN GE
Our service for you
Technical specifications
- Packaging type
Package
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
12
- AWG max.
26
- Clamp width
2.5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
1946240000
- Content
100 pc(s)
- Type
ZDU 2.5-2/3AN GE
- Dim
(L x W x H) 50.5 x 5.10 x 50.50 mm
- Width
5.10 mm
- Height
50.50 mm
- Length
50.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Yellow
- Insulation material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1917373 Weidmüller 1946240000 Serial continuity 2.5 mm Pull spring Yellow 100 pc(s) Package
User & Safety Instructions
User & Safety Instructions 1917373 Weidmüller 1946240000 Serial continuity 2.5 mm Pull spring Yellow 100 pc(s) Package
What kind of Serial Terminals are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
Conrad Electronic
€ 63.99*
