Image similar

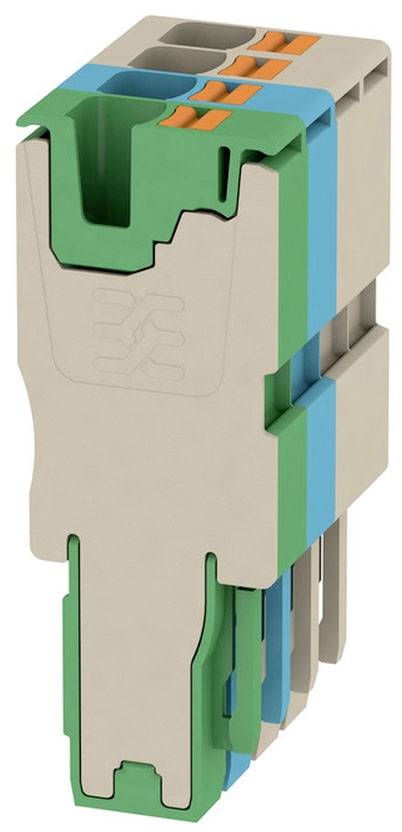

Weidmüller 2540440000 25 pc(s)
Packaging type
Piece
Type
Blank
AWG max.
12
AWG (min.)
26
Stripping length (max.)
10 mm
EAN:
Part number:
Item no:
Technical specifications
- Continuous usage temperature, min.: -60 °C
- Continuous usage temperature, max.: 130 °C
- Rated cross section: 4 mm²
- Rated voltage: 690 V
- Rated surge voltage: 8 kV
- Pollution degree: 3
- Connection direction: Top
- Clamping range, max.: 4 mm²
- Clamping range, min.: 0.14 mm²
- Flammability class according to UL 94: V-0
- conductor cross section, multi-wired, max.: 4 mm²
- conductor cross section, multi-wired, min.: 0.5 mm² conductor cross section
- Packaging type
Piece
- Type
Blank
- AWG max.
12
- AWG (min.)
26
- Stripping length (max.)
10 mm
- Dim
(L x W x H) 50.95 x 24.4 x 19 mm
- Connection
Push-in connector
- Manufacturer part #
2540440000
- Content
25 pc(s)
- Material
Wemid
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Width
24.4 mm
- Height
19 mm
- Length
50.95 mm
- Series
APG
- Type
APG 4/4-3BG-GN
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2243935 Weidmüller 2540440000 25 pc(s)
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
Conrad Electronic
€ 63.99*
