Weidmüller 2555650000 Dual port continuity 5.10 mm Screws Beige 25 pc(s)
Product type
Dual port continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

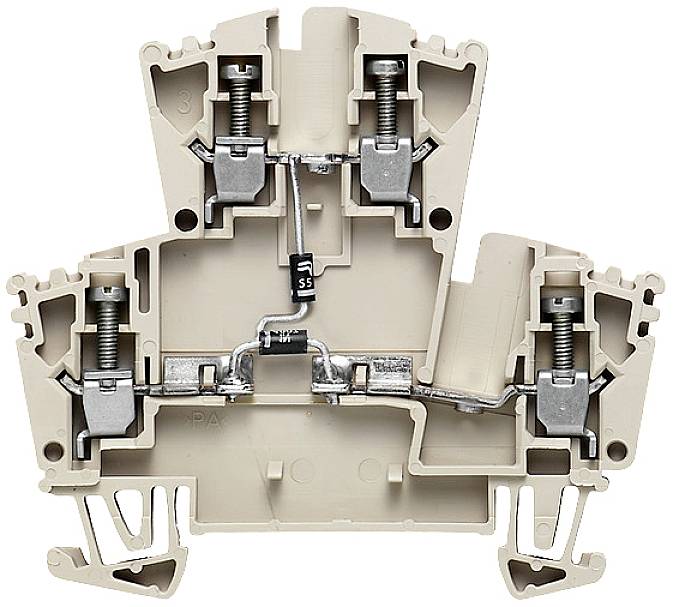

Double-level terminal block
- WDK 2.5/D/7
Our service for you
Technical specifications
- Product type
Dual port continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
12
- AWG max.
12
- Clamp width
5.10 mm
- No. of rows
2
- Pins per row
2
- Number of pins
4
- Factory colour
Beige
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Min. stripping length
26 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
2555650000
- Content
25 pc(s)
- Type
WDK 2.5/D/7
- Dim
(L x W x H) 62.50 x 5.10 x 69 mm
- Width
5.10 mm
- Height
69 mm
- Length
62.50 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
