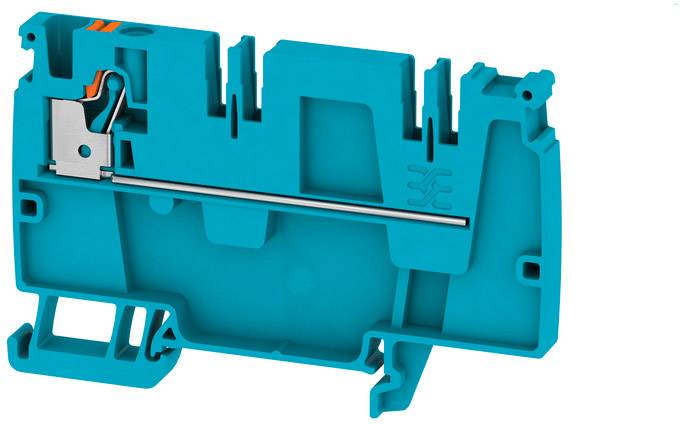

Weidmüller 2582530000 Distributor serial terminal 6.10 mm Push-in connector Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Distributor serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Distributor serial terminal
- AAP21 4 LI BL/OR
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Distributor serial terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
12
- AWG max.
12
- Clamp width
6.10 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
250 V
- Min. stripping length
26 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2582530000
- Content
50 pc(s)
- Type
AAP21 4 LI BL/OR
- Dim
(L x W x H) 53.50 x 6.10 x 82 mm
- Width
6.10 mm
- Height
82 mm
- Length
53.50 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1949529 Weidmüller 2582530000 Distributor serial terminal 6.10 mm Push-in connector Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1949529 Weidmüller 2582530000 Distributor serial terminal 6.10 mm Push-in connector Blue 50 pc(s) Piece
What kind of Serial Terminals are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
