Weiss Elektrotechnik 85/332 PCB mount transformer 1 x 230 V 1 x 12 V AC 2.30 VA 192 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
Weiss Elektrotechnik 85/332 PCB mount transformer 1 x 230 V 1 x 12 V AC 2.30 VA 192 mA
- 1 x 230 V
- 1 x 12 V AC
- 192 mA
- 2.30 VA
Technical specifications

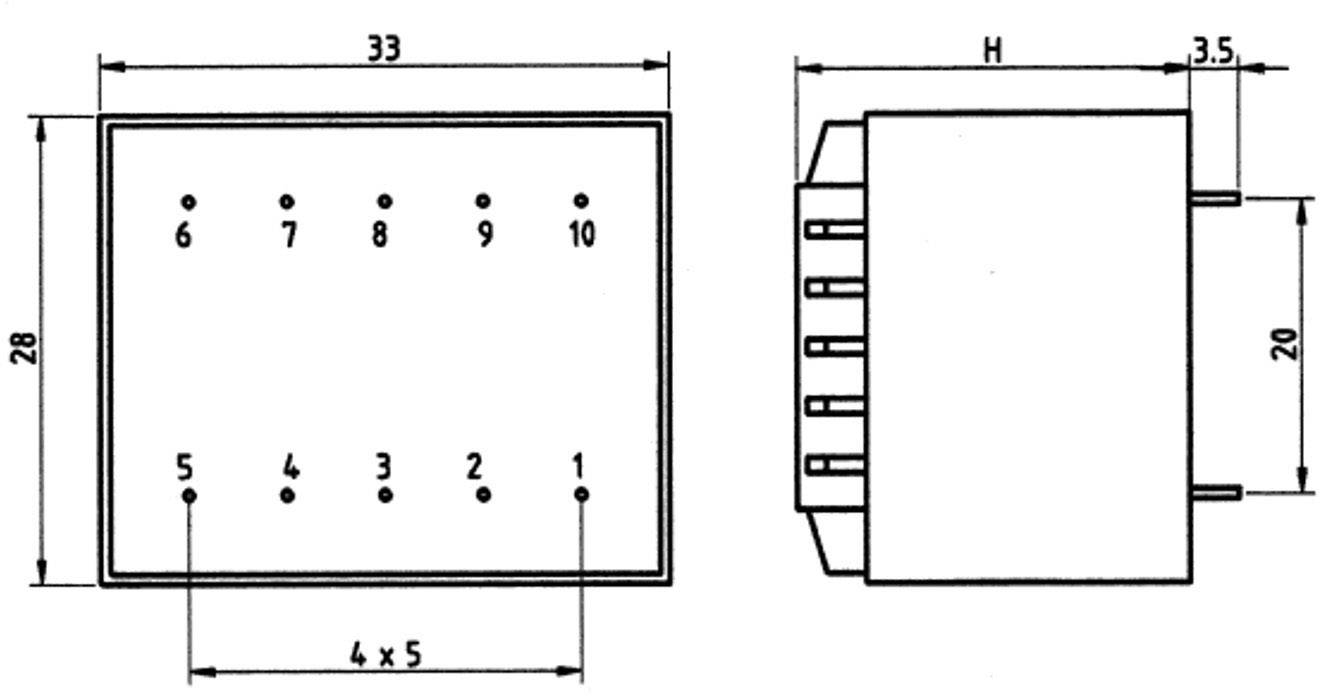

- Primary pin assignment: PIN 1 - 5, Secondary pin assignment 1: PIN 7 - 9
- Design UL 506
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
1 x 12 V AC
- Output current
192 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2.30 VA
- Width
27.5 mm
- Height
32 mm
- Length
32.5 mm
- Type
85/332
- Dim
(L x W x H) 32.5 x 27.5 x 32 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
125 g
- Content
1 pc(s)
2/3 VA
- Output voltage
12 V
