Werma Signaltechnik Signal tower 686.260.35 RST 56 LED Red , Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Technical specifications
- Spring-loaded terminal connection
- Wire cross-section minimum: 0,14mm² / 26AWG
- Wire cross-section maximum: 1.50mm² / 16AWG
- Cable entry: Through hole
- Cable entry maximum: D = 9 mm
- Mounting type: Floor mounting
- Operating temperature: -30 °C to + +50 °C.
- Stripped length: 7 mm
- Rated operating current 100 mA
- Rated switch-on current 400mA
- Protection class 3
- Pollution level 3
- Sound frequency 2900 Hz
- Product type
Signal tower
- Operating voltage
24 V DC
- No. of tones
2
- Lighted picture
Permanent light
- Signal type
Non-stop light signal
Non-stop acoustic signal
Acoustic pulse
- (Ø)
57 mm
- Height
156 mm
- Features
LED
IP66
IP69K
IK05

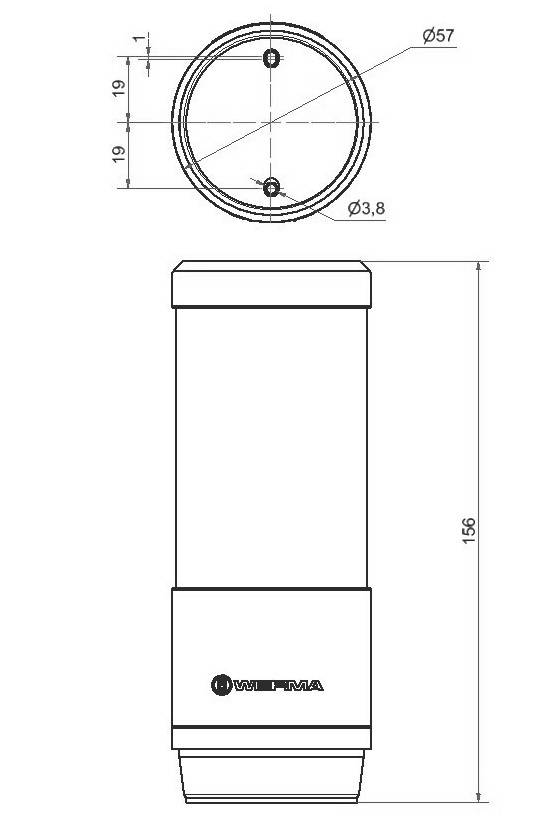

- Dim
(Ø x H) 57 mm x 156 mm
- Case colour
Black
- Colour
Red
Green
- Material
Acrylonitrile butadiene styrene
PC
ABS-PC
- Type
RST 56
- Noise emission (max.)
90 dB
- Weight
198 g
- Calotte colour
White
Documents & Downloads
Datasheet
Datasheet 3272709 Werma Signaltechnik Signal tower 686.260.35 RST 56 LED Red , Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3272709 Werma Signaltechnik Signal tower 686.260.35 RST 56 LED Red , Green 1 pc(s)
Description
Completely configured signal tower with modern design and optimal visibility. Homogeneous illumination and optimum visibility of the signal lights. The IP66/IP69K degree of protection enables the use in a wide range of environments. 2-stage signal stack in green / red. 2-tone buzzer with up to 90 dB. Floor/pipe mounting version with cable connection.
