Wieland Electric Light barrier SLC4-SM14-0300 Range (max.) 10 m Protective field height 30 24 V DC
EAN:
Part number:
Item no:
Product type
Light barrier
Type
SLC4-SM14-0300
Range of uses
Finger protection
Operating voltage
24 V DC
Smallest detectable object size (diameter)
14 mm
Number
Total (€ 1,654.62 / piece)
€ 1,654.62
plus VAT.
14-day return policy included
Technical specifications
- Product type
Light barrier
- Type
SLC4-SM14-0300
- Range of uses
Finger protection
- Operating voltage
24 V DC
- Smallest detectable object size (diameter)
14 mm
- Connector
M12
- Range (max.)
10 m
- Performance level
PL e
- Safety rating
4
- Protective field height
30
- Total height
300 mm
- Content
1 pc(s)
DC
TRUE
FALSE
Connector M12
Transmitter and receiver
250 mA
TRUE
TRUE
TRUE
FALSE
10 m
4
TRUE
Other
14 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272913 Wieland Electric Light barrier SLC4-SM14-0300 Range (max.) 10 m Protective field height 30 24 V DC
Description

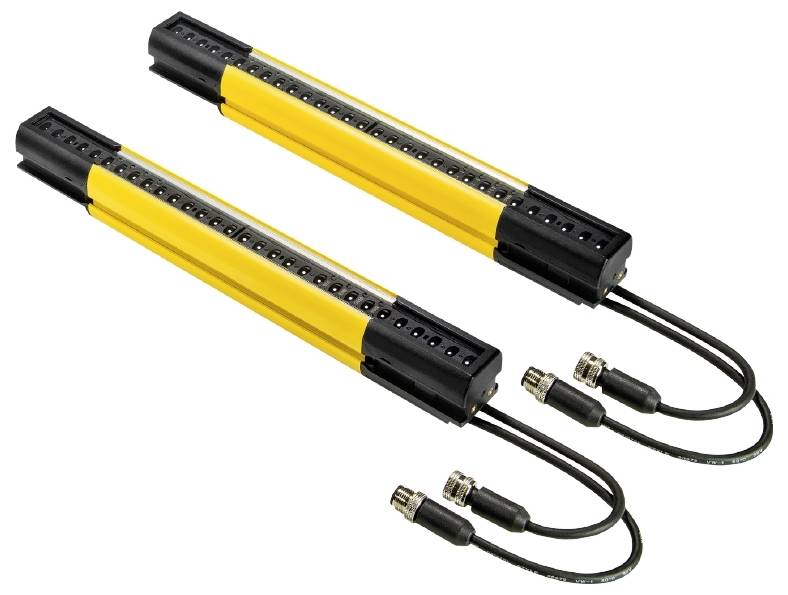

Safety light curtain standard muting
Transmitter + receiver
Type 4
PL. E
Resolution 14 mm (finger protection)
Protective field height 300 mm
Supply voltage 24 V.
M12 connector
Transmitter 5-pole
Receiver 8-pin
M12 socket
Transmitter 5-pole
Receiver 5-pin
Muting function
L-shape mounting bracket included
This text is machine translated.
Transmitter + receiver
Type 4
PL. E
Resolution 14 mm (finger protection)
Protective field height 300 mm
Supply voltage 24 V.
M12 connector
Transmitter 5-pole
Receiver 8-pin
M12 socket
Transmitter 5-pole
Receiver 5-pin
Muting function
L-shape mounting bracket included
