Wiska 10107104 BCIV-S-10-BK Conduit Black 9.8 mm 50 m

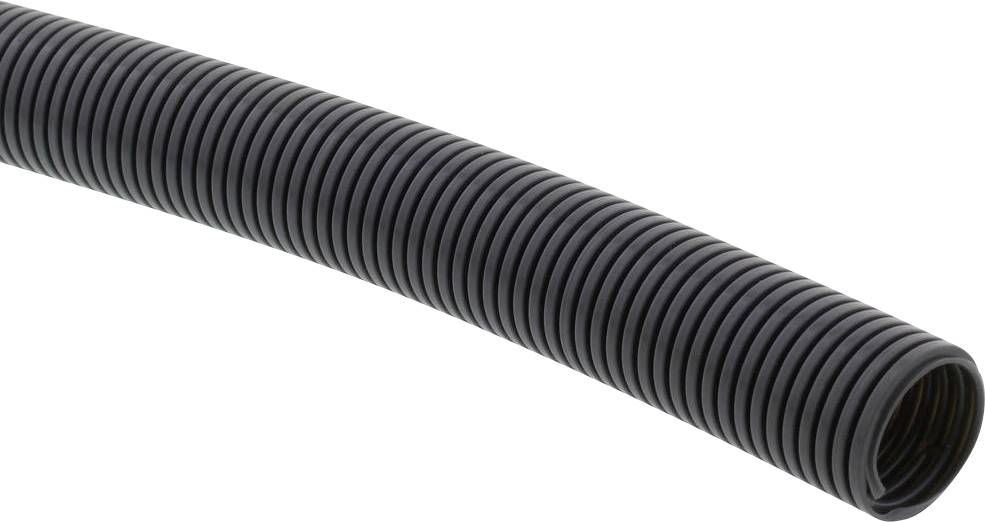

Ridged black hose in close-up. The hose is uniformly ribbed and flexible.
Technical drawing of a heat exchanger with parallel fins. The height is labelled 'ED' and arrows indicate the direction of measurement.
1/2
Product type
Conduit
Content
50 m
Material
Polyamide 12
Conduit features
halogen-free
UV-resistant
oil-resistant
Inside diameter
9.8 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 2.60)
€ 160.00
-19 %
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

CORRUGATED TUBE PA12 UL94-V2

Our service for you

Technical specifications

Product type

Conduit

Content

50 m

Factory colour

Black

Material

Polyamide 12

Conduit features

halogen-free

UV-resistant

oil-resistant

Inside diameter

9.8 mm

Outside Ø

13 mm

Max. temperature

+110 °C

Min. temperature

-40 °C

Length

50 m

Bend radius

21 mm

Fire protection properties

V2

Manufacturer part #

10107104

RoHS-compliant

Yes

Type

BCIV-S-10-BK

Documents & Downloads

Datasheet

Datasheet 2479554 Wiska 10107104 BCIV-S-10-BK Conduit Black 9.8 mm 50 m

User & Safety Instructions

User & Safety Instructions 2479554 Wiska 10107104 BCIV-S-10-BK Conduit Black 9.8 mm 50 m

Description

Plastic protective hose to protect cables from mechanical stress, sand and moisture.

This text is machine translated.
