Buy Wittenberg Antennen WBV-3R DVB-T amplifier

A metal casing with a yellow label shows a broadband amplifier. Frequency range: 5-1000MHz. Gain: 33dB. Connections: Input, Output.

'Wittemberg Antenna Amplifier' housing in yellow and grey with technical specifications and a red switch.

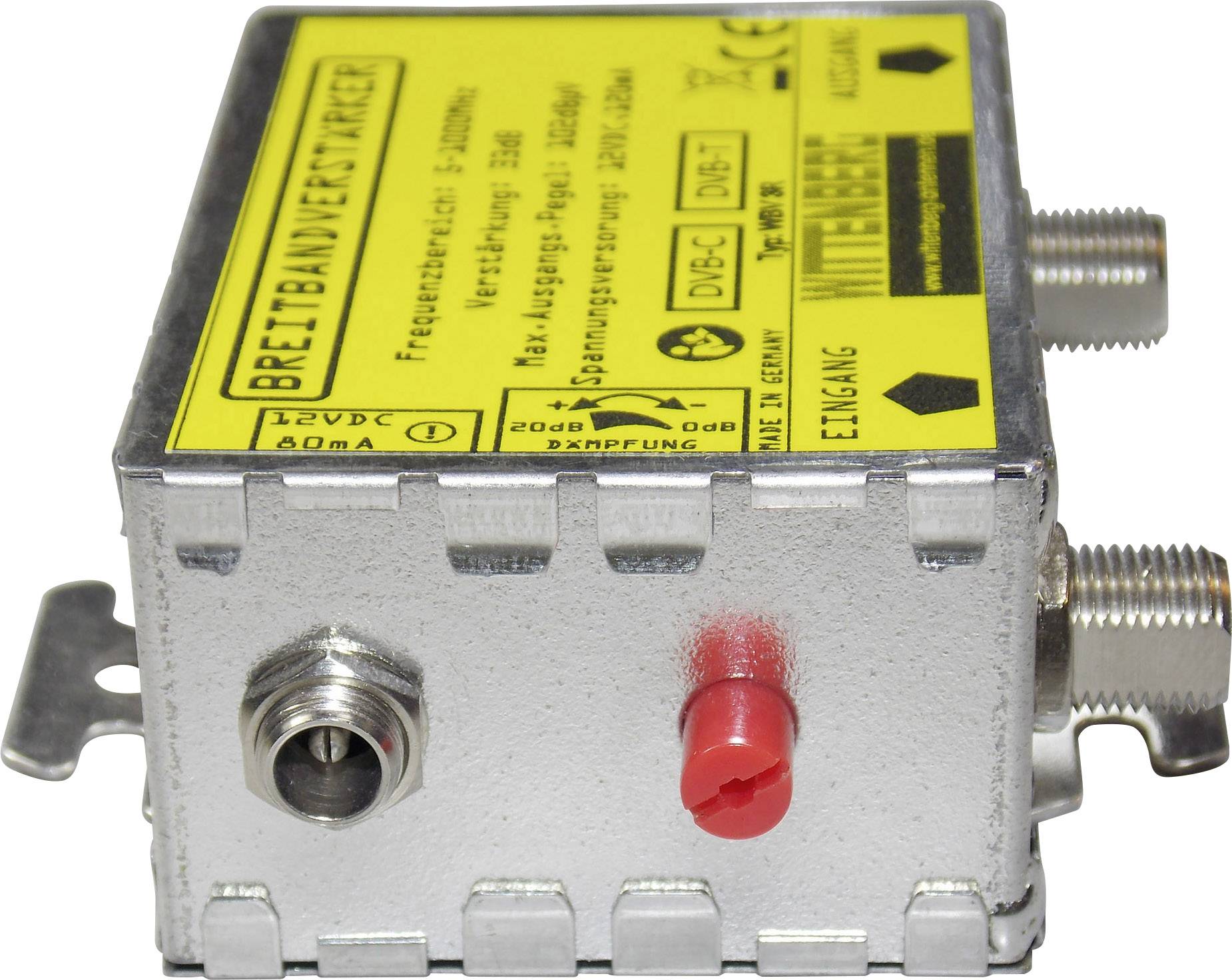

An electrical component with a yellow shield, designated as a 'broadband amplifier'. It has multiple connections.

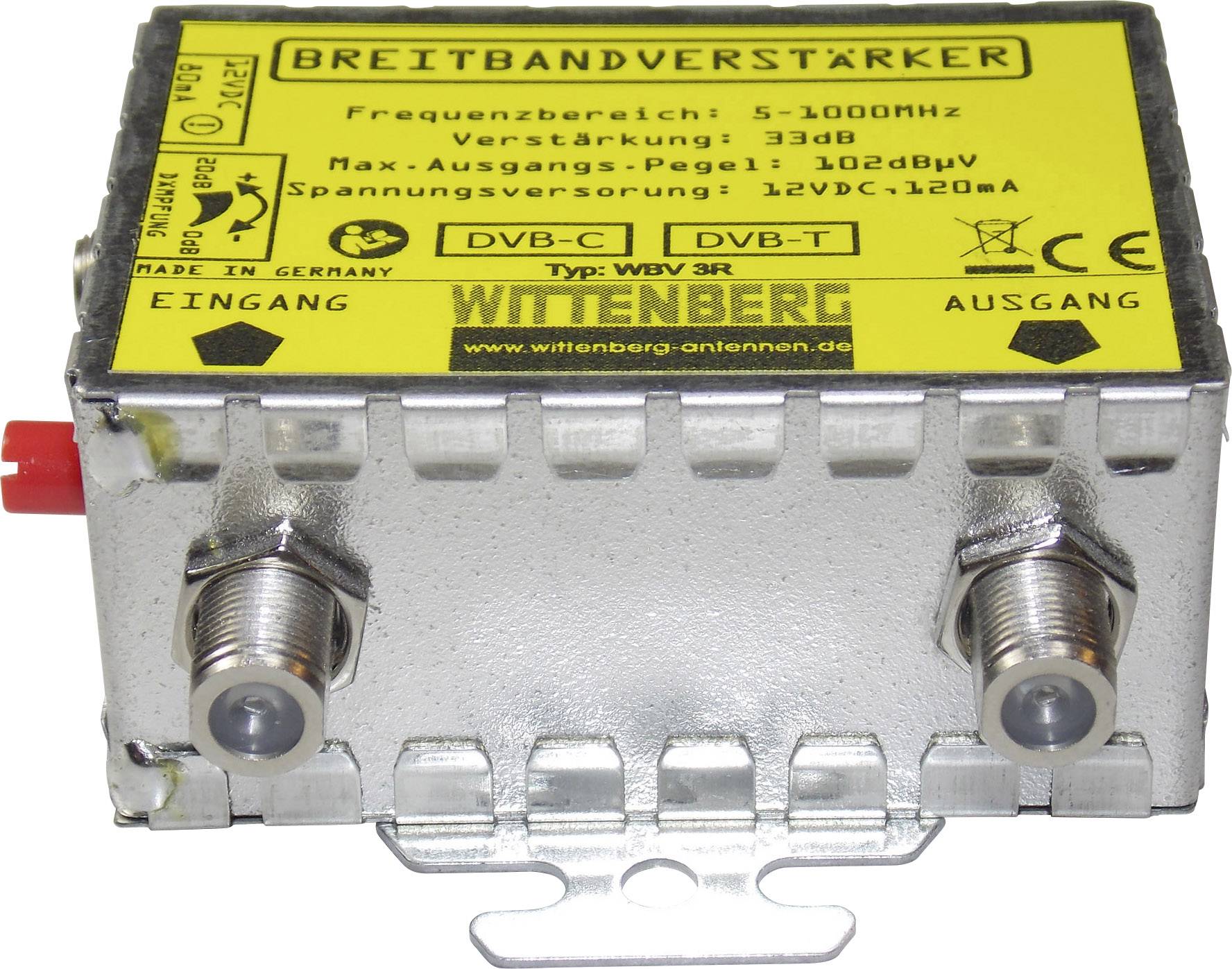

'Broadband amplifier with frequency range 5-1000MHz, gain 33dB. Silver housing, two connections for input and output.'

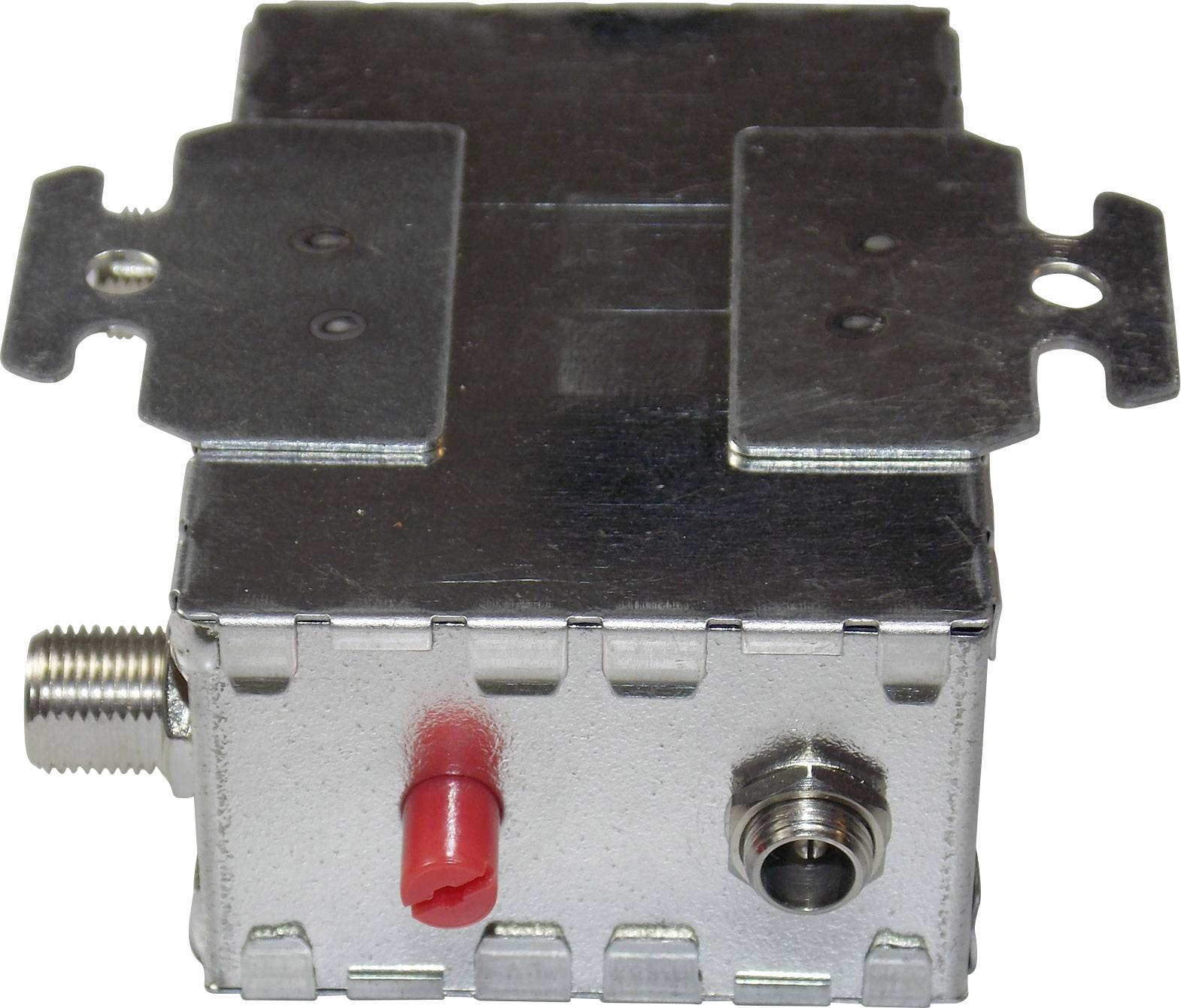

A rectangular, silver metal device with connections and mounting points, typically used for electronic or TV reception equipment.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 57.13 / piece)

€ 57.13

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Wittenberg mini-amplifier Woodland owners-3R

Suitable for DVB-C and DVB-T/DVB-T2
Amplification 28/33 dB - 20 dB (adjustable)
Space-saving by very small built

Technical specifications

Frequency range 5 - 1000 MHz
Amplification: 28/33 dB - 20 dB adjustable
Max. Output level 102 dBμV.

Power supply (details): 12 VDC, 120 mA

Dim: (W x H x D) 66 x 48 x 30 mm

Depth: 30 mm

Height: 48 mm

Width: 66 mm

Product type: DVB-T amplifier

Documents & Downloads

Datasheet

Datasheet 673204 Wittenberg Antennen WBV-3R DVB-T amplifier

User & Safety Instructions

User & Safety Instructions 673204 Wittenberg Antennen WBV-3R DVB-T amplifier

Description

Wide range compact amplifier for amplification of DVB-C (cable TV) and DVB-T/DVB-T2 (terrestrial) signals. The amplifier is characterised by a high controllability of at low noise figure.

This text is machine translated.

Scope of delivery

Wittenberg mini-amplifier Woodland owners-3R.

Hints

Power supply not included in the delivery
