Name: XCell Non-standard battery (rechargeable) 4x 18650 Li-ion 7.4 V 7000
Brand: XCell
SKU: 3768162
Availability: InStock

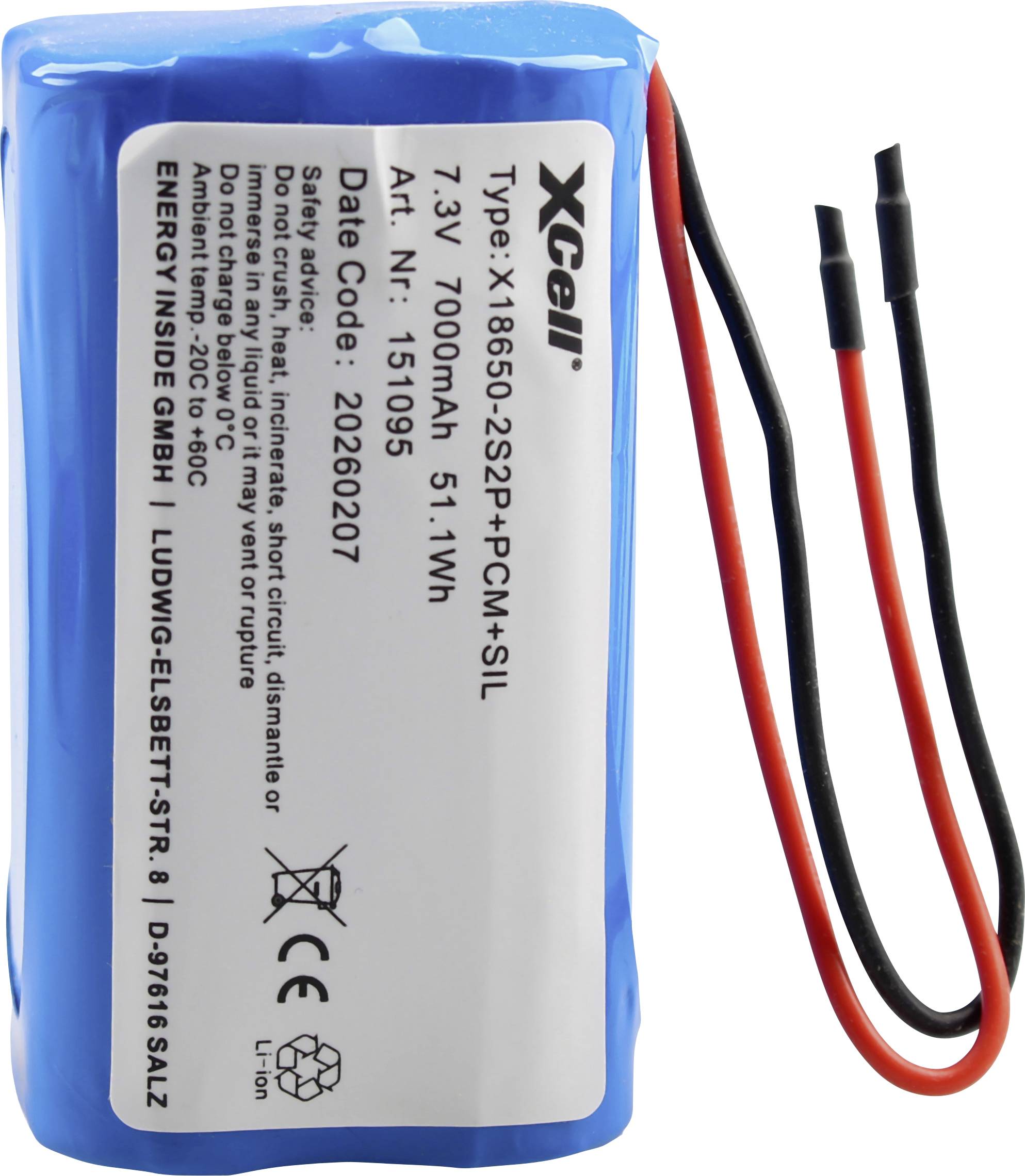

Blue XCell 7.3V 7000mAh Li-ion battery pack with red and black wires attached.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

40 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 35.99 / piece)

€ 35.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

XCell Li-ion battery pack 7.4V / 7000 mAh 2S2P + open cable strands

• High energy density (approximately twice that of NiMH)
• Low self-discharge
• Good performance even at low temperatures
• Thermally stable, integrated protection against overloading, overload, short-circuit and deep discharge
• High cycle stability
• Quality tested
• Safety board for maximum safety
• No memory effect

Technical specifications

Product type: Non-standard battery (rechargeable)

Size: 18650

No. of cells: 4

Voltage: 7.4 V

Capacity (mAh, Ah): 7000

Technology: Li-ion

Length: 40 mm

Width: 40 mm

Height: 70 mm

(Ø): 3.6 cm

Weight: 202

Content: 1 pc(s)

Manufacturer part #: 151095

Type: 151095

Rechargeable: Yes

Dim: (Ø x H) 3.6 cm x 70 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3768162 XCell Non-standard battery (rechargeable) 4x 18650 Li-ion 7.4 V 7000

User & Safety Instructions

User & Safety Instructions 3768162 XCell Non-standard battery (rechargeable) 4x 18650 Li-ion 7.4 V 7000

Description

The XCell lithium ion standard battery packs have many applications and are also available in small series.
All packs are based on popular 18650 lithium ion cells and meet the UN Transport Test (UN 38.3) as standard.
By different designs in parallel or serial switching the suitable power supply can be realized for almost every application.
Lithium-ion batteries are considered a pioneering energy source: They offer around twice the energy density of NiMH cells and low self-discharge, WAS makes them ideal for a wide range of applications. In addition, lithium-ion packs are thermally stable and very cold-resistant. The integrated protection circuit reliably protects against overcharging, overload, short circuit and deep discharge.

This text is machine translated.
