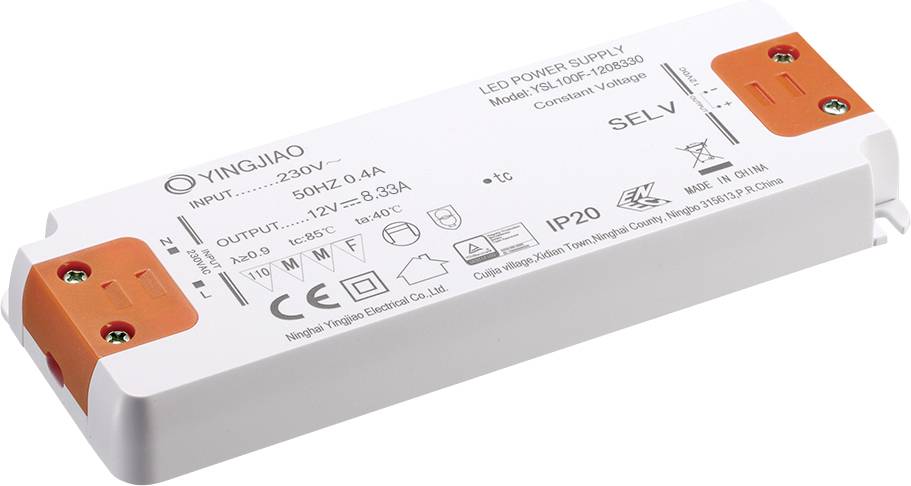

YingJiao YSL100F-1208330 LED driver 100 W 8.33 A 12 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Fire.47802063 YSL100F-100W LED-SNT IP20 Plast
- 12 V
- 8.33 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 160 mm x 58 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
100 W
- No. of outputs
1 x
- Output current (min.)
8.33 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
100 W (max)
- Width
58 mm
- Length
160 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
92 %
Documents & Downloads
Datasheet
Datasheet 3435661 YingJiao YSL100F-1208330 LED driver 100 W 8.33 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435661 YingJiao YSL100F-1208330 LED driver 100 W 8.33 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
