Name: Zehnder Pumpen 17828 S-ZKP 40 Effluent sump pump Single-stage 10000 l/h 10 m
Brand: Zehnder Pumpen
SKU: 1409331

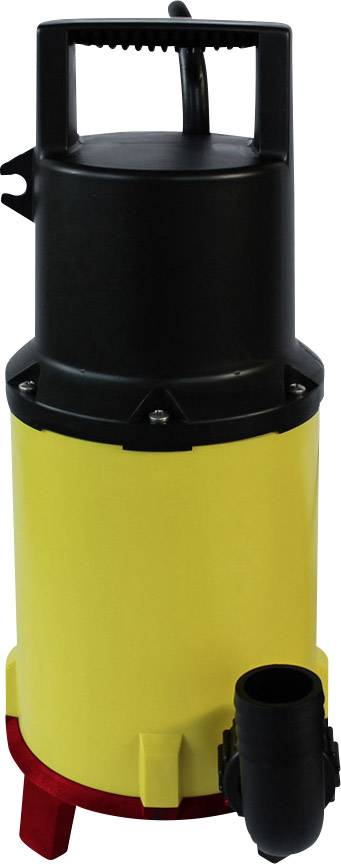

Yellow and black submersible pump with a red base. It has a handle on top and a side drainage connection. Designed for water removal.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Waste water submersible pump S-zkp 40

Without float switch
This text is machine translated.

Technical specifications

Minimum water level: 200 mm

Product type: Effluent sump pump

Features: Single-stage

Max. delivery head: 10 m

Max. feed rate: 10000 l/h

Max. discharge pressure: 1 bar

Operating voltage: 230 V

Power consumption (P1): 850 W

Power (P2): 430 W

Pressure connection: 41.91 mm (1 1/4") OT

Max. size of solids: 30 mm

Immersion depth: 5 m

Max. cable length: 10 m

Float switch: No

Height: 345 mm

(Ø): 150 mm

Dim: (Ø x H) 150 mm x 345 mm

Weight: 6.5 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1409331 Zehnder Pumpen 17828 S-ZKP 40 Effluent sump pump Single-stage 10000 l/h 10 m

Description

Suitable for use behind water softening systems and for accumulating calorific value condensate. With high-quality mechanical seal from Siliciumcarbit (SiC), motor casing made of 1.4404 stainless steel, motor shaft made of stainless steel. Sucks in the manual operating mode from 12 cm and up to 4 cm water level. Double sealing by mechanical seal and shaft seal. Pressure outlet 1 1/4" male thread and Hose nozzle 90°. For the promotion of slightly acidic condensate, aggressive or saline media (max. 15% salt content). Lifting of faeces free dirty water from domestic application (operating temperature 40°/short-term up to 90°).

This text is machine translated.
