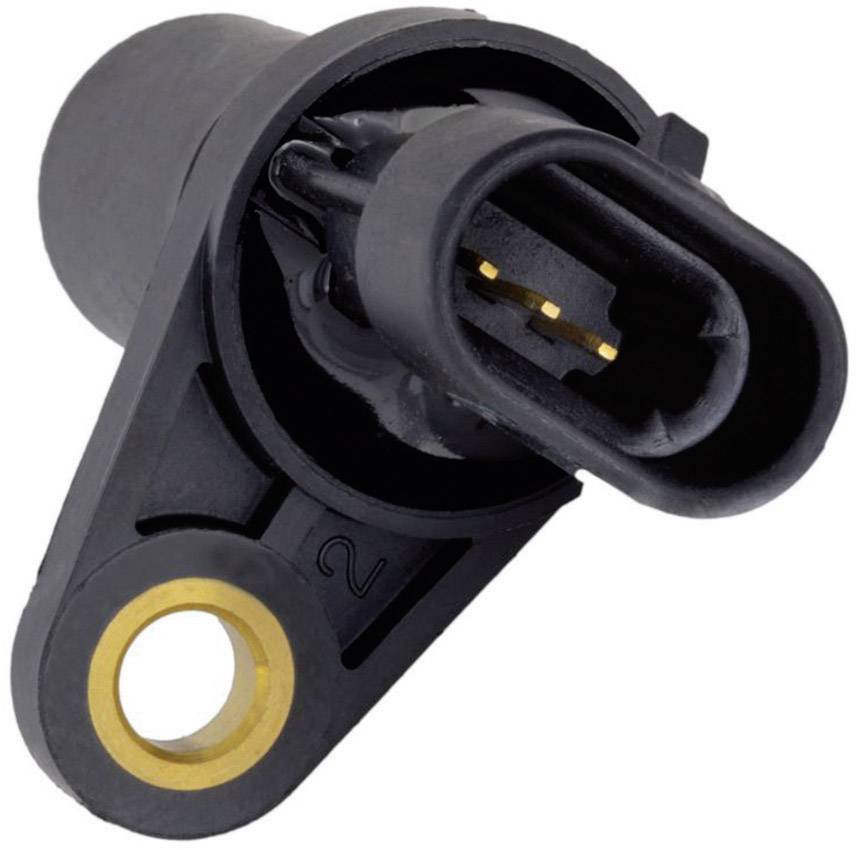

ZF Tachometer GS101201 GS101201 Delphi
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Technical specifications
- Design: Open collector output
- Type
GS101201
- Min. operating voltage
5 V DC
- Max. operating voltage
24 V DC
- Operating voltage
5 - 24 V DC
- Operating current
6 mA
- Output signal (max.)
400 mV
- Connector
Delphi
- Min. temperature
-40 °C
- Max. temperature
+140 °C
- RoHS-compliant
Yes
- Product type
Tachometer
Documents & Downloads
Datasheet
Datasheet 276109 ZF Tachometer GS101201 GS101201 Delphi
User & Safety Instructions
User & Safety Instructions 276109 ZF Tachometer GS101201 GS101201 Delphi
Description
Speed sensor in the plastic housing for temperatures up to 140°C. Encapsulated housing in accordance with IEC 60529 IP67. Resistant against fuels, solvents, fuels and lubricants in gears, in the engine compartment, when braking or the chassis. Easily adjustable connector type. ESD-protected up to 15 kV (contact discharge). Also for extremely slow movements can be used.
Application: transmission speeds, wheel speed, engine speeds, ABS braking systems.
This text is machine translated.
Application: transmission speeds, wheel speed, engine speeds, ABS braking systems.
This text is machine translated.
Hints
The sensor needs between output (green) and Vcc (red) an external pull-up resistor, the resistance value of the supply voltage depends.
