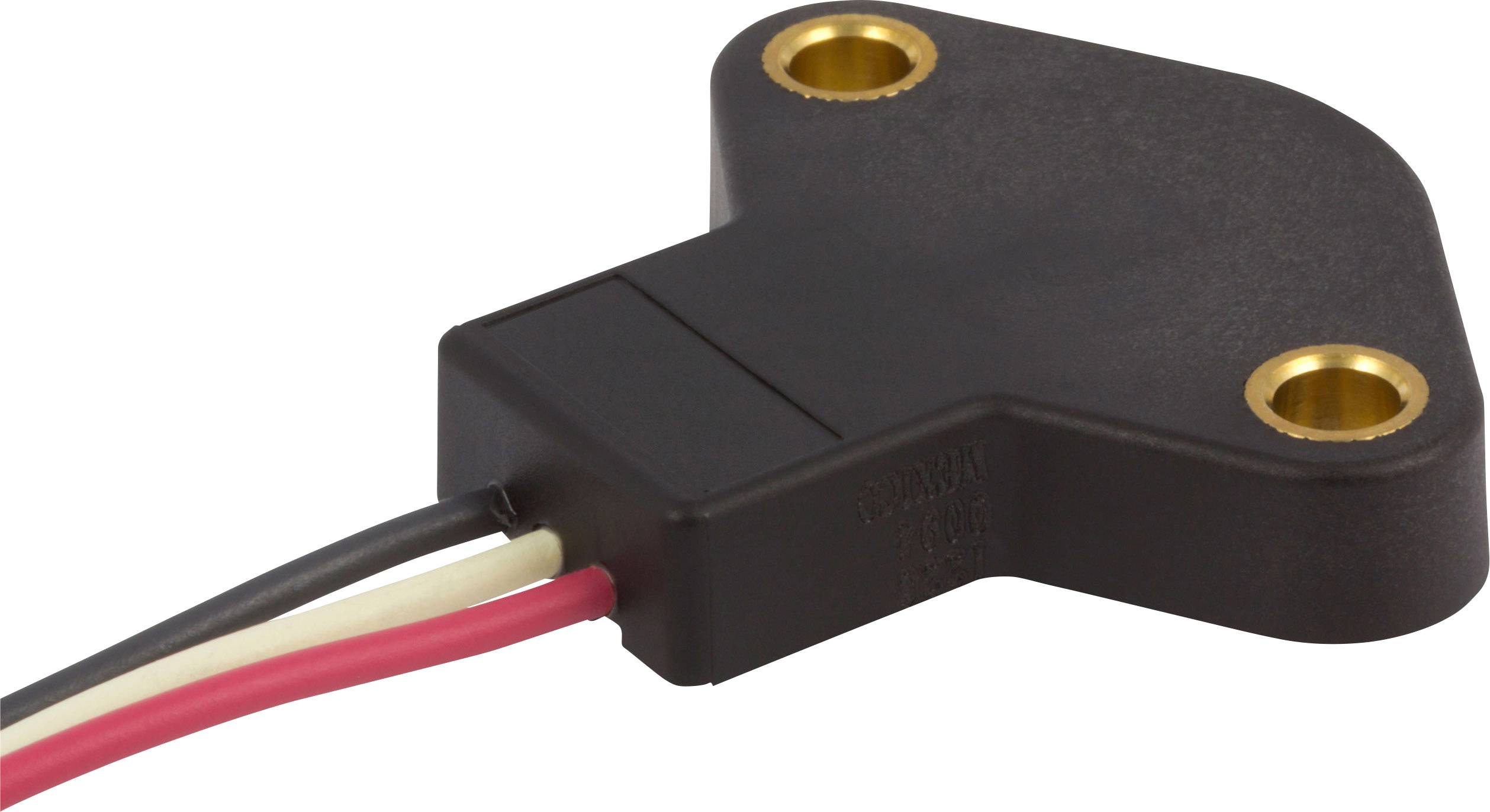

ZF Angle and tilt sensor AN820032 AN820032 Reading range: 360 ° (max) Analogue voltage Cable, open end
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Technical specifications
- Type
AN820032
- Min. operating voltage
5 V DC
- Max. operating voltage
5 V DC
- Operating voltage
5 V DC
- Reading range (max.)
360°
- Reading range
360 ° (max)
- Output signal (min.)
0.5 V
- Output signal (max.)
4.5 V
- Connector
Cable, open end
- Cable length
30.50 cm
- Interfaces
Analogue voltage
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- RoHS-compliant
Yes
- Type
To 820032
- Product type
Angle and tilt sensor
Documents & Downloads
Datasheet
Datasheet 276149 ZF Angle and tilt sensor AN820032 AN820032 Reading range: 360 ° (max) Analogue voltage Cable, open end
User & Safety Instructions
User & Safety Instructions 276149 ZF Angle and tilt sensor AN820032 AN820032 Reading range: 360 ° (max) Analogue voltage Cable, open end
Description
Programmable Angel/position sensor. High tolerance against alignment error. Contactless angle sensor for 360 degree position queries. Protection class IEC 60529 (IP68). Emc/ESD protected according to SAE J1113 standard.
The sensor is defined by the rotation of a magnet in the distance to the surface of the sensor is operated. The output voltage of the sensor changes relative to the angular position.
An optimal result is used in combination with the optionally available magnets as 500106 order no. 27 61 44.
Application: Throttle Position Sensor, shaft position detection, PRNDL switch for harsh environments, steering angle position, pedal positions.
This text is machine translated.
The sensor is defined by the rotation of a magnet in the distance to the surface of the sensor is operated. The output voltage of the sensor changes relative to the angular position.
An optimal result is used in combination with the optionally available magnets as 500106 order no. 27 61 44.
Application: Throttle Position Sensor, shaft position detection, PRNDL switch for harsh environments, steering angle position, pedal positions.
