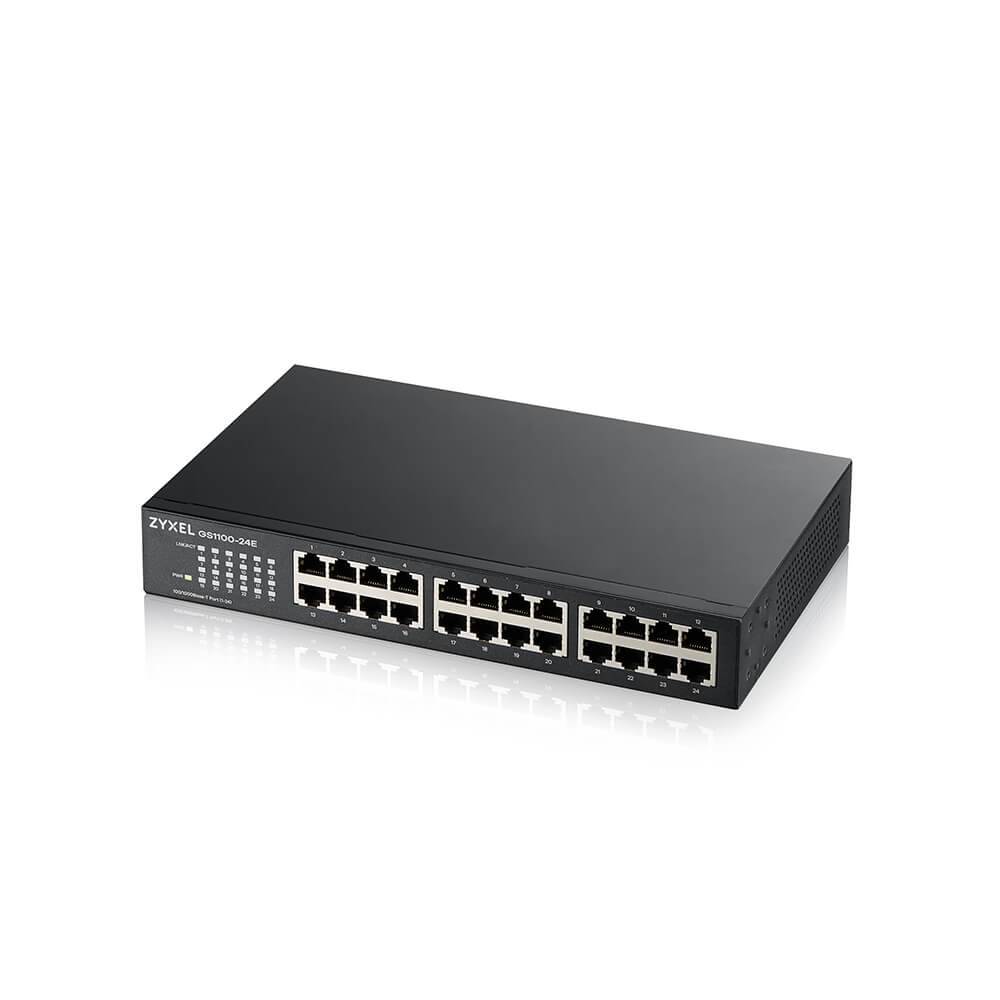

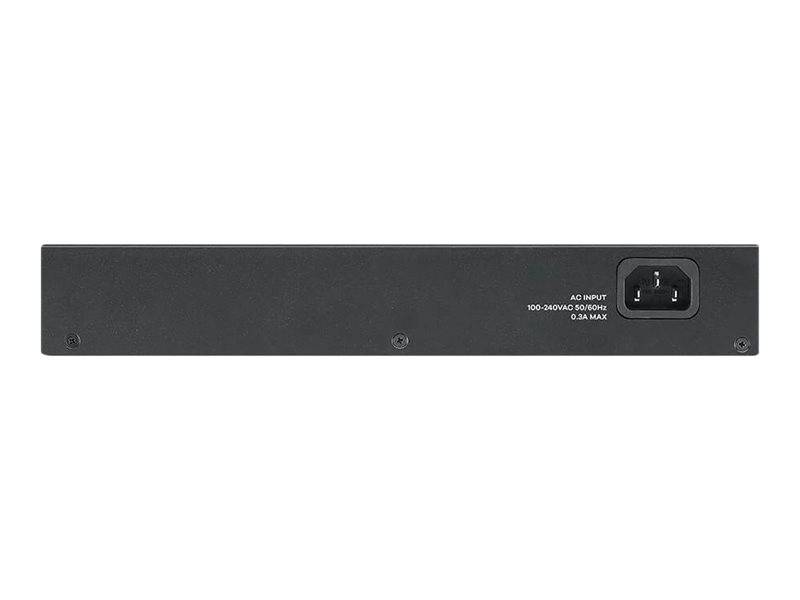

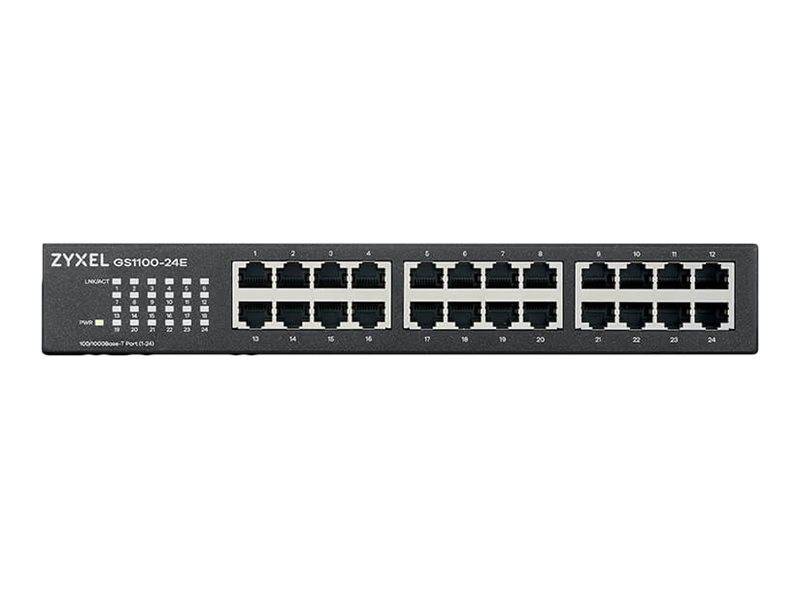

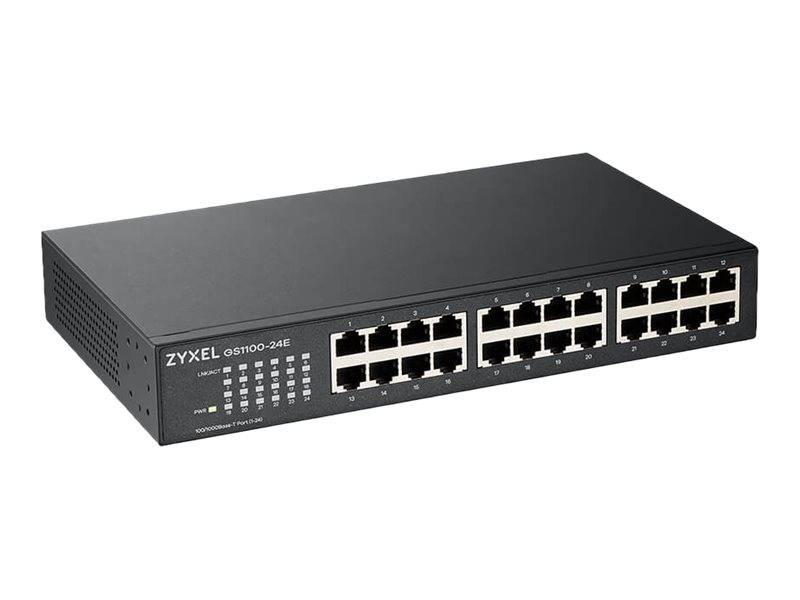

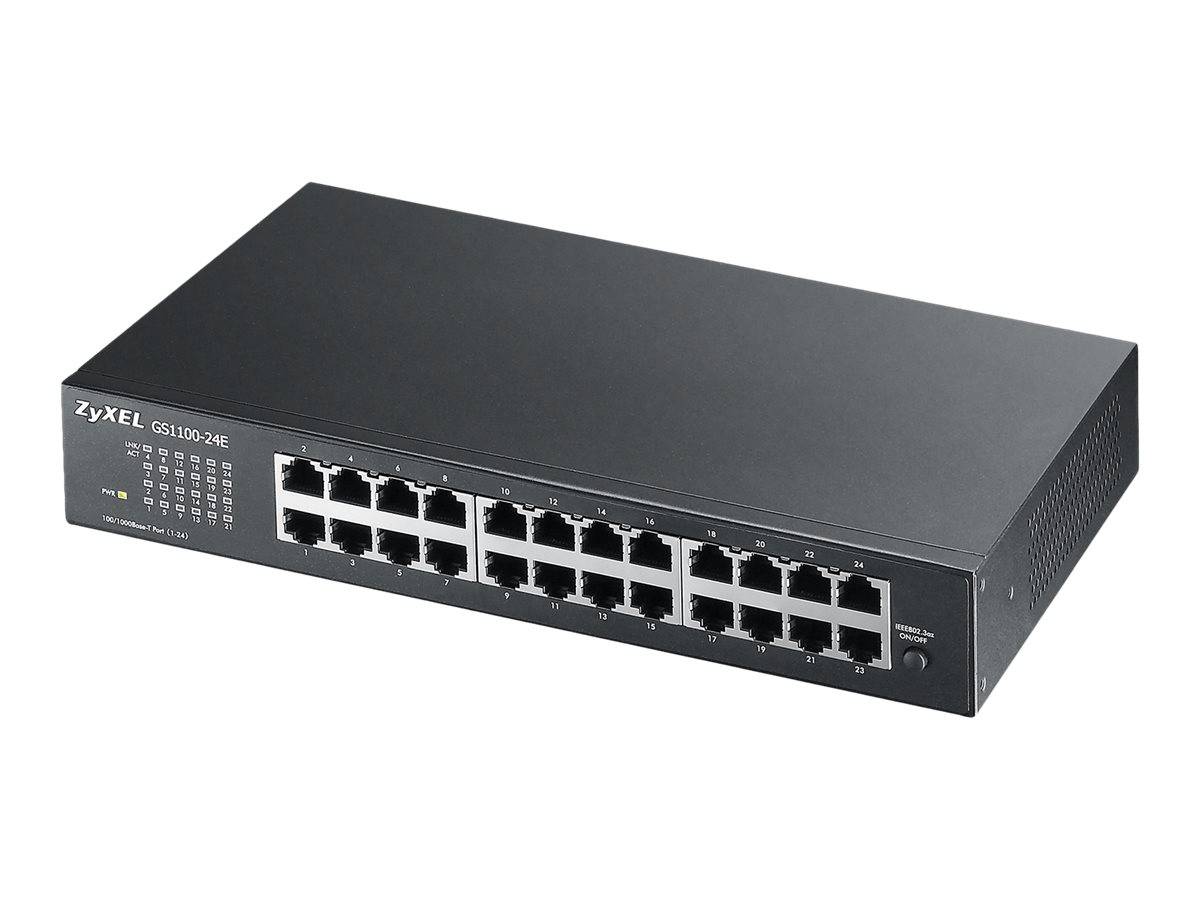

ZyXEL GS-1100-24E - switch - unmanaged - 24 x 10/100/1000

Environment-conscious networking
The GS1100 series offers not only Gigabit Ethernet network access for applications in next-generation networks, but also power-saving functions for better energy efficiency. Since the transmission power can be adapted dynamically depending upon the traffic, active connections and cable length, the GS1100 series reduces power consumption and WAS leads to lower operating costs.

Detection of power consumption – with IEEE Energy-Efficient Ethernet (EEE)
The function IEEE 802.3az Energy Efficient Ethernet (EEE) detects the volume of traffic in the network automatically and adjusts the power consumption dynamically. This enables the switch to reduce power consumption in periods of low connection load. The GS1100 series has an on/off switch for IEEE 802.3az. In this way, the power consumption can be reduced further. With this switch the users can activate the environment-friendly Energy Efficient Ethernet mode, only by pressing a button, or get the best performance without negative effects on the transmission.

Detection of inactive connections
Detection of inactive connections automatically reduces power consumption as soon as a shut down network device or an inactive connection is detected. The GS1100 series from ZyXEL can adjust the power consumption according to the connection status and number of active network devices.

Detection of the cable length
With this environmentally friendly feature, the switch can automatically detect the length of the connected Ethernet cable and adjust the power consumption accordingly. The shorter the Ethernet cable, the lower the energy consumption.

Design without fan
The fan-less design of all models of the GS1100 series enables a noiseless operation in small or quiet office environments. The GS1100-8HP and the PoE model GS1100-10HP are specially designed with an external power supply so that no additional fan is required for cooling the device. It is therefore perfectly suited for low-noise PoE implementations.

Gigabit connection on desktop computer
The GS1100 series from ZyXEL gives small offices gigabit network access with 8/10/16/24 ports at a very competitive price. In addition, the GS1100-24 and GS1100-10HP models are equipped with two additional SFP slots and two speeds (100 M and GbE) that enable fiber optic connections to be used over long distances. With Gigabit network performance and high economic viability, the GS1100 series is the ideal solution for bandwidth-intensive applications such as transmission of high resolution images, video/audio streaming and server farm connections.

This text is machine translated.
