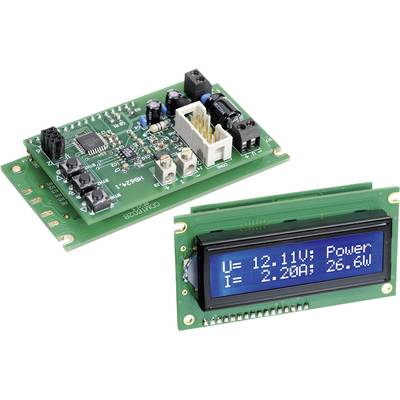

H-Tronic LM 800 Power meter Component 9 V DC, 12 V DC
EAN:
Part number:
Item no:
Total (€ 60.50 / piece)
€ 78.14
-23 %
€ 60.50
plus VAT.
Highlights & Details
H-Tronic LM 800 Power meter Component 9 V DC, 12 V DC
- Current, voltage and power - always in sight
- Measuring voltage 0 - 40 V
- Current measuring range -20 to +20 A
Technical specifications
- Input impedance: 90kΩ
- Resolution: Voltage 10 mV, current 50 mA
- Tolerance: Voltage ±0.1 %, Current ±1 %
- Power Display: 0 - 800 W
- 0.1 W graduation
- Current consumption
35 mA
- Reading range
0 - 40 V/DC/-20 - +20 A (20 - 0 - +20 A)
- Version
Component
- Dim
(W x H x D) 84 x 44 x 28 mm
- Depth
28 mm
- Height
44 mm
- Width
84 mm
- Operating voltage
9 V DC
12 V DC
- Product type
Power meter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 190753 H-Tronic LM 800 Power meter Component 9 V DC, 12 V DC
Information
Information 190753 H-Tronic LM 800 Power meter Component 9 V DC, 12 V DC
Description
This power measurement module can be used in many different applications. It shows on a blue illuminated, two-line LC-display the measured values for current, voltage and power at the same time. The current measurement is done galvanically separated. Current values in the range of –20 to +20 A can be measured. The panel meter is thus suitable for use in power supply units, chargers and solar plants, especially for testing for the electric-flight but also for ship models, model cars and other electric drives or direct current consumers. The determination of for the successful operation or for the optimization of flying and driving behavior or other dc motors information required by this powerful and at the same time handy device is simplified. The device is connected between the rechargeable battery and motor controller/Controller and measures dc voltage and direct current of the drive. From the data thus obtained, the current input power of the drive in watts is calculated.
This text is machine translated.
