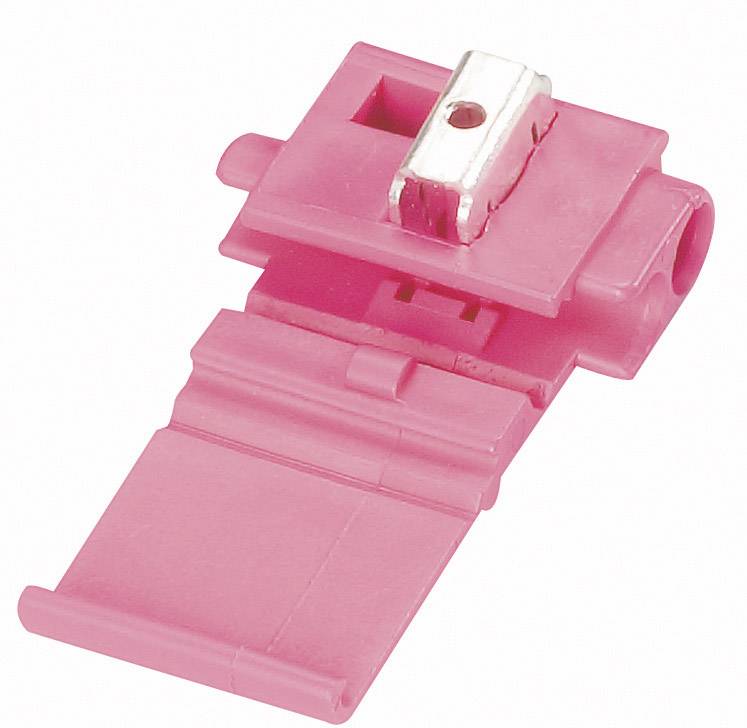

3M 558S Low power connector flexible: 0.5- fixed: 0.5-1.5 mm² Number of pins: 2 1 pc(s) Red
Packaging type
Piece
Product type
Low power connector
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.79 / piece)
€ 1.79
incl. VAT
14-day return policy included
Highlights & Details
3M 558S Low power connector flexible: 0.5- fixed: 0.5-1.5 mm² Number of pins: 2 1 pc(s) Red
- For single and multi-wire cable
- Connect "without" skinning
Technical specifications
- Packaging type
Piece
- Product type
Low power connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Number of pins
2
- Factory colour
Red
- Content
1 pc(s)
- Manufacturer part #
558S
- Connection
Cut & Clip
- Nominal voltage
600 V AC
- Temperature range
Up to 105 °C
- Type
Connector + branch
- Nominal voltage (details)
600 V AC
- Type
558
- Cross section
0,5 - 1,5 mm²
- Pins
2
- Connection
IDC method
Documents & Downloads
Datasheet
Datasheet 540959 3M 558S Low power connector flexible: 0.5- fixed: 0.5-1.5 mm² Number of pins: 2 1 pc(s) Red
User & Safety Instructions
User & Safety Instructions 540959 3M 558S Low power connector flexible: 0.5- fixed: 0.5-1.5 mm² Number of pins: 2 1 pc(s) Red
Information
Information 540959 3M 558S Low power connector flexible: 0.5- fixed: 0.5-1.5 mm² Number of pins: 2 1 pc(s) Red
Description
Scotchlok™ connector is suitable for the connection of single or multi-wire conductors as continuous or branching connection with a cross-section range from 0.4 - 4 mm² even on uncut conductors, in circuit installations, control and measuring technology, in car electronics and in installation of switch systems. Insert the conductor that is to be connected without removing the insulation; by lightly pressing the Scotchlok™ pliers type E-9BM the wire insulation is automatically removed.
