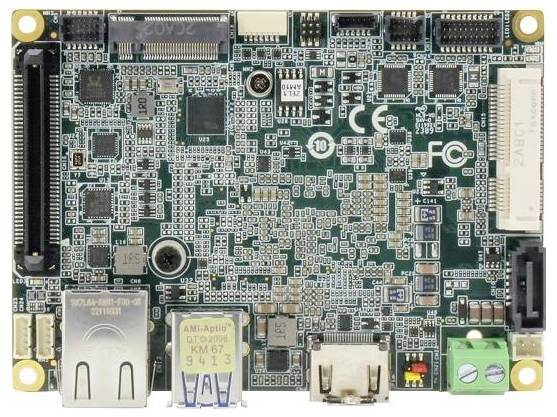

Aaeon PICO-EHL1-A10-0002 32 GB 4 x
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 405.00 / piece)
€ 405.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Concurrent Displays: 2
- Other Features: DI/O x4, SMBUS, 4-pin fan connector
- Microarchitecture: Elkhart Lake
- Power Supply: Mating Connector: Terminal Block, 2-Pin
- Base Power (TDP): 10 W
- RAM: Slots: SODIMM (DDR4 3200 max. 32 GB)
- Expansion Slots: mPCIe: fullsize *1
- Expansion Slots: Others: BIO (Optional)
- Storage: 2,5“ SSD Interface: 1 (SATA)
- Storage: mSATA Slot: fullsize *1
- Storage: M.2 Slot: 2242 B Key (PCIe 3.0 [x2])
- Display Interfaces: Int.: LVDS 24bit 2Ch
- Product type
SBC
- Processor cores (No.)
4 x
32 GB
- Memory type
DDR4
- Internal ports
M.2
- External ports
Screw terminal
- Output voltage
12 V DC
- Engineering Series Name
PICO-EHL1
- Cooling
Passive
- Operating voltage
12 V DC
- CPU turbo clock speed (max.)
2.6 GHz
- CPU
Intel Celeron J6412
- CPU speed
2 GHz
- Interfaces
GbE, USB 3.2 Gen 2x1 x2, USB 2.0 x2, RS-232/422/485 x2, Optional, , , HDMI
- Max. temperature
+60 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3639390 Aaeon PICO-EHL1-A10-0002 32 GB 4 x
User & Safety Instructions
User & Safety Instructions 3639390 Aaeon PICO-EHL1-A10-0002 32 GB 4 x
Description
PICO-EHL1-A10-0002 ;Pico-ITX, Intel Celeron J6412, SODIMM (DDR4 3200 max. 32 GB), 12 VDC, 0...+60°C, Fanless
