Banana PI Banana Pi F3 Banana Pi F3 4 GB 8 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Technical specifications
- Spacemit K1 8-core RISC-V chip
- PCIe 2.1 2lane * 2.
- PCIe B 2lane connect M.2 KEY M (support JMB582 Expansion Card to SATA)
- PCIe C 1lane connect MINI PCIe
- Power and status LED
- USB TYPE-C 12 V / 3A
- 4x USB 3.0 type-A HOST, 1x USB 2.0 type C OTG
- Loudspeaker, microphone, headphone jack
- 1x HDMI digital audio output (HDMI1.4, up to 1080p@60fps)
- 2x GbE Ethernet port (supports PoE with additional PoE-HAS)
- MicroSD card slot (more than 256 MB)
- 16G eMMC flash
- Product type
SBC
- Type
Banana Pi F3
- Processor cores (No.)
8 x
4 GB
- Memory type
DDR4
- Memory capacity
16 GB
- Internal ports
micro SD
LAN (10/100/1000)
HDMI™
3.5 mm jack
CSI (camera)
USB 3.0
USB-C® (current)
GPIO (26-pin)
M.2
- Wi-Fi
b/g/n/ac
- Bluetooth
4.2
- Power supply (LOV)
via USB
- Length
100 mm
- Width
148 mm
Documents & Downloads
Datasheet
Datasheet 3203140 Banana PI Banana Pi F3 Banana Pi F3 4 GB 8 x
User & Safety Instructions
User & Safety Instructions 3203140 Banana PI Banana Pi F3 Banana Pi F3 4 GB 8 x
Description

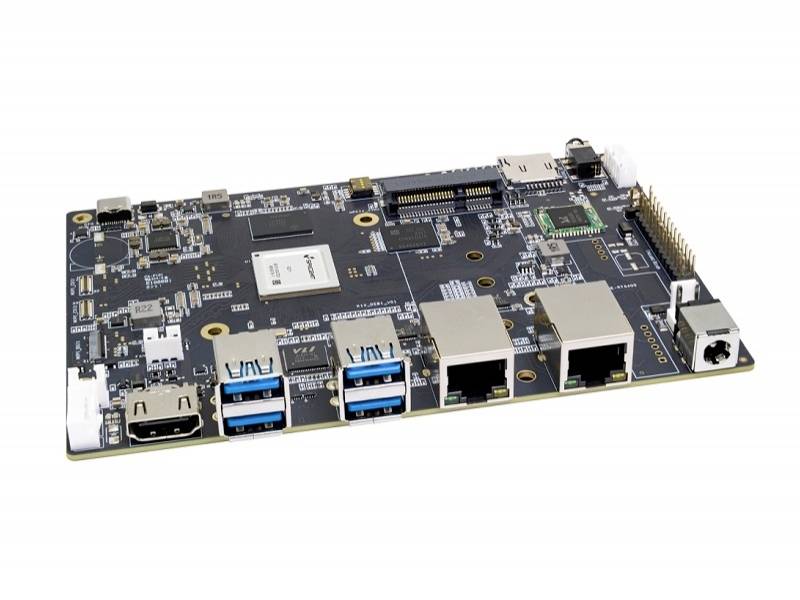

The Banana PI F3 is an advanced single-board computer which is characterized by its versatility and performance. This model is based on the innovative RISC-V architecture and is driven by a Spacewith K1 SoC with eight cores. The BPI-F3 offers a wide range of connectivity options, including four USB 3.0 ports and options for expansion cards via PCIe, as well as an M.2 Key M slot. Two Gigabit Ethernet ports are available for network connectivity, supplemented by Wi-Fi and Bluetooth. A special feature is the option to use a SIM card for mobile data connections, WAS which makes the BPI-F3 an ideal choice for IoT projects. In addition, an HDMI 1.4-output is present and a 26-pin multi-pin connector for external sensors and actors extends its functionality.
This text is machine translated.
This text is machine translated.
Features
- Spacemit K1 8-core RISC-V chip
- 2.4G/5G Wi-Fi and Bluetooth 4.2
- 16G eMMC flash
- MIPI-CSI, Dual-shot support
- 4x USB 3.0 type-A HOST, 1x USB 2.0 type C OTG
- M.2
Scope of delivery
- Banana PI F3
