Banana PI Banana Pi BPI-R2 2 GB 4 x 2 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 6 Piece(s) available
Highlights & Details

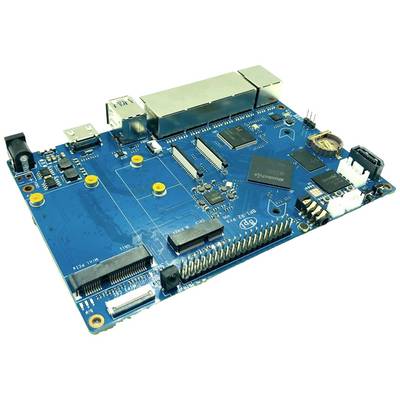

Banana Pi R2-PRO, single board computer for router development ( 5x 10/100/1000 Mbits/s)
- Rockchip RK 3568 4-core CPU (4x2 GHZ)2GB RAM, 16GB eMMC flash memory5x 10/100/1000 Mbits/s1x HDMI, 2x DSI40 pin GPIOIR receiverRTCpower, offcuts, submarine buttonsCompatible operating systems: Linux, Andoid and others
Technical specifications
- GPU: Mali G52Memory: 16 GB on Board eMMC Flash Micro SD Card Slot SATA 3.0 Port SPI FlashAdditional functions:power, reset, submarine button, 40 pin GPIO pin strip, IR receiver, RTC, microphone, fan connectionPower supply: 12 V 2 A barrel connector micro USB OTGOperating systems: Linux (e.g. ubuntu 21.04, OpenWRT, Debian), Android (e.g. Android 11)
- Product type
Routerboard computer
- Type
Banana Pi BPI-R2
- Processor cores (No.)
4 x
- GPU
Mali G52
2 GB
- Clock speed
2 GHz
- Operating system (Version)
w/o OS
- External ports
5x LAN (10/100/1000)
2x USB 3.0
HDMI™
micro USB (data)
CSI (camera)
M.2
- Power supply (LOV)
via USB
+ 12mm/21 connector
- Length
100.50 mm
- Width
148 mm
Documents & Downloads
Datasheet
Datasheet 2632681 Banana PI Banana Pi BPI-R2 2 GB 4 x 2 GHz
User & Safety Instructions
User & Safety Instructions 2632681 Banana PI Banana Pi BPI-R2 2 GB 4 x 2 GHz
Description
The R2 Pro is the next generation of banana PI intelligent router development board. It is powered by a Rockchip RK 3568 4-core processor. In addition to 5 GBit Ethernet ports, the board has numerous other connections for good expandability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- banana PI R2 Pro board
