Name: Akyga AK-PD-07 AK-PD-07 PSU
Brand: Akyga
SKU: 3841244
Availability: InStock

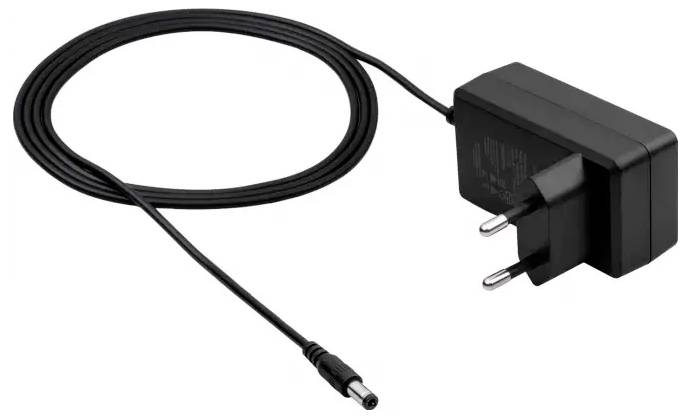

Black power adapter with European plug and barrel connector cable on a white background

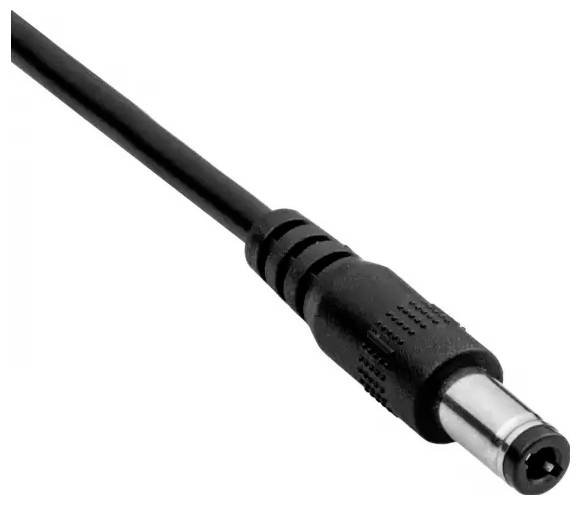

Close-up of a black DC power connector plug on a cable, with a cylindrical metal tip.

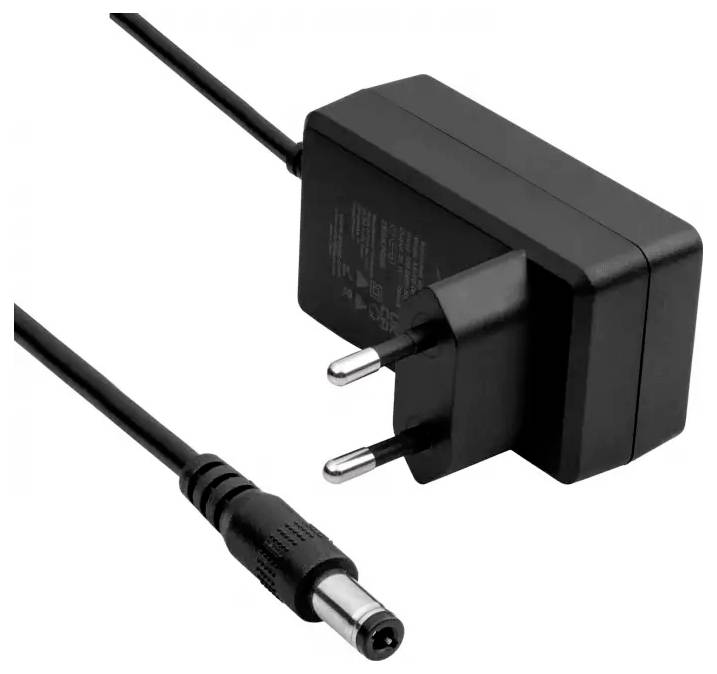

Black wall power adapter with two-prong plug and barrel connector cable.

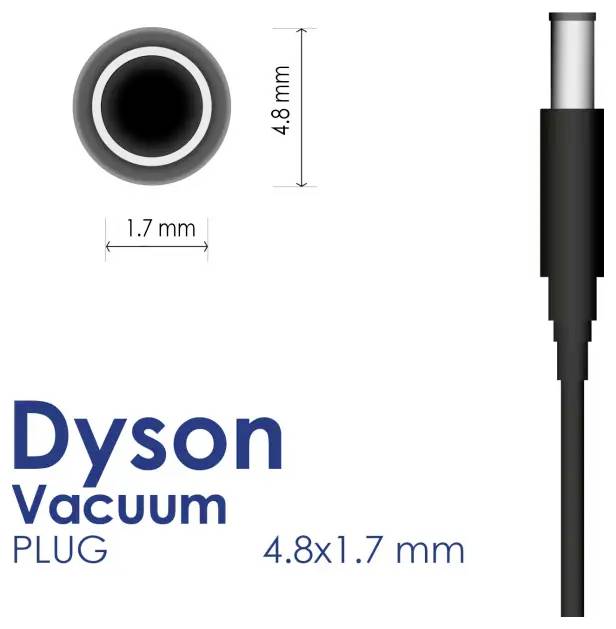

Dyson vacuum plug adapter labeled '4.8x1.7 mm', with a connector end shown and dimensions 4.8 mm and 1.7 mm.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Power input < 0.6 A.
Power supply 4.8 x 1.7 mm
Pin length 12 mm
Earthing: Without (II protection class)
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
Manufacturing material: ABS
MTBF: 100000 h

Product type: PSU

Compatible with (details): dyson models V10, V11 and V15

Content: 1 pc(s)

Cable length: 1.8 m

Factory colour: Black

Nominal voltage: 240 V AC

Output voltage: 30.45 V

: 33.49 W

Current limitation: 1.1 A

Max. temperature: 50 °C

Min. temperature: 5 °C

Weight: 156 g

Documents & Downloads

Datasheet

Datasheet 3841244 Akyga AK-PD-07 AK-PD-07 PSU

User & Safety Instructions

User & Safety Instructions 3841244 Akyga AK-PD-07 AK-PD-07 PSU

Description

The Akyga® AK-PD-07 charger allows you to charge dyson cordless vacuum cleaners. It is an excellent alternative to damaged or lost power supplies. This means that you can still use your vacuum cleaner even when you no longer have the original charger. This model was developed for the dyson models V10, V11 and V15 which require a precisely tuned voltage and current.

The Akyga® AK-PD-07 power supply provides a stable voltage of 30.45 V and a current of 1.1 A. These specifications meet the requirements of the selected dyson models V10, V11 and V15 and are essential for effective charging. The correct output voltage helps keep the vacuum cleaner's battery in good condition and reduces the risks associated with using an inappropriate power source.

The dyson AK-PD-07 vacuum cleaner charger is not a universal accessory. Depending on the generation of the device, voltage, current, battery type and plug may vary. Therefore, the charger should only be used with compatible versions of the dyson vacuum cleaner.

The charger has a 4.8 × 1.7 mm plug, which fits perfectly with the specified dyson vacuum cleaner models V10, V11 and V15. A suitable plug allows you to safely connect the charger to your vacuum cleaner and start charging without the need for additional adapters. However, please note that the appearance of the plug alone does not guarantee compatibility with a specific model.

When choosing a charger for your vacuum cleaner, you should not rely solely on the appearance of the connector. The most important factors are voltage, current, connector type, part number and vacuum cleaner model. A charger for the dyson V10 or V11 typically operates with a voltage of 30.45 V and a maximum current of 1.1 A. These values correspond to the specifications of the Akyga® AK-PD-07 model.

A damaged cable, a defective plug or a fault in the electronics of the power supply unit can lead to the vacuum cleaner no longer being able to be charged. In such situations, the Akyga® AK-PD-07 is an excellent alternative to defective or lost power supplies. With this power supply you can use your vacuum cleaner again.

This text is machine translated.
