Name: Akyga LP293441 Battery pack x Non-standard rechargeable LiPo 3.7 V 400 mAh
Brand: Akyga
SKU: 3385834
Availability: InStock

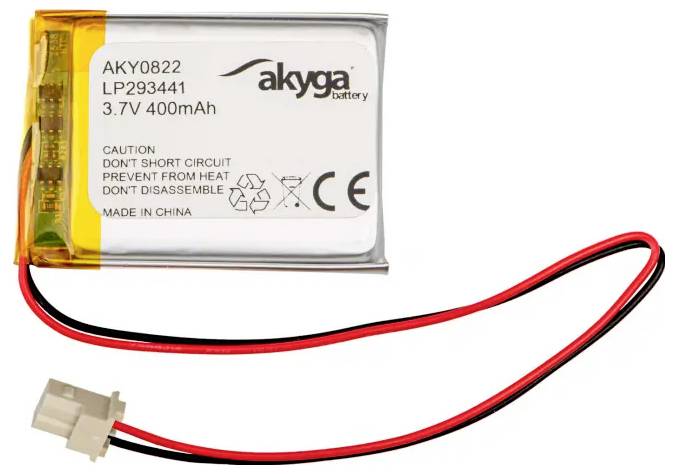

A Lithium Polymer battery by Akyga with 3.7V and 400mAh. Warning notices: 'Avoid short circuit' and 'Protect from heat'.

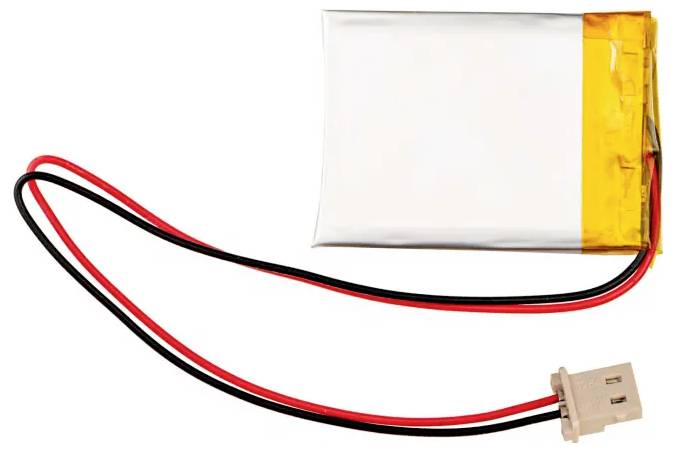

A flat, rectangular battery with a red and black cable, connected to a small white plug.

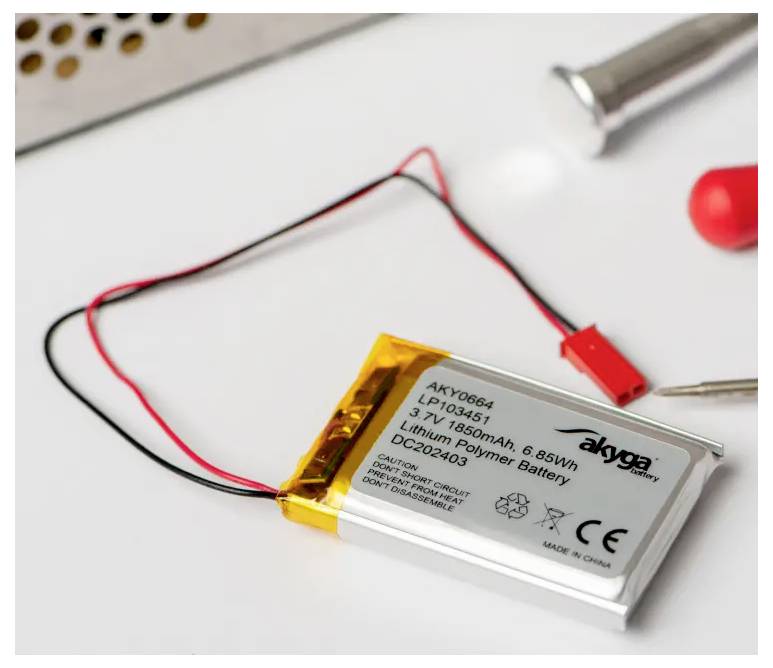

'Thinner lithium-polymer battery with technical specifications on the label, connected with red and black cables.'

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.49 / piece)

€ 9.49

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP293441
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 400 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length 41 mm.
Width 34 mm
Height: 2.9 mm
Net weight: 8.78 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 400 mAh

Technology: LiPo

Length: 41 mm

Width: 34 mm

Height: 2.9 mm

Weight: 8.78 g

Content: 1 pc(s)

Manufacturer part #: AKY0822

Type: LP293441

Rechargeable: Yes

Dim: (L x W x H) 41 x 34 x 2.9 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385834 Akyga LP293441 Battery pack x Non-standard rechargeable LiPo 3.7 V 400 mAh

User & Safety Instructions

User & Safety Instructions 3385834 Akyga LP293441 Battery pack x Non-standard rechargeable LiPo 3.7 V 400 mAh

Description

The Akyga® LP293441 lithium polymer battery is a high-quality cell with a voltage of 3.7 V and a capacity of 400 mAh. Its lightweight and compact design makes it suitable for a variety of applications such as portable devices, remote-controlled models or intelligent systems. The product is characterized by its reliability, security and easy integration.

Lithium polymer technology

The Akyga® LP293441 Li-Po battery is based on lithium polymer technology that ensures high performance and long life. The accumulator is free of the memory effect so that the capacity of 400 mAh can be fully used with every charge cycle. Due to its slim design, Ideal is suitable for compact devices, where space plays an important role.

PCM protection

The battery is equipped with a PMC module (Protection Circuit Module), which guarantees protection against overloading, overcharging and short-circuit. This reliable protection ensures a long-term, trouble-free use and increases the safety of the cell and the connected devices.

Practical mounting solutions

The Li-Po battery LP293441 3.7 V Akyga® has a 150 mm long cable guide, which is completed with a 2.54 JST 2-pin plug. This design enables quick and easy integration into devices without the need for soldering. The universal plug type allows the use of the battery in a variety of applications.

Versatile usage possibilities

The Akyga® Li-Po battery LP293441 is used in many types of devices such as cameras, phones, medical devices, and in model making and remote control systems.

Environment-friendly and long-lasting lithium polymer batteries

The Akyga® AKY0822 LP293441 battery is a reusable cell that offers long-term functionality and waste prevention. Its composition is free of electrolytes and carbon-containing materials, WAS makes rechargeable battery environmentally friendly, and its low self-discharge rate allows long-term storage without loss of its properties. All this makes the battery a practical and economical solution that is consistent with the principles of sustainability.

This text is machine translated.
