Name: Akyga LP475085 Battery pack x Non-standard rechargeable LiPo 3.7 V 2500 mAh
Brand: Akyga
SKU: 3385860
Availability: InStock

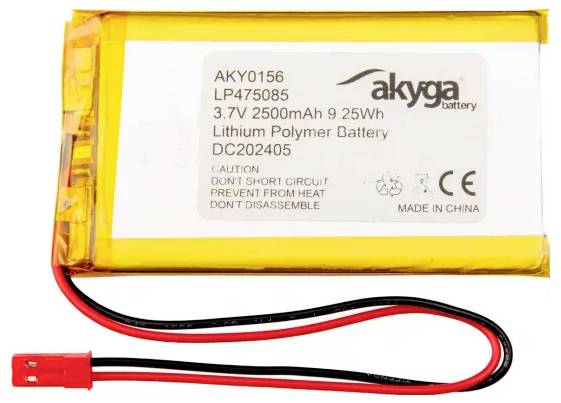

Lithium Polymer Battery by Akyga, Model Number AKY0156, 3.7V, 2500mAh. Warning Notes: Do not short-circuit, protect from heat, do not disassemble.

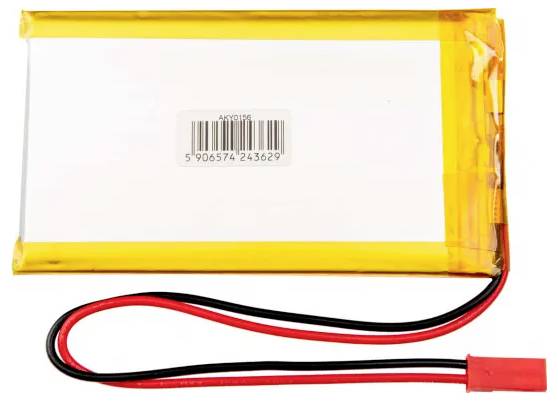

A rectangular battery with a yellow border and red and black cables. Enclosed in a plastic casing. Barcode is visible.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

21 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP475085
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 2500 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 85 mm
Width 50 mm
Height: 4.7 mm
Net weight: 44 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 2500 mAh

Technology: LiPo

Length: 85 mm

Width: 50 mm

Height: 4.7 mm

Weight: 44 g

Content: 1 pc(s)

Manufacturer part #: AKY0156

Type: LP475085

Rechargeable: Yes

Dim: (L x W x H) 85 x 50 x 4.7 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385860 Akyga LP475085 Battery pack x Non-standard rechargeable LiPo 3.7 V 2500 mAh

User & Safety Instructions

User & Safety Instructions 3385860 Akyga LP475085 Battery pack x Non-standard rechargeable LiPo 3.7 V 2500 mAh

Description

AKY0156 Protected Li-Po batteries are an advanced power source for a wide range of applications. They have a capacity of 2500 mAh and a nominal voltage of 3.7 V. The technology used enables to obtain a small battery size without restricting the freedom in selecting the capacity. For this reason, Akyga Ideal lithium polymer batteries are suitable for supplying power to all types of portable devices of different sizes and shapes. In addition, the used PCM protection protects the batteries from overcharging, excessive discharge and short circuit, and the connected 150 mm long cable, which is closed with a 2-pin JST plug, facilitate the installation.

Before you install, familiarize yourself with the rules for using lithium polymer batteries. Improper use can damage them.
