Name: Akyga LP573450 Battery pack x Non-standard rechargeable LiPo 3.7 V 980 mAh
Brand: Akyga
SKU: 3385844
Availability: InStock

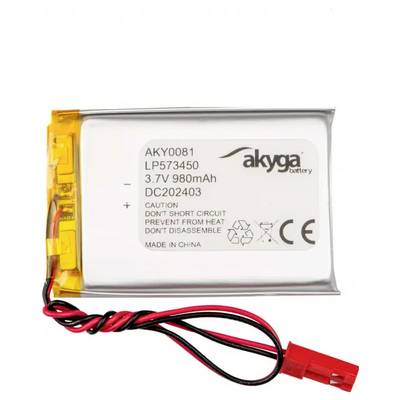

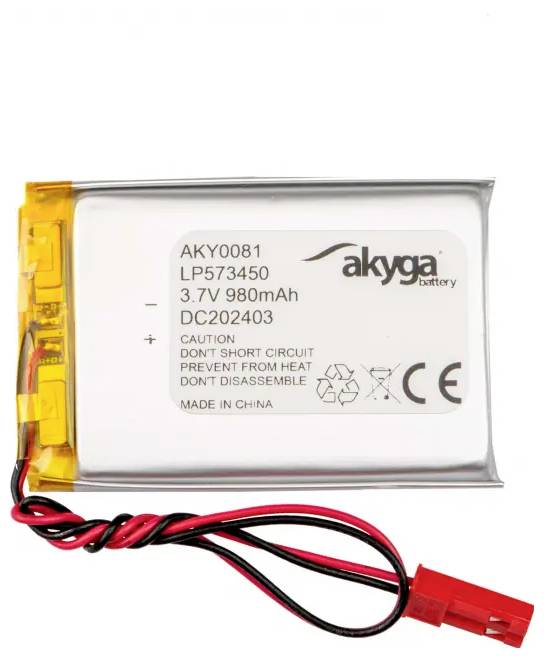

A lithium-ion battery with black and red cable. Printed label shows: '3.7V, 980mAh'. Warning notes: 'Avoid short-circuiting, protect from heat'.

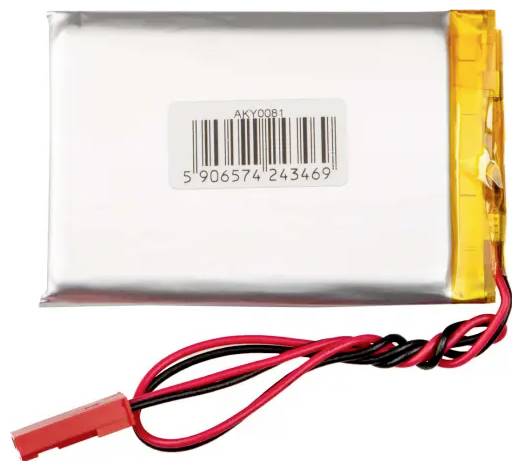

A rectangular lithium polymer battery with a barcode label and red and black connecting cables.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

32 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.49 / piece)

€ 9.49

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP573450
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 980 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 50 mm
Width 34 mm
Height: 5.7 mm
Net weight: 22 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 980 mAh

Technology: LiPo

Length: 50 mm

Width: 34 mm

Height: 5.7 mm

Weight: 22 g

Content: 1 pc(s)

Manufacturer part #: AKY0081

Type: LP573450

Rechargeable: Yes

Dim: (L x W x H) 50 x 34 x 5.7 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385844 Akyga LP573450 Battery pack x Non-standard rechargeable LiPo 3.7 V 980 mAh

User & Safety Instructions

User & Safety Instructions 3385844 Akyga LP573450 Battery pack x Non-standard rechargeable LiPo 3.7 V 980 mAh

Description

Akyga protection batteries are an advanced power source with extensive use. The rechargeable battery has a capacity of 980 mAh and a nominal voltage of 3.7 V. The technology used enables a small size of the rechargeable battery to be preserved, without restricting the freedom in selecting the capacity, why Akyga lithium polymer batteries are used Ideal to power all types of portable devices in different sizes and shapes. The PCM protection used protects the batteries from overcharging, excessive discharge and short circuit, and the 150 mm long cable connected to it, which is closed with a 2-pin JST plug, facilitate the installation.

Incorrect use of LiPo batteries can damage them. Read the instructions before assembly.
