Name: Akyga LP602158 Battery pack x Non-standard rechargeable LiPo 3.7 V 750 mAh
Brand: Akyga
SKU: 3385839
Availability: InStock

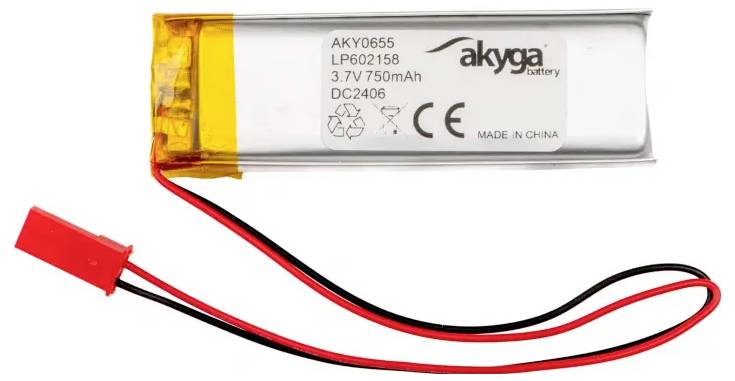

Small rectangular lithium-polymer battery with 3.7V and 750mAh. Red and black connection cables protruding.

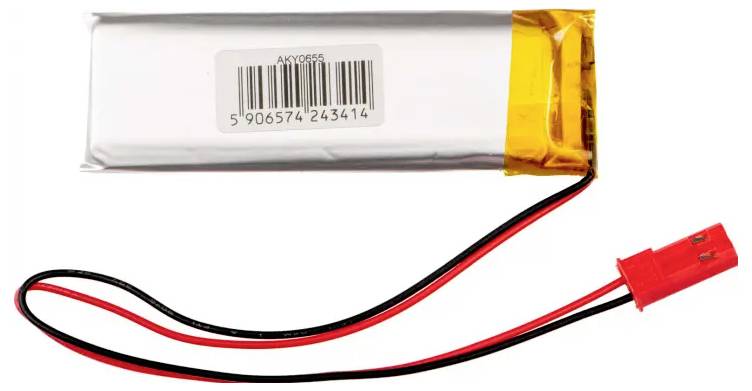

A rectangular lithium-polymer battery with a red and black cable attached, terminating in a red plug.

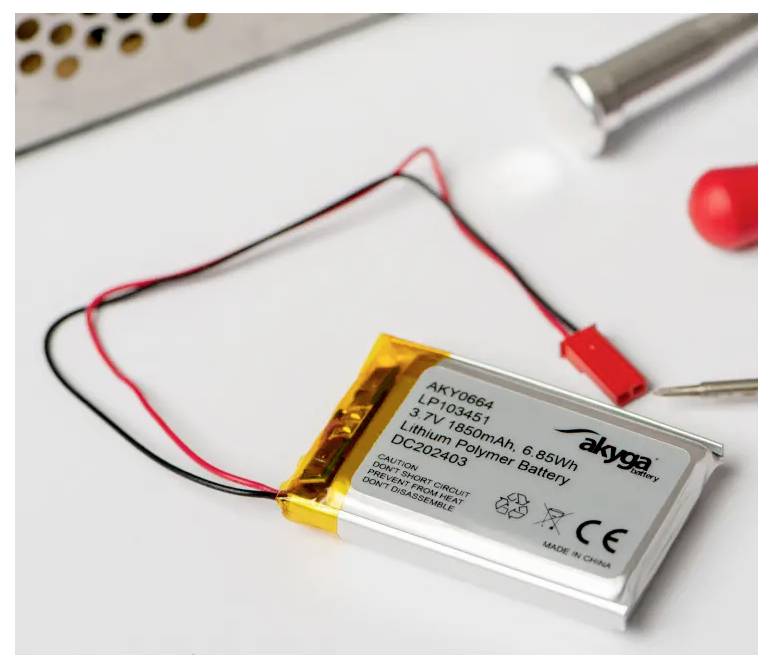

Lithium-Polymer battery with technical specifications on label, connected with wires. Blurred tools in the background.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

39 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 12.99 / piece)

€ 12.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP602128
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 750 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 58 mm
Width 21 mm
Height: 6 mm
Net weight: 15 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 750 mAh

Technology: LiPo

Length: 58 mm

Width: 21 mm

Height: 6 mm

Weight: 15 g

Content: 1 pc(s)

Manufacturer part #: AKY0655

Type: LP602158

Rechargeable: Yes

Dim: (L x W x H) 58 x 21 x 6 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385839 Akyga LP602158 Battery pack x Non-standard rechargeable LiPo 3.7 V 750 mAh

User & Safety Instructions

User & Safety Instructions 3385839 Akyga LP602158 Battery pack x Non-standard rechargeable LiPo 3.7 V 750 mAh

Description

The LP602128 lithium-polymer battery has a wide range of applications and high quality and a 750 mAh capacity and 3.7 V voltage supply. The PCM protects the battery from short circuit, excessive overcharging and discharge. By using the appropriate technology, Akyga Ideal batteries are suitable for supplying power to all types of projects by achieving significant capacity in small battery sizes. The battery has a 150 mm long cable with a 2.54 JST plug and 2 pins.

If lithium polymer batteries are not used correctly, they can be damaged. Please read the instructions before assembly.
