Name: Akyga LP623255 Battery pack x Non-standard rechargeable LiPo 3.7 V 1100 mAh
Brand: Akyga
SKU: 3385848
Availability: InStock

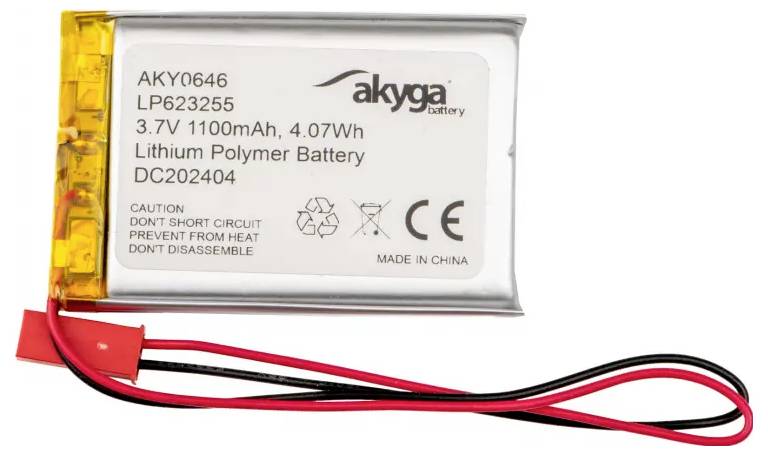

A rectangular battery with the inscription 'Lithium Polymer Battery 3.7V 1100mAh, 4.07Wh', with two cables protruding.

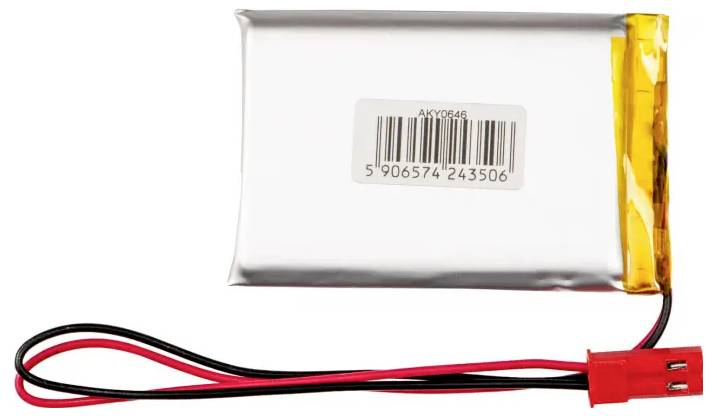

Rectangular lithium-polymer battery with a yellow stripe and red cable, featuring a connection, model number and barcode on the front.

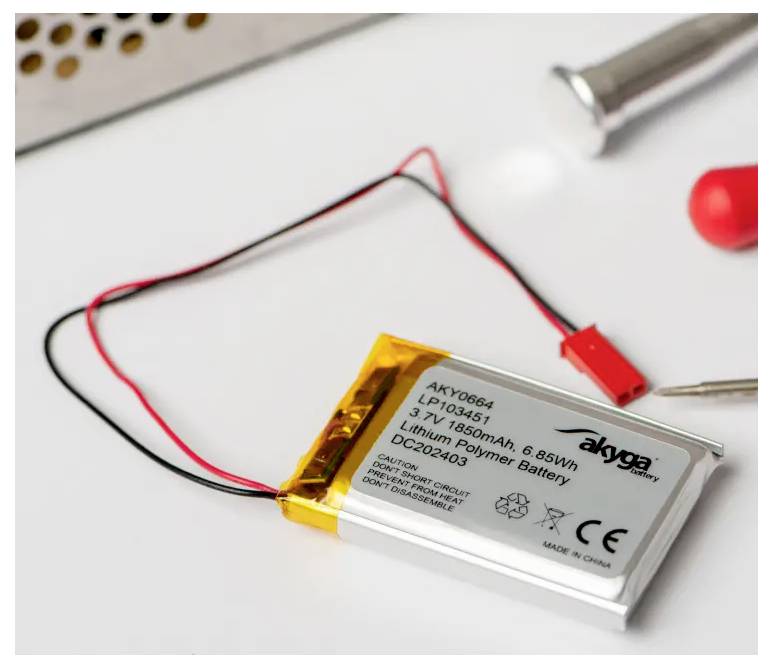

Lithium-Polymer battery with 1850mAh and 3.7V, model AXY0664, is lying on a table. Red and black wires are connected.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

63 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.49 / piece)

€ 9.49

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP623255
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity: 1100 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 55 mm
Width 32 mm
Height: 6.2 mm
Net weight: 22 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 1100 mAh

Technology: LiPo

Length: 55 mm

Width: 32 mm

Height: 6.2 mm

Weight: 22 g

Content: 1 pc(s)

Manufacturer part #: AKY0646

Type: LP623255

Rechargeable: Yes

Dim: (L x W x H) 55 x 32 x 6.2 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385848 Akyga LP623255 Battery pack x Non-standard rechargeable LiPo 3.7 V 1100 mAh

User & Safety Instructions

User & Safety Instructions 3385848 Akyga LP623255 Battery pack x Non-standard rechargeable LiPo 3.7 V 1100 mAh

Description

The lithium-polymer battery LP623255 is a power supply with a wide range of applications. It has a nominal voltage of 3.7 V and a capacity of 1100 mAh. The technology used enables you to maintain large capacities with a small battery size. For this reason, Akyga Li-Po batteries Ideal are suitable for all types of high-end projects. To simplify the installation of the battery, 150 mm long cable with 2.54 JST 2-pin plug is connected to the battery.

Read the rules for using lithium-polymer batteries before using them. Improper use can damage them.

This text is machine translated.
