Name: Akyga LP674261 Battery pack x Non-standard rechargeable LiPo 3.7 V 2000 mAh
Brand: Akyga
SKU: 3385858
Availability: InStock

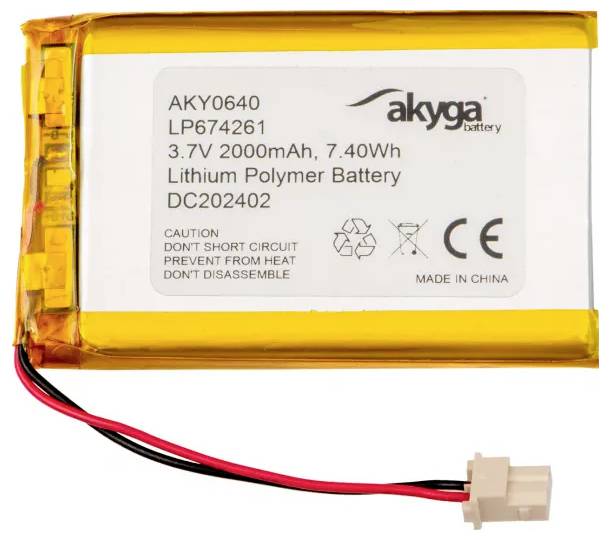

Lithium-Polymer Battery by Akyga, Model AKY0640, 3.7 V, 2000 mAh, 7.40 Wh. Warning: Do not short-circuit or dismantle the circuits.

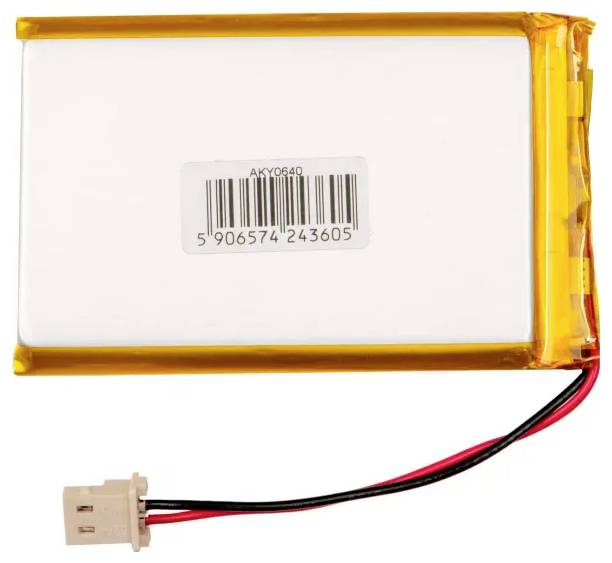

Rectangular lithium-polymer battery with a yellow and white casing. Two cables with a plug connector protruding from it.

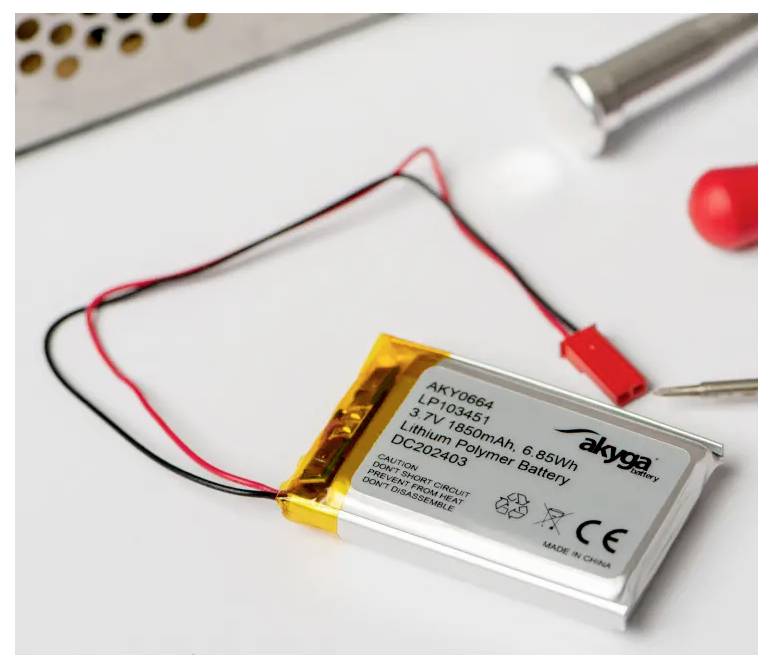

Lithium-polymer battery with red and black wire connections, lying on a table next to several tools.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

75 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP674261
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 2000 mAh
PCM fuse
Lead: Wires, connectors
Plug type Molex 5264, 2 pin
Connector part number: Molex 5264-2
Cable length: 50 mm
Length: 61 mm
Width 42 mm
Height: 6.7 mm
Net weight: 34 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 2000 mAh

Technology: LiPo

Length: 61 mm

Width: 42 mm

Height: 6.7 mm

Weight: 34 g

Content: 1 pc(s)

Manufacturer part #: AKY0640

Type: LP674261

Rechargeable: Yes

Dim: (L x W x H) 61 x 42 x 6.7 mm

Connector: Molex connector

Documents & Downloads

Datasheet

Datasheet 3385858 Akyga LP674261 Battery pack x Non-standard rechargeable LiPo 3.7 V 2000 mAh

User & Safety Instructions

User & Safety Instructions 3385858 Akyga LP674261 Battery pack x Non-standard rechargeable LiPo 3.7 V 2000 mAh

Description

The lithium-polymer battery AKY0640 is a highly efficient energy source. A PCM protection has been installed from which two 50 mm long cables come out, Molex 5264 plug, 2 pins. It has a capacity of 2000mAh at a nominal voltage of 3.7V. The PCM protection used protects the accumulator from overloading, excessive discharge and short-circuit

Improper use of the rechargeable battery can damage it. Read the rules for using lithium-polymer batteries before using them.
