Name: Akyga LP903450 Battery pack x Non-standard rechargeable LiPo 3.7 V 1600 mAh
Brand: Akyga
SKU: 3385856
Availability: InStock

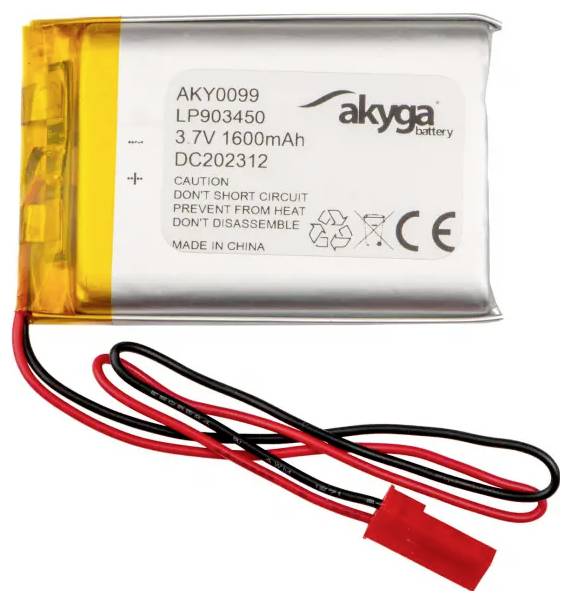

'Akyga' Lithium Polymer Battery, Model AKY0099, 3.7V, 1600mAh, from China. Warning: Do not short-circuit or disassemble.

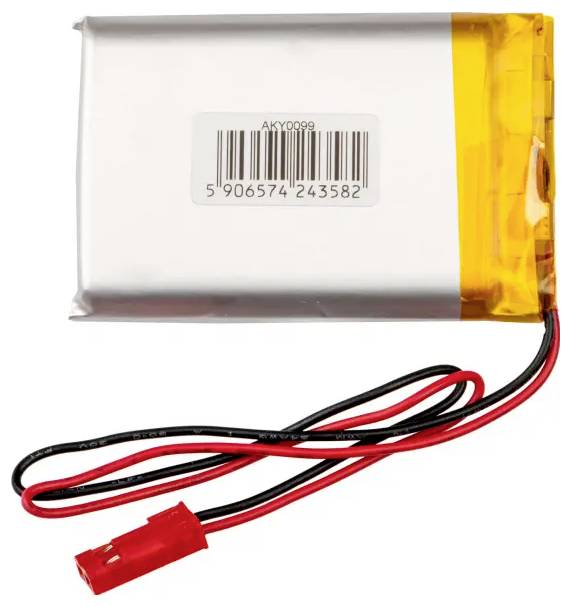

A rectangular lithium-polymer battery with yellow tape around the edge, a barcode, and red/black cables with a red connector.

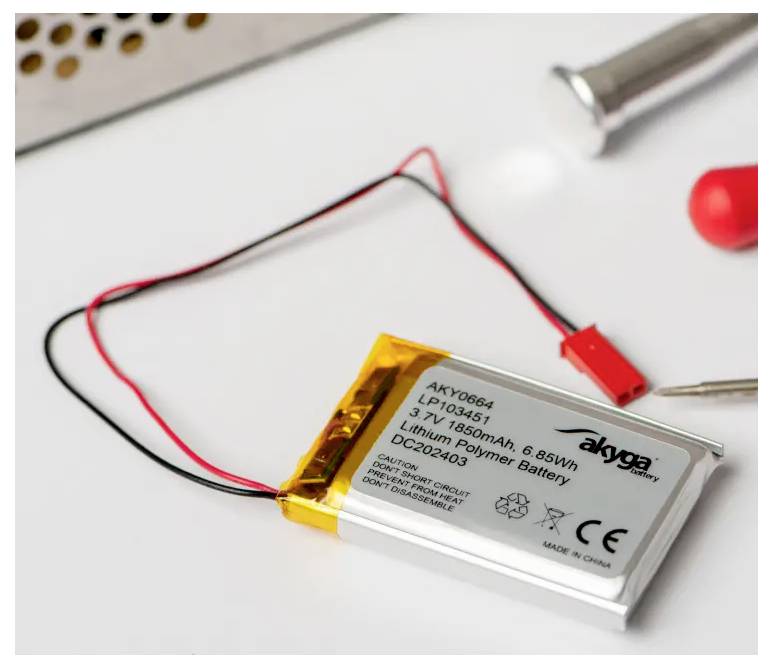

Lithium-Polymer battery, model AY0664, with a capacity of 1850mAh and voltage of 3.7V, lies on a work surface.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

29 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Manufacturer name: LP903450
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 1600 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 50 mm
Width 34 mm
Height: 9 mm
Net weight: 32 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 1600 mAh

Technology: LiPo

Length: 50 mm

Width: 34 mm

Height: 9 mm

Weight: 32 g

Content: 1 pc(s)

Manufacturer part #: AKY0099

Type: LP903450

Rechargeable: Yes

Dim: (L x W x H) 50 x 34 x 9 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385856 Akyga LP903450 Battery pack x Non-standard rechargeable LiPo 3.7 V 1600 mAh

User & Safety Instructions

User & Safety Instructions 3385856 Akyga LP903450 Battery pack x Non-standard rechargeable LiPo 3.7 V 1600 mAh

Description

The lithium-polymer battery LP903450 is a power supply with a wide range of applications. It has a nominal voltage of 3.7 V and a capacity of 1600 mAh. The technology used enables you to maintain large capacities with a small battery size. For this reason, Akyga Li-Po batteries Ideal are suitable for all types of high-end projects. To simplify the installation of the battery, connect 150 mm long cable with 2-pin JST-plug to it.

Read the rules for using lithium-polymer batteries before using them. Improper use can damage them.

This text is machine translated.
