Alpha 63250-01600/B50K APM6B50KM Single turn rotary pot Mono 0.2 W 50 kΩ 1 pc(s)

A potentiometer with a metal casing and yellow shaft, used for adjusting resistances in electronic circuits.

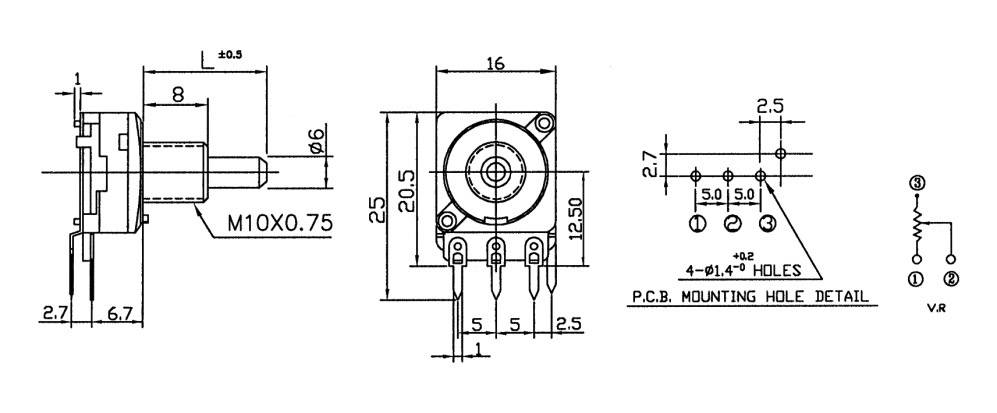

Technical drawing of a potentiometer with dimensions. Front view shows mounting holes and connections, side view with M10x0.75 thread.
1/2
Image similar
Product type
Single turn rotary pot
Resistance
50 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.2 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
23 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.99 / piece)
€ 7.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Rotary potentiometer

  • 50 kΩ
  • linear

Technical specifications

Product type

Single turn rotary pot

Resistance

50 kΩ

Resistance characteristic

linear

Output

Mono

Power rating

0.2 W

Cut-off voltage

200 V

Connection

Print

Mechanical angle

270°

Torque (max.)

2.0 Ncm

Type

Carbon film

Axle length

30 mm

Axle type

Metal

Smooth

Round

Axle Ø

6 mm

Thread size

M10

Thread length

8 mm

Min. temperature

-25 °C

Max. temperature

70 °C

Tolerance ±

20 %

Content

1 pc(s)

Type

APM6B50KM

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1697959 Alpha 63250-01600/B50K APM6B50KM Single turn rotary pot Mono 0.2 W 50 kΩ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1697959 Alpha 63250-01600/B50K APM6B50KM Single turn rotary pot Mono 0.2 W 50 kΩ 1 pc(s)

Description

Scope of delivery

  • 63250-01600/B50K.
