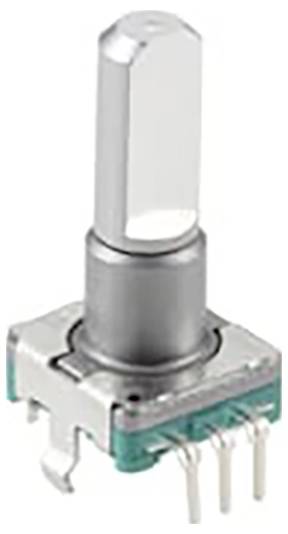

ALPS Encoder 1 pc(s) EC11E15204A3
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 3.18
15
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 3.18 / piece)
€ 15.90
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series EC11
- Contact type: SPST-NO
- Design: Vertical
- Total height 24.5 mm
- Length, socket 11.7 mm
- Width, base 11.7 mm
- Height, socket 4.5 mm
- Length, shaft 20 mm
- Diameter, Shaft 6 mm
- Axle: Metal
- Attacks: 30
- Pulse output count: 15
- Nominal voltage: 5 V
- Life: 15000 cycles
- Mechanical rotation angle 360 °
- Torque: 10 mNm
- Type
EC11E15204A3
- Orientation (connectors)
Axial
- RoHS-compliant
Yes
- Mounting type
PCB mount
- Nominal current
0.5 mA
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Insulation resistance
100 MΩ
- UKCA
yes
- Product type
Encoder
Documents & Downloads
Datasheet
Datasheet 3462865 ALPS Encoder 1 pc(s) EC11E15204A3
User & Safety Instructions
User & Safety Instructions 3462865 ALPS Encoder 1 pc(s) EC11E15204A3
Description
ALPS Encoder EC11
This text is machine translated.
This text is machine translated.
Features
- • Incremental Encoder
- • Compact design
- • Pulse output number: 15
- • Without pressure switch
