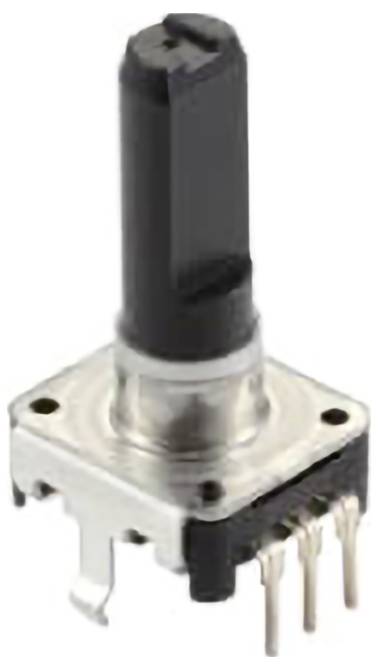

A black rotary encoder with a metal base and multiple pins, used for electronic device inputs, against a white background.

A black rotary encoder with a metal base and multiple pins, used for electronic device inputs, against a white background.

ALPS

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Fri, 11 Sep

200 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.67 / piece)

€ 1.67

plus VAT.

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series EC12
Contact type: SPST-NO
Design: Vertical
Total height 24.5 mm
Length, socket 12.4 mm
Width, base 13.2 mm
Height, socket 5 mm
Diameter, Shaft 6 mm
Axis: Plastic
Attacks: 24
Pulse output count: 24
Nominal voltage: 5 V
Insulation resistance 10 MOhm
Lifetime: 30,000 cycles
Mechanical rotation angle 360 °
Torque: 3 mNm

Type: EC12E24204A9

Orientation (connectors): Axial

RoHS-compliant: Yes

Product type: Encoder

Documents & Downloads

Datasheet

English

Datasheet 3523312 ALPS Encoder 1 pc(s) EC12E24204A9

User & Safety Instructions

User & Safety Instructions 3523312 ALPS Encoder 1 pc(s) EC12E24204A9

Description

ALPS encoder EC12

This text is machine translated.

Features

• Incremental Encoder
• Compact design
• Pulse output number: 24
• Smooth waistband
