ALPS RK09K1130A5R Carbon film pot 0.05 W 10 kΩ 1 pc(s) Piece

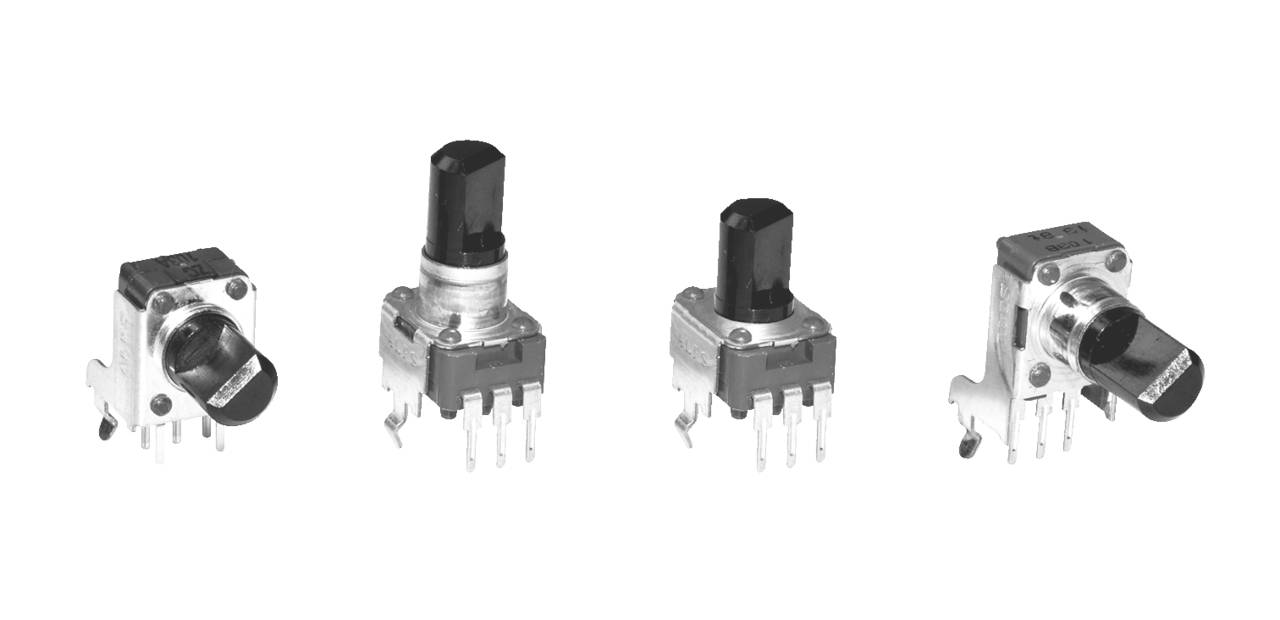

Four rotary encoder switches with black knobs and metal casings, each showing different orientations and pin layouts.
Packaging type
Piece
Product type
Carbon film pot
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.05 W
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
157 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.10527 / piece)
€ 1.11
prav.tax.untaxed incl. VAT
plus € 0.02
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

ALPS potentiometer mono V round 20mm 10K 1B

  • 10 kΩ
  • linear

Our service for you

Technical specifications

  • ESD Packaging: No ESD
  • Series: RK09
  • Design: Vertical
  • Length, socket 9.8 mm
  • Width, base 9.8 mm
  • Height, socket 6.8 mm
  • Length, shaft 20 mm
  • Diameter, Shaft 6 mm
  • Axis: Plastic
  • Central locking: Without
  • Resistance value 10 kOhm
  • Resistance unit: KOhm
  • Resistance value_1: 10
  • Resistance tolerance: ±20 %
  • Resistance curve: Linear
  • Rated output: 0.05 W
  • Max. OPERATING VOLTAGE (DC) 20 V DC
  • Max. OPERATING VOLTAGE (AC) 50 V AC
  • Insulation voltage 250 V
  • Insulation resistance 100 MOhm
  • Lifetime: 5,000 cycles
  • Mechanical rotation angle 280 °
  • Torque: 8 mNm
Packaging type

Piece

Product type

Carbon film pot

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

0.05 W

Switching voltage (max.)

50 V AC

Mechanical angle

280°

Axle length

20 mm

Axle type

Plastic

Axle Ø

6 mm

Case dimensions

9.8 mm x 9.8 mm x 6.8 mm mm

Length

9.8 mm

Width

9.8 mm

Height

6.8 mm

Tolerance ±

20 %

Insulation resistance

100 MΩ

Content

1 pc(s)

Type

RK09K1130A5R

Dim

(L x W x H) 9.8 x 9.8 x 6.8 mm

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 3527502 ALPS RK09K1130A5R Carbon film pot 0.05 W 10 kΩ 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3527502 ALPS RK09K1130A5R Carbon film pot 0.05 W 10 kΩ 1 pc(s) Piece

Description

ALPS carbon film potentiometer

This text is machine translated.

Features

  • • Compact potentiometer with 9.8 mm width
  • • Ideal for designing high density sets

Scope of delivery

  • RK09K1130A5R.
