Name: Amewi Standard servo AMXRacing AMHV2107MG Midi Analogue servo Gear box material: Metal Connector system: JR
Brand: Amewi
SKU: 3345285
Availability: InStock

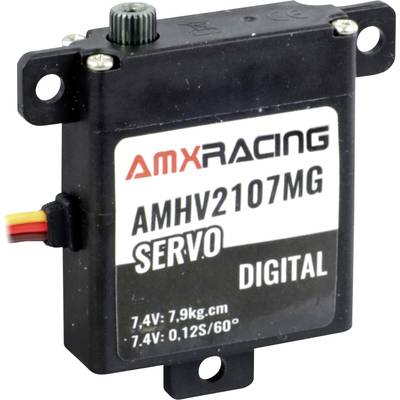

Black digital servo motor model 'AMHV2107MG' by AMX Racing. Specifications: 7.4V, 7.9kg/cm, 0.12s/60°.

Electric servo motor by AMX Racing, model AMHV2107MG, with cables and connector. Suitable for RC applications.

Box labelled 'AMX Racing AMHV2107MG MIDI SERVO'.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Dead Band: 2μs
Operating frequency 1520μs / 330Hz
Potentiometer drive: Direct drive
Operating voltage DC 4.8 V
Housing: Plastic
Operating temperature range -10 to +60°C.
Regulating speed (6V): 0,14sec/60°
Regulating speed (7.4V): 0.12sec/60°
Actuating power (6V): 6.8kg/cm
Actuating power (7.4 V): 7.9 kg/cm
Cable length 220mm
JR connection

Product type: Standard servo

Dim: (L x W x H) 30 x 10 x 35.5 mm

Length: 30 mm

Width: 10 mm

Height: 35.5 mm

Voltage: High

Weight: 21 g

Actuation time at 6 V: 0.14 s

Actuation time (7.4 V): 0.12 s

Gear box: Metal

Type of bearing: Double ball bearing

Servo technology: Analogue servo

Connector system: JR

Operating voltage: 4.8 - 7.4 V

Max. operating voltage: 7.4 V

Min. operating voltage: 4.8 V

Manufacturer part #: 28447

for brands: Amewi

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connector system

Dim

Gear box

Product type

Servo technology

Type of bearing

Voltage

Width

Amewi Standard servo AMXRacing AMHV2107MG Midi Analogue servo Gear box material: Metal Connector system: JR

Item no:3345285

Fast track dispatch on Thu 29 Oct

14 Piece(s)Conrad Electronic

This article

(L x W x H) 30 x 10 x 35.5 mm

Metal

Standard servo

Analogue servo

Double ball bearing

High

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Amewi Low Profile servo AMXRacing AM4409MG Low Profile Analogue servo Gear box material: Metal Connector system: JR

Item no:3345280

Available soon

Conrad Electronic

(L x W x H) 40.5 x 20.3 x 28 mm

Metal

Low Profile servo

Analogue servo

Double ball bearing

20.3 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

Amewi Micro servo AMXRacing 1143HB Analog Analogue servo Gear box material: Plastic

Item no:3345303

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

(L x W x H) 19.8 x 8.2 x 24.2 mm

Plastic

Micro servo

Analogue servo

Double ball bearing

8.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Amewi Micro servo AMXRacing 1181MG Midi Analogue servo Gear box material: Metal Connector system: JR

Item no:3345283

Fast track dispatch on Thu 29 Oct

23 Piece(s)Conrad Electronic

(L x W x H) 28 x 13 x 29.7 mm

Metal

Micro servo

Analogue servo

Low

13 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Amewi Micro servo AMXRacing AM1102HB Analogue servo Gear box material: Plastic Connector system: JR

Item no:3345282

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

(L x W x H) 16.3 x 8.4 x 17.5 mm

Plastic

Micro servo

Analogue servo

Low

8.4 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Amewi Micro servo AMXRacing Micro ST56MG Analogue servo

Item no:3345281

Fast track dispatch on Thu 29 Oct

15 Piece(s)Conrad Electronic

(L x W x H) 20.2 x 8.5 x 22.3 mm

Micro servo

Analogue servo

8.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Amewi Midi servo AMXRacing AM1211MG PRO Midi Digital servo Gear box material: Metal Connector system: JR

Item no:3395042

Available soon

Conrad Electronic

(L x W x H) 30 x 10 x 36 mm

Metal

Midi servo

Digital servo

Double ball bearing

High

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Amewi Midi servo AMXRacing AMHV2006MG Midi Analogue servo Gear box material: Metal Connector system: JR

Item no:3345286

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

(L x W x H) 23 x 12 x 27.6 mm

Metal

Midi servo

Analogue servo

Double ball bearing

High

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

Amewi Mini servo AMXRacing 933MG Digital Mini Digital servo Gear box material: Metal

Item no:3345304

Fast track dispatch on Thu 29 Oct

38 Piece(s)Conrad Electronic

(L x W x H) 23.2 x 12 x 30 mm

Metal

Mini servo

Digital servo

12 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Amewi Mini servo AMXRacing AMHV56MG Mini Analogue servo Gear box material: Metal Connector system: JR

Item no:3345288

Available soon

Conrad Electronic

(L x W x H) 19.8 x 8.2 x 21.5 mm

Metal

Mini servo

Analogue servo

High

8.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3345285 Amewi Standard servo AMXRacing AMHV2107MG Midi Analogue servo Gear box material: Metal Connector system: JR

Description

Flat 30 mm high-voltage surface servo for the horizontal installation - perfect for very thin surfaces e.g. suitable for gliders or other RC models, where such a design is of importance. The servo has double ball-bearing and thanks to HV-connection fast and powerful.
