APC SMT1500IC UPS 1500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 819.33 / piece)
€ 819.33
plus VAT.

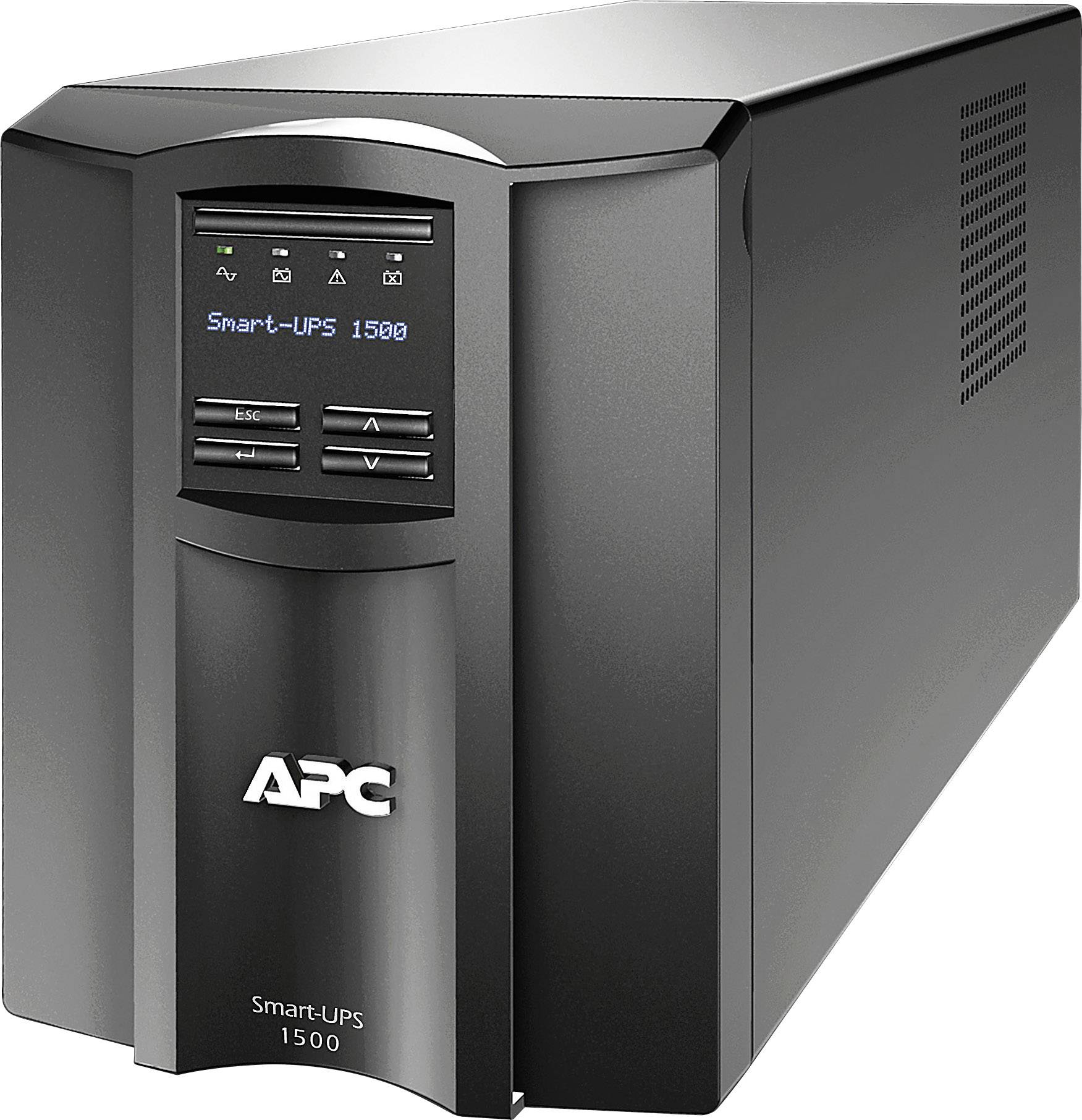

APC SMT1500IC UPS 1500 VA
Highlights & Details
- Protects connected devices against overvoltages, voltage peaks, lightning and other power disturbances
- Rated power 1500 VA
- Alpa numeric LC-display with LED status indicators
- Battery alarm
- This text is machine translated.
Technical specifications
- Product type
UPS
- Nominal power
1500 VA
- No. of outputs

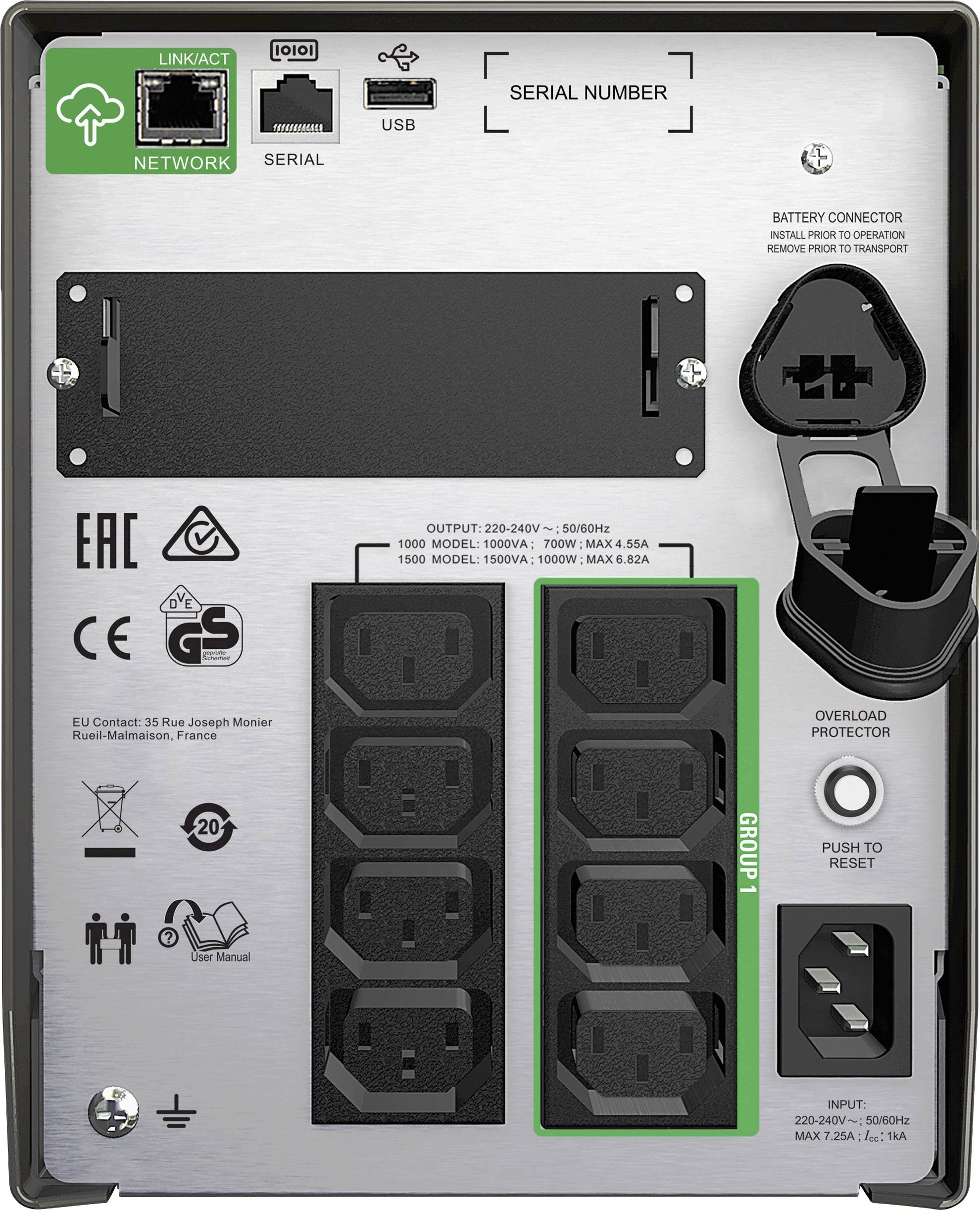

8 x
- Output
IEC C13 socket
- Features
Network port
Serial port
USB port
LCD
Alarm
- Bridging time normal load
84 min
- Bridging time, max load
7 min
- Surge protection for
Networks (RJ45)
- Type
SMT1500IC
- Width
171 mm
- Height
219 mm
- Depth
439 mm
- Weight
22.7 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1718118 APC SMT1500IC UPS 1500 VA
User & Safety Instructions
User & Safety Instructions 1718118 APC SMT1500IC UPS 1500 VA
Security datasheet
Security datasheet 1718118 APC SMT1500IC UPS 1500 VA
Description
Intelligent and efficient solution for the uninterruptible power supply of network systems, selection of the introductory class up to models with scalable autonomy time. Ideal UPS for servers, point-of-sale systems, routers, switches, hubs and other devices.
This text is machine translated.
This text is machine translated.
Features
- Supports a cold start - enables a temporary battery operation, if the power supply fails.
- Energy consumption meter indication of use in kilowatt hours for energy-conscious users.
- Approximate Running Time at 200 W: 1:24 h
- Green operating mode - patent-registered operational mode in the unused electrical components with good power supply conditions can be switched off, so that a very high operating efficiency without compromising on safety can be achieved.
- High Online efficiency - reduces the electricity costs, generates less heat.
- Intuitive LCD user interface - easy-to-read surface with precise information in multiple languages and support for the configuration of the UPS on site with user-friendly navigation buttons.
- Display of the date for the battery exchange - the dynamic display of the appointment for the recommended battery replacement in month and year facilitates the long-term planning of maintenance.
- Pure sinusoidal output signal in the battery operation - simulates mains power supply for the highest possible compatibility with servers and sensitive electronic systems with active correction of the power factor.
- Single module with switchable outputs - individual output group for separate control via the UPS-system for the targeted restart of not more responsive systems, the successive on or off of systems or the cut-off non-critical loads.
- Smart Connect - innovative, easy to use remote monitoring feature, dass Daten an automatic notifications, firmware updates, and advanced support services.
- Smart Slot Upgrade Your UPS through Management Cards with individual features.
- Charge the battery with temperature compensation - extends the life of the battery by regulating the charging voltage according to the actual battery temperature.
- LED status indicators devices and current status are by optical displays quick analysierbar.
Scope of delivery
- CD with software
- Documentation CD
- User manual
- Smart UPS signalling RS-232 cable
- USB cable.
