Name: APEM 12144-3VX778 12000X778 Serie Toggle switch 2 x On/On/On latch/momentary 1 pc(s) Piece
Brand: APEM
SKU: 3728969
Availability: InStock

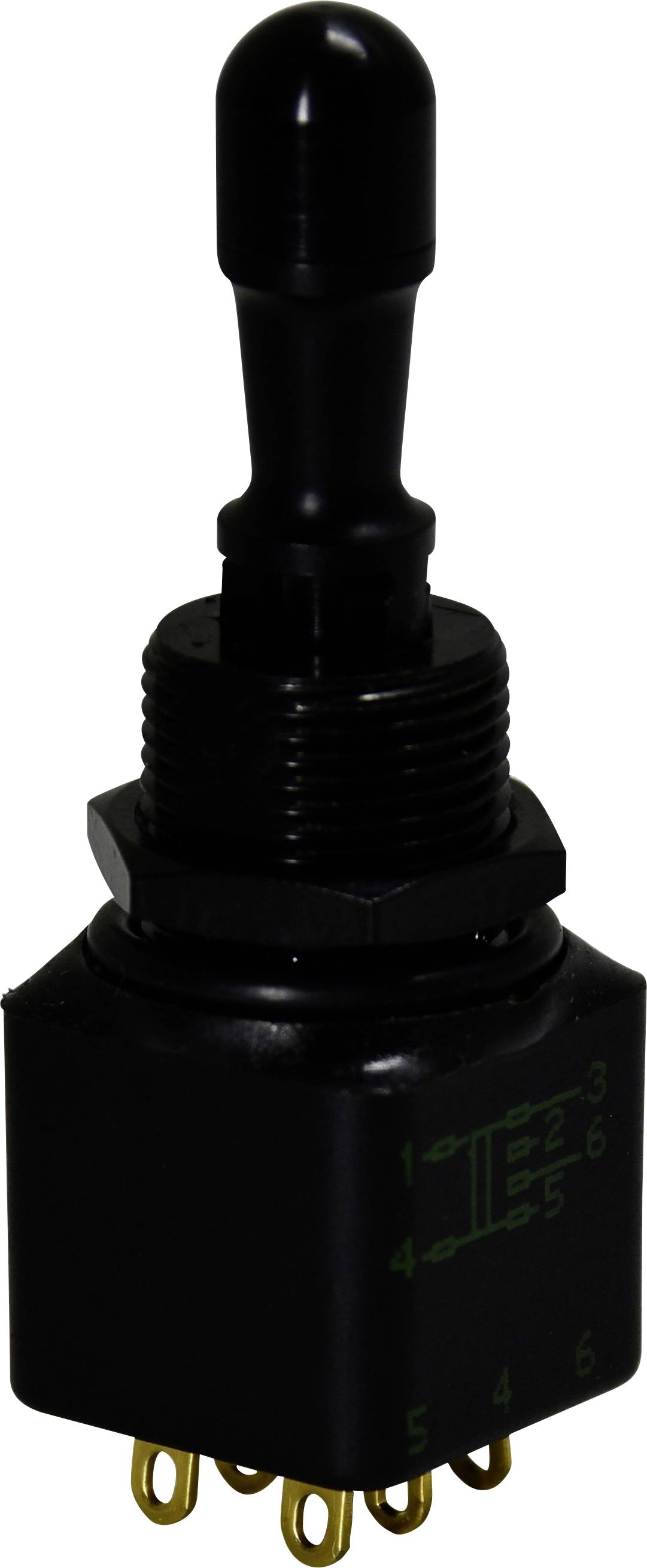

A black toggle switch with a lever and six gold contacts at the base, used for electronic circuitry.

Packaging type

Piece

Product type

Toggle switch

Switch/button features

lockable

Casing/button colour

Black

Functions

latch/momentary

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

44 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 118.03 / piece)

€ 118.03

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Panel switch

()

Our service for you

Technical specifications

Packaging type: Piece

Product type: Toggle switch

Switch/button features: lockable

Casing/button colour: Black

Functions: latch/momentary

Colour: Black

Switch position: 2 x On/On/On

Connection: Solder tag

Number of pins: 2

Contact resistance: 10mΩ max. (initial value)

Min. temperature: -40 °C

Max. temperature: 85 °C

Electrical lifespan: - At 4A 28VDC :20,000 cycles (10,000 for functions 5, 4-1R, 4-2R)
- At low voltage (50mV 10mA) :150,000 cycles (switch with 2 continuous positions)100,000 cycles (switch with 3 continuous positions)50,000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

Insulation resistance: min 1GΩ at 500VDC

Industrial packaging: Yes

RoHS-compliant: Yes

Type: 12000X778 Serie

Documents & Downloads

Datasheet

Datasheet 3728969 APEM 12144-3VX778 12000X778 Serie Toggle switch 2 x On/On/On latch/momentary 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3728969 APEM 12144-3VX778 12000X778 Serie Toggle switch 2 x On/On/On latch/momentary 1 pc(s) Piece

Description

The 12144-3VX778 panel switch has a double-poled design with multiple functions (ONE, MOM, ONE MOM) and three locked positions for improved control and security.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
