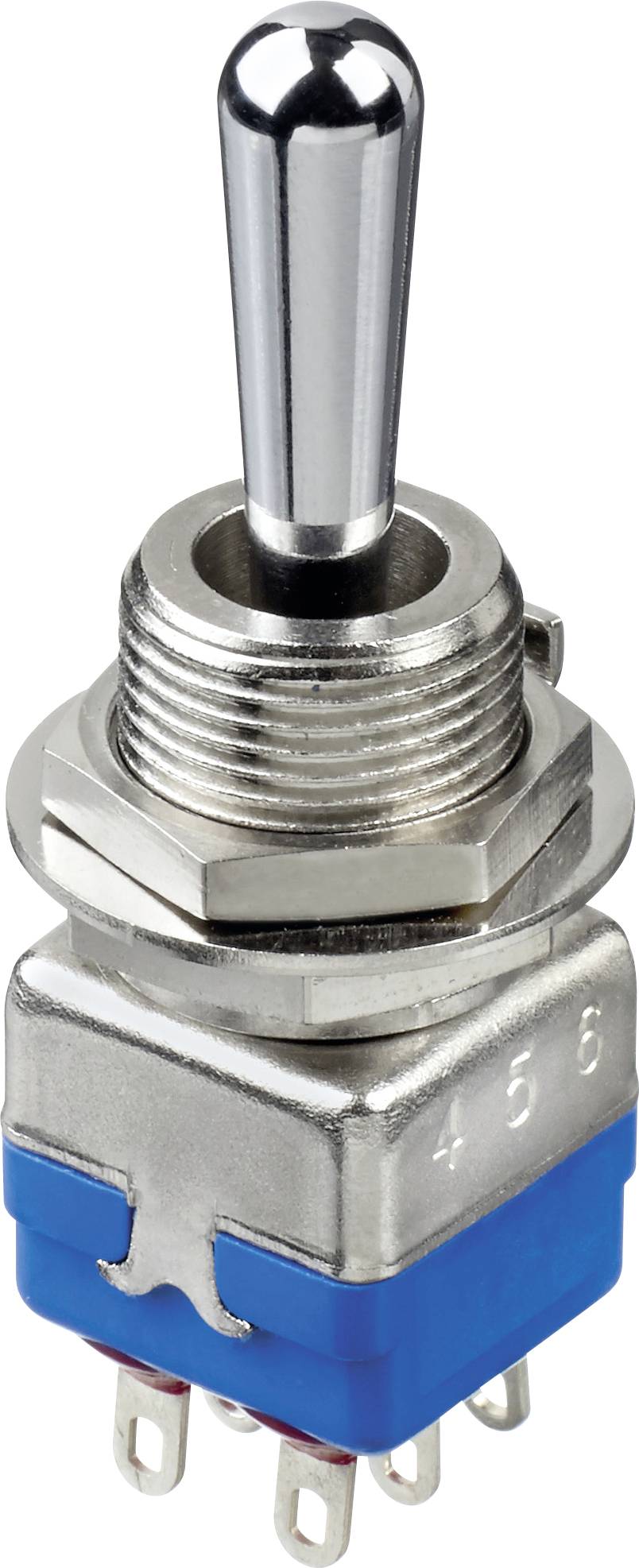

APEM 12146A 12146A Toggle switch 250 V AC 2 A 2 x On/On IP54 latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Toggle switch
Switch/button features
Steel lever
Casing/button colour
Metal
Functions
latch
Lighting type
None
Datasheet (PDF)
Number
Total (€ 38.13 / piece)
€ 38.13
plus VAT.
Highlights & Details
Series 12000 250 V/AC 2 A lever switch
- ()
Technical specifications
- Product type
Toggle switch
- Switch/button features
Steel lever
- Casing/button colour
Metal
- Functions
latch
- Lighting type
None
- Switch position
2 x On/On
- Contact material
Silver (Ag)
- Connection
Solder tag
- Number of pins
2
- Switching voltage
250 V AC
- Switching current (max.)
2 A
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Recess diameter
12 mm
- Front panel thickness
2.5 mm
IP54
- Type
12146A
- Switching voltage
250 V AC
- Switching current
2 A
- Type
12146 A
- Pins
2
- Connection
PCB Solder Pins
- Temperature range
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 701852 APEM 12146A 12146A Toggle switch 250 V AC 2 A 2 x On/On IP54 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701852 APEM 12146A 12146A Toggle switch 250 V AC 2 A 2 x On/On IP54 latch 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
