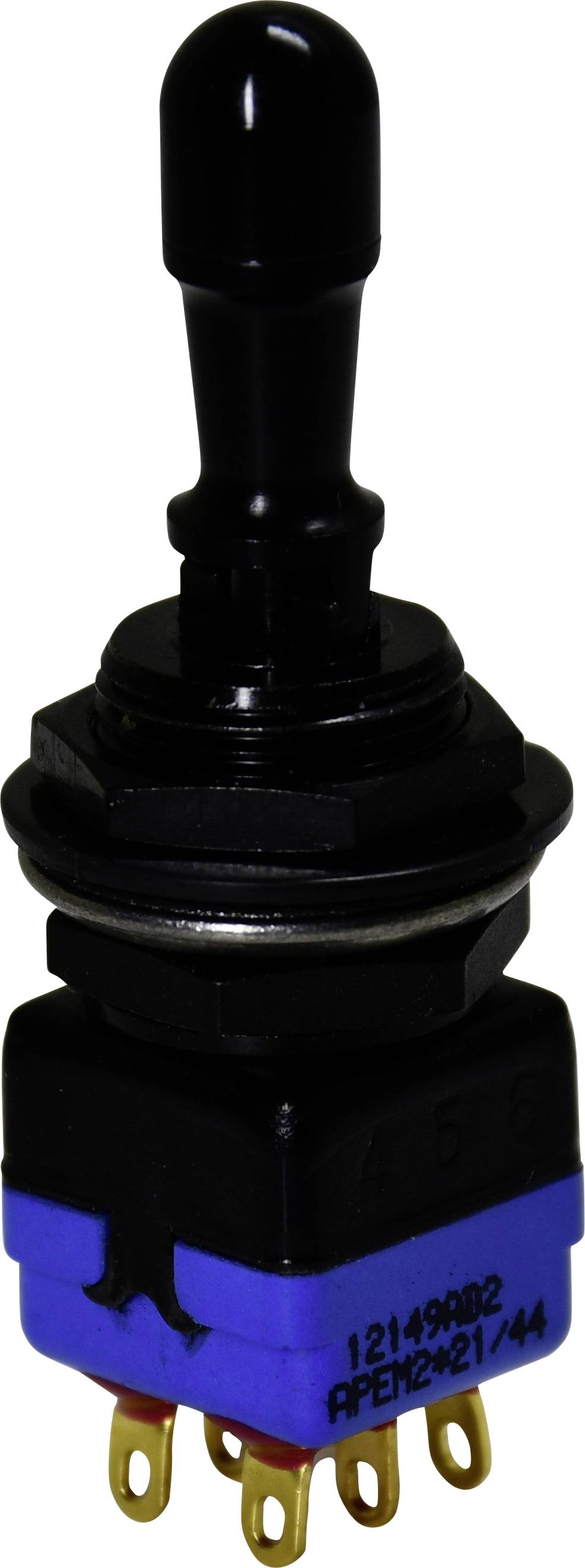

APEM 12149AD2GK-3V 12000 Serie Toggle switch 2 x On/Off/On latch/0/latch 1 pc(s)
Part number:
Item no:
Product type
Toggle switch
Switch/button features
lockable
Casing/button colour
Black
Functions
latch/0/latch
Lighting type
None
Datasheet (PDF)
Number
Total (€ 57.88 / piece)
€ 57.88
plus VAT.
Highlights & Details
Panel switch
- ()
Our service for you
Technical specifications
- Product type
Toggle switch
- Switch/button features
lockable
- Casing/button colour
Black
- Functions
latch/0/latch
- Lighting type
None
- Switch position
2 x On/Off/On
- Connection
Solder tag
- Number of pins
2
- Contact resistance
10 mΩ max. (initial value)
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Insulation resistance
1,000 MΩ min. At 500V
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Type
12000 Serie
Documents & Downloads
Datasheet
Datasheet 3728925 APEM 12149AD2GK-3V 12000 Serie Toggle switch 2 x On/Off/On latch/0/latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3728925 APEM 12149AD2GK-3V 12000 Serie Toggle switch 2 x On/Off/On latch/0/latch 1 pc(s)
Description
The 12149AD2GK-3V Panel Switch has a double pole design with 3 fixed positions for a reliable control of several circuits. Ideal for versatile electrical applications.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
