Arducam Camera unit MBS-SES-185-13
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Sensor type: Sony IMX219 color CMOS with 8 MP
- Sensor size 3.674 x 2.760 mm (1/4" format)
- Pixel size: 1.12 x 1.12 UM
- 3280 x 2464 pixels (active pixels), 3296 x 2512 pixels (total pixels)
- Lens: M12 adjustable, tele to Fisheye
- Angle of view 70° horizontal
- Image resolution 3280 x 2464 pixels
- Video resolution 1080p30, 720p60, 640 x 480p90
- No integrated IR filter
- Board size 36 x 36 mm
- Peak current: 300 mA;
- Product type
Camera unit
- Length
36 mm
- Width
36 mm
- Manufacturer part #
MBS-SES-185-13
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205033 Arducam Camera unit MBS-SES-185-13
Description

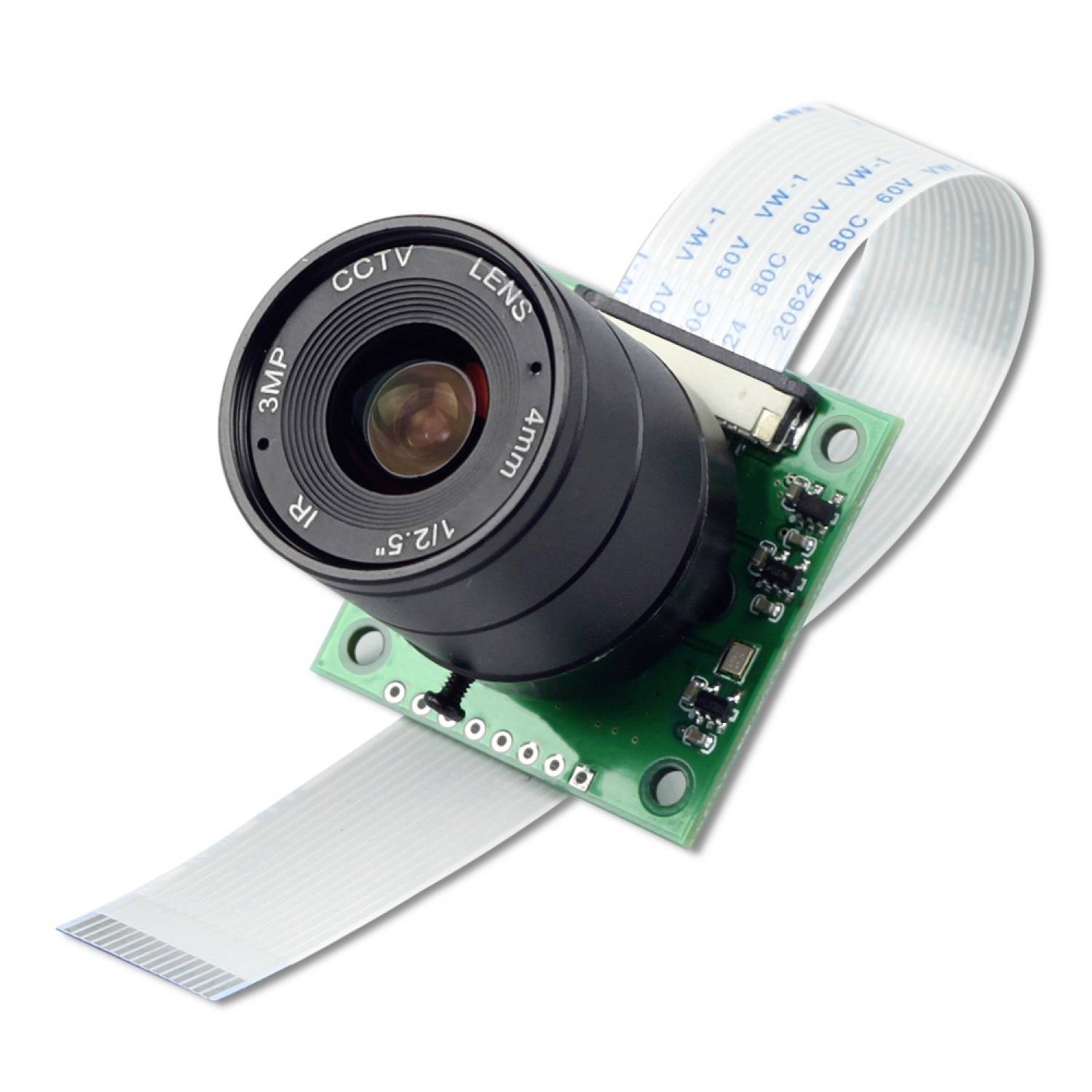

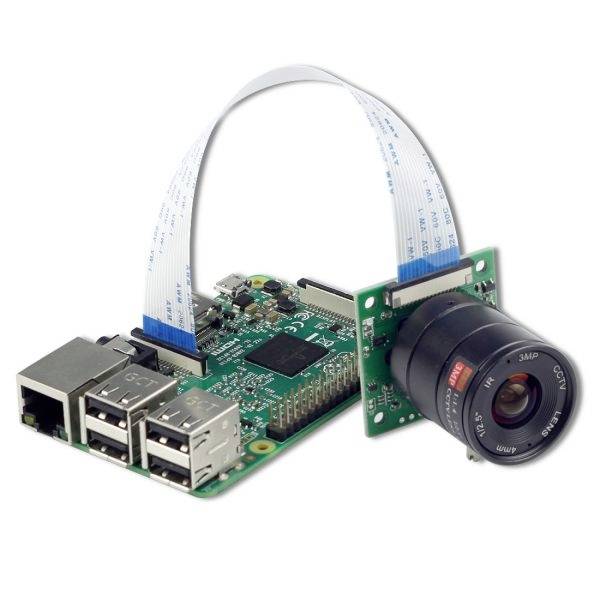

The ArduCAM team has released a number of camera modules for the Raspberry Pi, including 5MP and 8MP modules. They are fully compatible with the official version and are divided into standard version, optimized optical power version, miniature spy camera version, noir version, motorized IR cut version and programmable motorized focus camera version. These camera modules support all Raspberry Pi models and require a 15-to-22-pin cable or an adapter to work with the Pi Zero. This module is a solid Noir 8MP camera with IMX219 sensor and CS Mount lens for Raspberry. Static images can be captured with 3280 x 2464 pixels. Videos are supported with 1080p30, 720p60, and 640 x 480p90. The connection to the Pi is made via the standard CSI interface. Due to the requirements for various lens holders, the field of view (FOV), the depth of field (DOF) and the motorized IR-block filter, this model has been additionally developed. Application areas of this camera are e.g. mobile phones, PDAs, toys or other battery-operated products.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x ArduCAM 8MP Noir Pi CS camera
- 1x 15 cm 15-pin FPC cable
