Name: Arduino UNO™ Q DIY synth bundle Arduino UNO Q 2 GB 4 x 2.0 GHz Arduino UNO
Brand: Arduino
SKU: 3790317

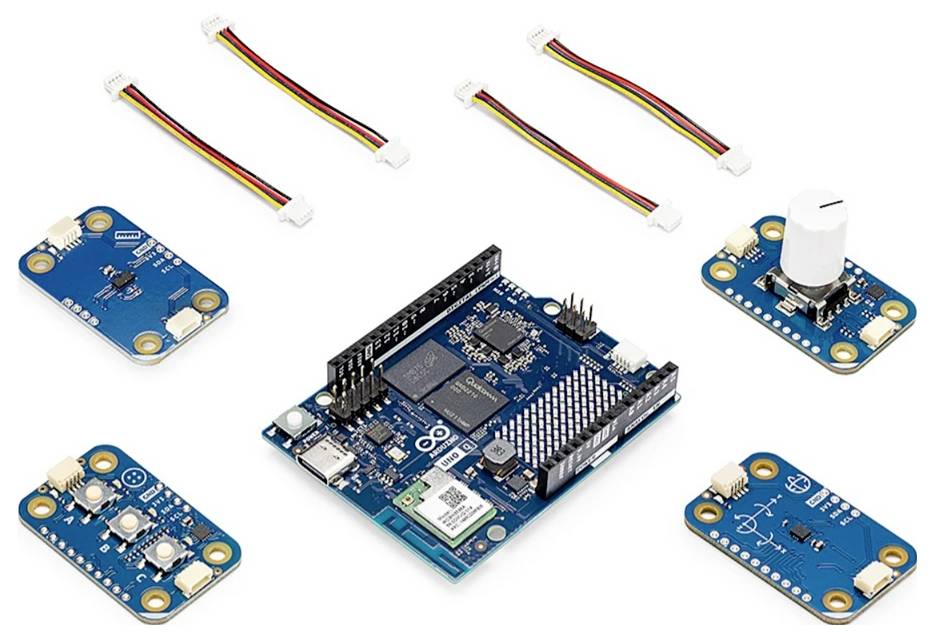

Arduino board with several small blue sensor modules and connecting wires arranged around it, showing a kit of electronic breakout boards.

A blue circuit board with electronic components, connection points, and white markings for attaching to other devices.

A blue sensor board with multiple connectors and a central chip, labels 'GND', 'SDA', 'SCL'.

Blue electronic module with multiple connectors and components, including three white switches in the centre, labelled 'A', 'B', and 'C'.

A rotary encoder on a blue circuit board with multiple connections. The encoder has a white, knurled rotary wheel and is suitable for electronics projects.

A blue circuit board featuring various electronic components, including a Qualcomm chip, labeled 'Arduino UNO'.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Arduino® UNO™ Q (2 GB / 16 GB eMMC) DIY synth bundle

Easy to get started: A guided "Synth-in-a-Box" experience for all levels of knowledge with minimal effort.
Quick success: Thanks to step-by-step tutorial and community support to your own synthesizer.
Multi-dimensional control: To design your own user interface and to control sounds flexibly via movement and proximity.
Versatile modulino nodes: Four modules included for the synthesizer and countless other projects.

Technical specifications

Microprocessor (MPU): Qualcomm Dragonwing™ QRB2210: Quad-Core Arm® Cortex®-A53 with 2.0 GHz / Adreno GPU 3D graphics accelerator: 2x ISP (13 MP + 13 MP or 25 MP) with 30 fps
Microcontroller (MCU): STM32U585 / Arm® Cortex®-M33 with up to 160 MHz / 2 MB flash memory / 786 KB SRAM
Power supply: Via USB-C port 5 VDC max. at 3 A / input voltage (VIN): 5 VDC
USB 1× USB-C connection with host/device roller switching, current roller circuit and video output
Connectivity: Wi-Fi® 5 2,4/5 GHz with integrated antenna / Bluetooth® 5.1 with integrated antenna
INTERFACES I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
Video: Video output support via USB-C, MIPI DSI pins on the JMEDIA header
4× RGB LEDs, user-controlled / 8x13 blue LED matrix / 1x QWIIC connector, 3V3 voltage, I2C / 1x user pushbutton / JCTL: MPU remote debug connection
Audio: Microphone input / headphone output / line output on JMISC
Dimensions: 68.85 mm x 53.34 mm (UNO form factor)
MPU Operating System: Linux Debian OS with upstream support
Real-time operating system: Arduino Core on Zephyr OS
Containment: Docker- und Docker Compose-support
Supported operating systems for Arduino APP Lab: Windows: Windows: 10 or higher (64-bit) / MacOS: MacOS 11 or higher (64-bit) / Linux: Ubuntu 22.04 or higher and Debian Trixie (64-bit)

Product type: SBC starter kit

Type: Arduino UNO Q

Processor: ARM Cortex-A53

Processor cores (No.): 4 x

: 2 GB

Clock speed: 2.0 GHz

Memory type: FLASH

Operating system (Version): Linux

Memory capacity: 16 GB

Internal ports: DSI (display)

External ports: USB-C® (current)

Wi-Fi: built-in

Bluetooth: 5.1

Power supply (LOV): via USB
via PSU (optional)

Content: Arduino UNO

Length: 68.85 mm

Width: 53.34 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3790317 Arduino UNO™ Q DIY synth bundle Arduino UNO Q 2 GB 4 x 2.0 GHz Arduino UNO

Description

Switch from tech to techno – or any other music you like – with this package that provides you with all the hardware and software you need to build your own personal digital synthesizer.

The simple, secure Qwiic connectors and the linking of Arduino® Modulino™ nodes make it easy to assemble a synthesizer in no time at all – ready for all physical inputs and practical interactions. Simply follow the easy-to-understand, structured and exciting tutorials on the Arduino Project Hub!

Both the bundle and its instructions are designed to help you seamlessly connect hardware controls to drum machines and waveform generators running on the Linux side of the UNO Q. Everything, even Pure data integration! – Is designed to support your experience so you can work with electronics and sound design without any major obstacles.

In a mood for more? Use the accompanying Modulino nodes to go beyond conventional interfaces by combining motion, proximity and tactile inputs in order to make sounds dynamic - for multi-faceted performances and more creative experiments. Or go one step further and download the file for an enclosure that you can produce in 3D printing for a high-quality, product-like finish.

The UNO Q DIY Synth Bundle is perfect for musicians, students and curious hobbyists and enables you to build an individual instrument for electronic music.

This text is machine translated.
