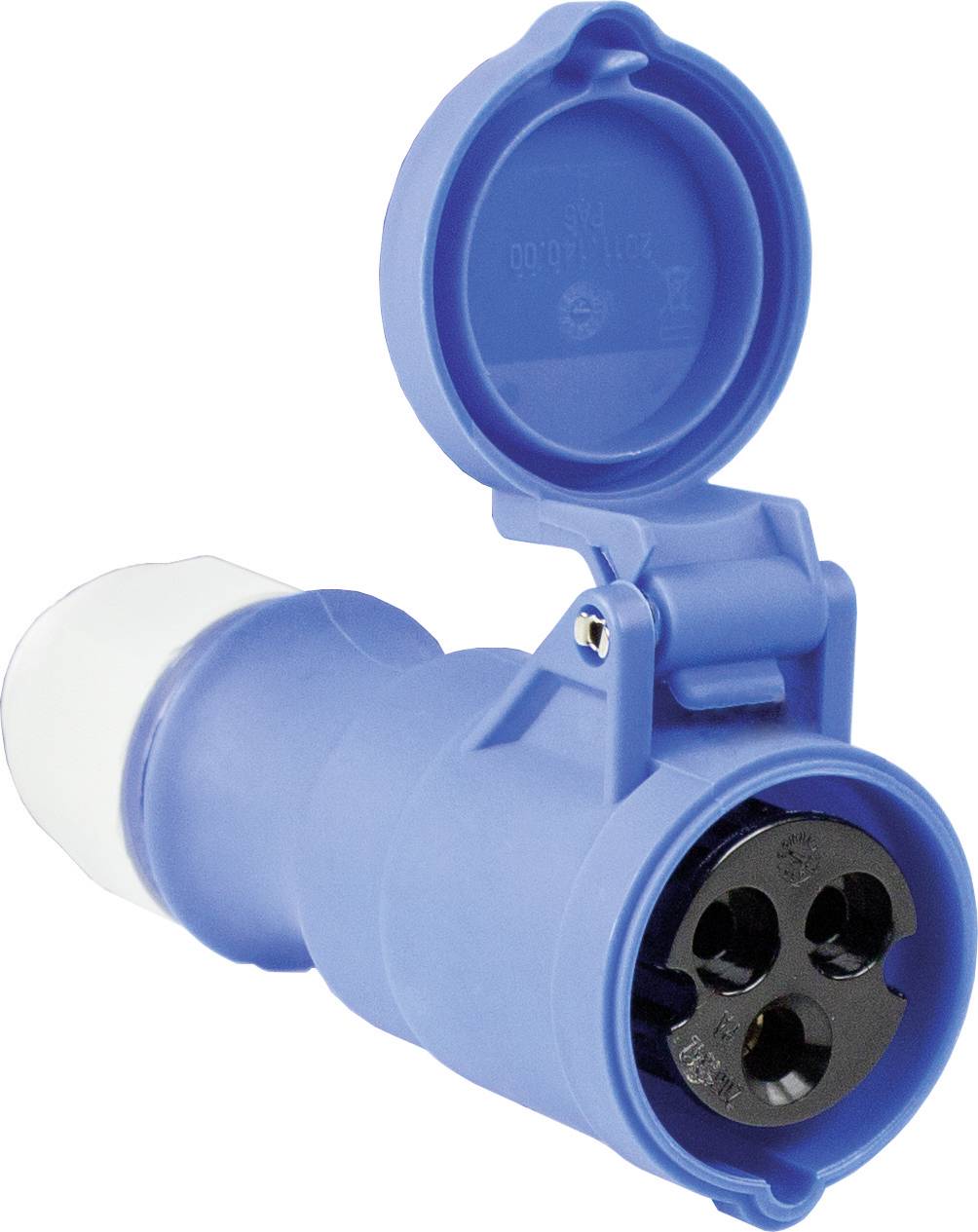

AS Schwabe 60471 CEE connector 16 A 230 V 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 4.99 / piece)
€ 8.99
-44 %
€ 4.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
CEE connector
- Nominal voltage
230 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type B
CEE connector (3-pin, 16 A)
IP44
- Standards
Tested according to
IEC 60309
- Factory colour
Blue
- Dim
(L x W x H) 149 x 52 x 74 mm
- Length
149 mm
- Width
52 mm
- Height
74 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2484771 AS Schwabe 60471 CEE connector 16 A 230 V 1 pc(s)
Description
"High-quality plugs and couplings of the latest generation
With impact-resistant, splash-proof housing made of polyamide
Housing with thread lock and locking slide
With screw contact for cable connection
Screw connection with sealing
Strain relief and cable bend protection
Cable intake up to 3G2.5
Made in Germany
IP44: foreign bodies and splash-proof"
This text is machine translated.
With impact-resistant, splash-proof housing made of polyamide
Housing with thread lock and locking slide
With screw contact for cable connection
Screw connection with sealing
Strain relief and cable bend protection
Cable intake up to 3G2.5
Made in Germany
IP44: foreign bodies and splash-proof"
This text is machine translated.
