Buy AS Schwabe 61462 CEE plug 16 A 230 V 1 pc(s)

Wall-mounted EV charging unit with a hinged black cover, exposing a blue three-pin connector inside the charging port.

Black wall-mounted EV charging socket with blue circular connector and a small blue switch beneath a cover labeled 'Schwabe'.

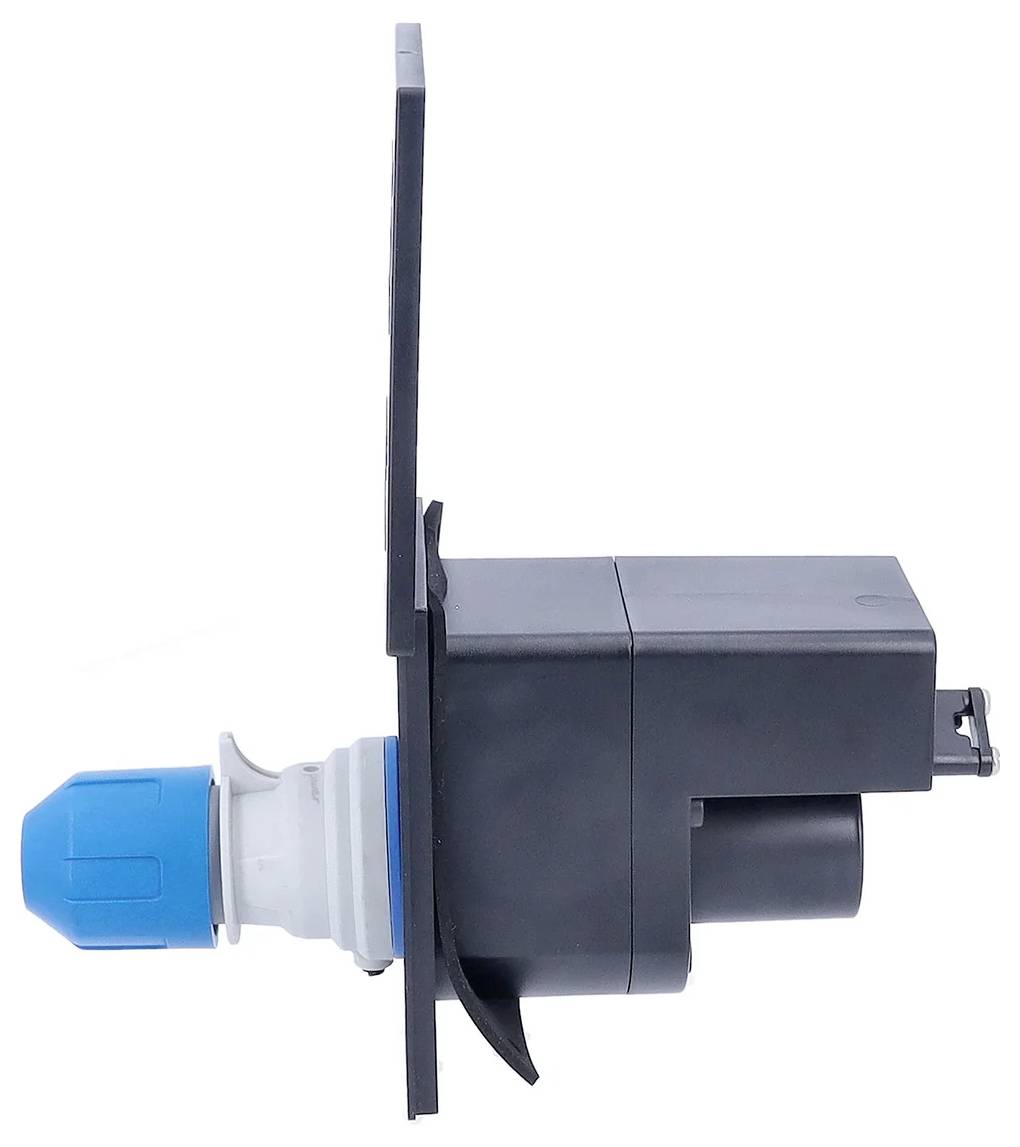

Blue industrial electrical plug mounted through a black wall panel, viewed from the side on a white background.

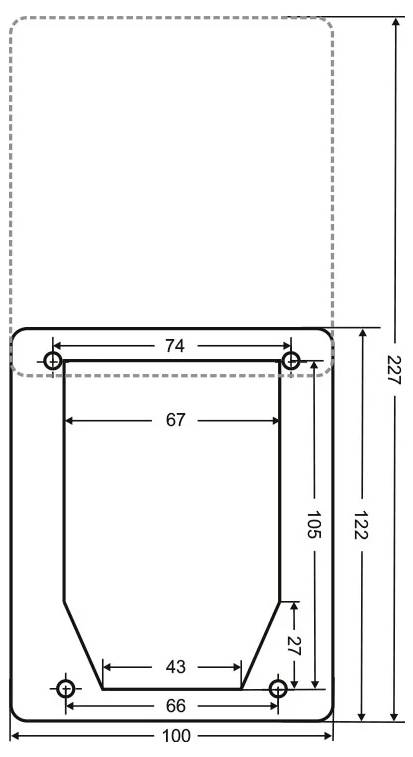

Technical line drawing of a rounded-rectangle part with measurements: outer width 100 and height 122, inner cutout 67 wide and 105 high, with additional labeled dimensions 74, 66, 43, 27, and overall height 227.

1/5

Fast track dispatch on Mon, 21 Sep

200 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Report legal concerns

Technical specifications

Product type: CEE plug

Nominal voltage: 230 V

Nominal current: 16 A

Nominal current - rounded value: 16 A

Type A: Screws

Type B: CEE plug (5-pin, 16 A)

: IP44

Standards: Tested according to
IEC 60309

Factory colour: Black

Dim: (W x H) 100 mm x 112 mm

Width: 100 mm

Height: 112 mm

Content: 1 pc(s)

Number of pins: 3

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2484781 AS Schwabe 61462 CEE plug 16 A 230 V 1 pc(s)

Description

High-quality CEE feed-in plug for self-assembly
CEE feed-in plug 230 V, 16 A, 3-pin with sliding cover
Flange dimension HxB in mm (closed): 112x100
Dimensions HxW in mm (open): 227x100
Hole spacing HxB in mm 74/66 x 105
Installation depth in mm 119
CEE 230 V, 16 A, 3-pin, 6 h
IP44: foreign bodies and splash-proof

This text is machine translated.
