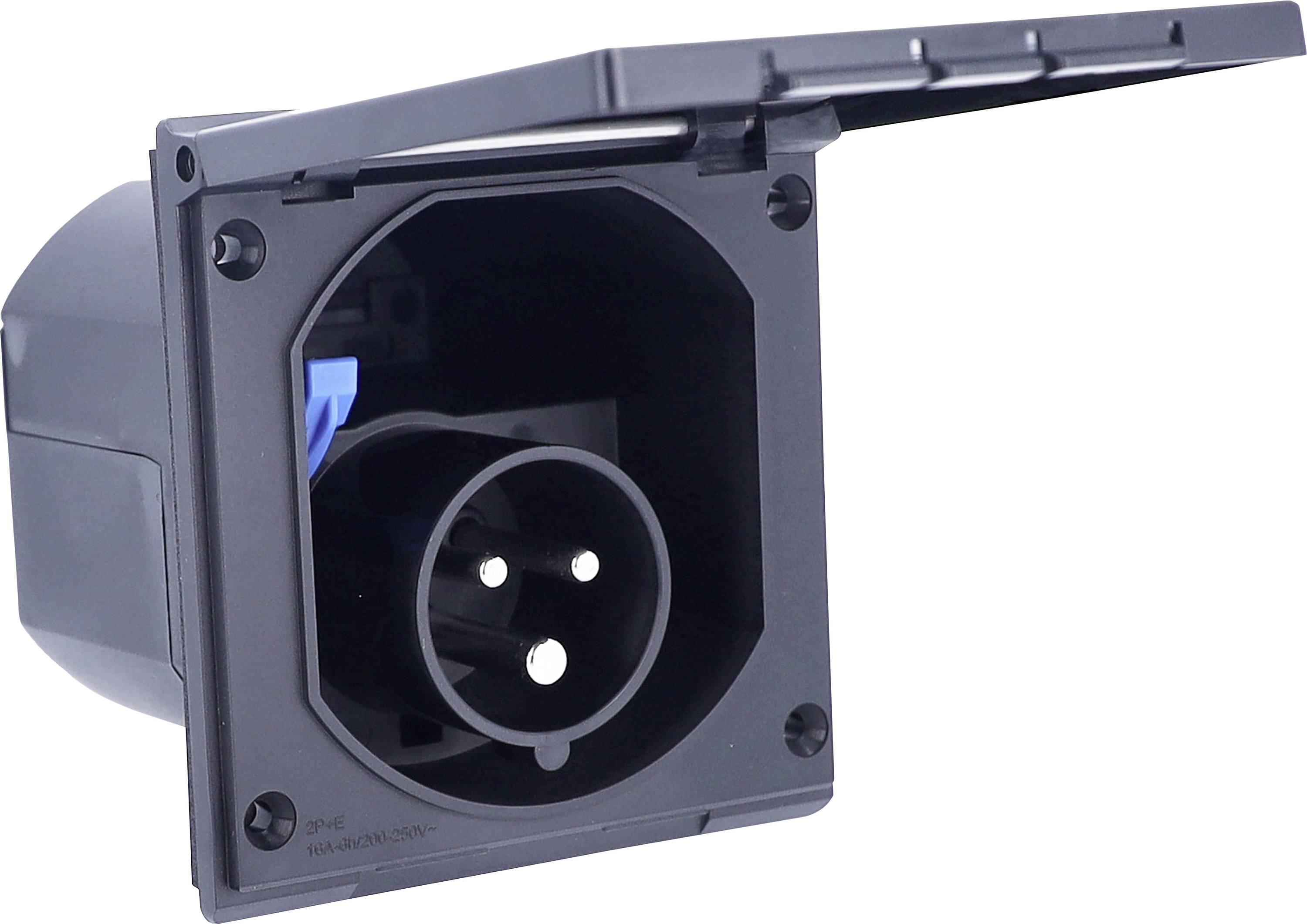

AS Schwabe 61493 CEE plug 16 A 230 V 1 pc(s)

AS Schwabe 61493 CEE plug 16 A 230 V 1 pc(s)-0

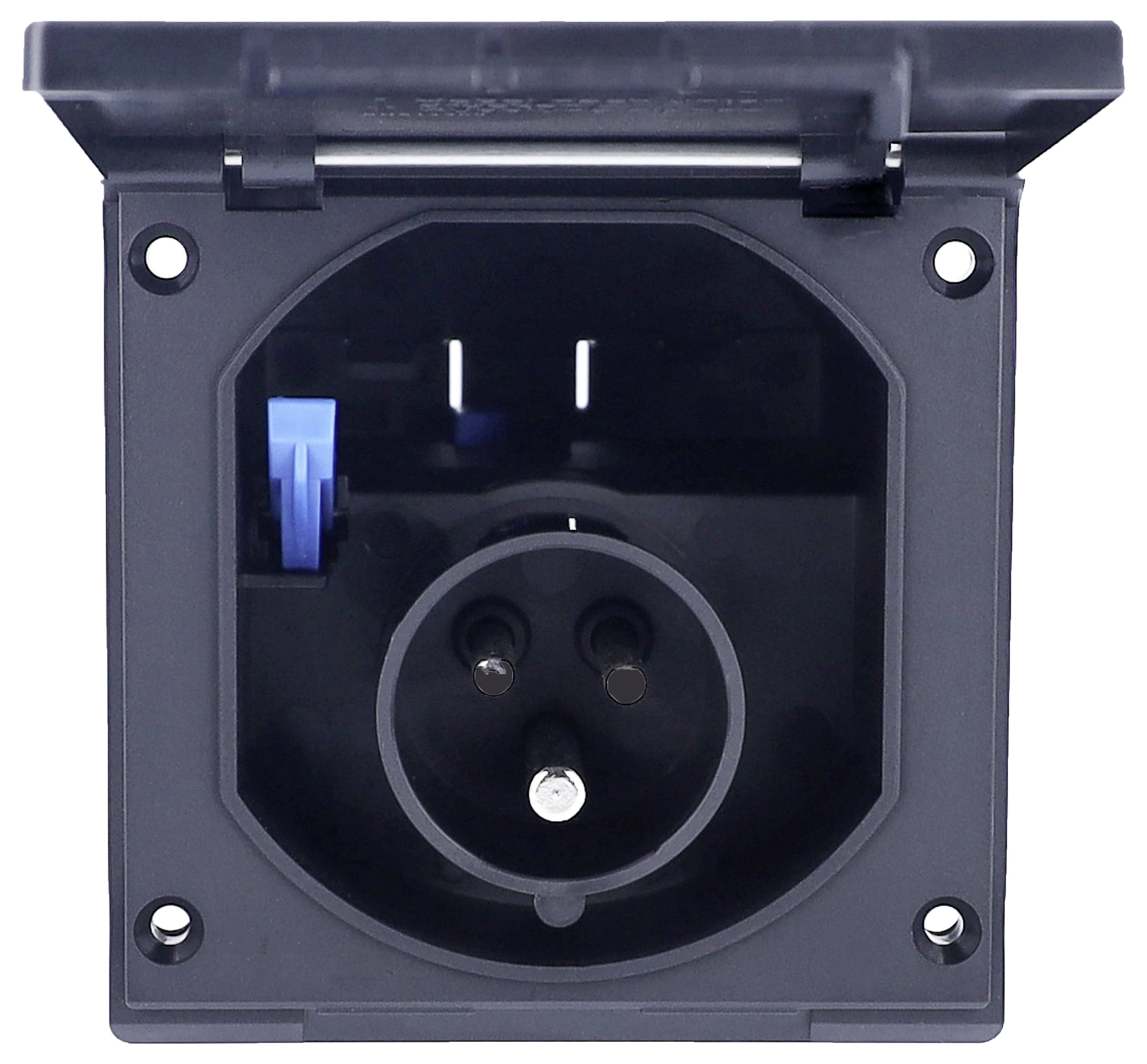

Black outdoor socket with hinged cover, opened. A black housing with mounting holes in the corners.

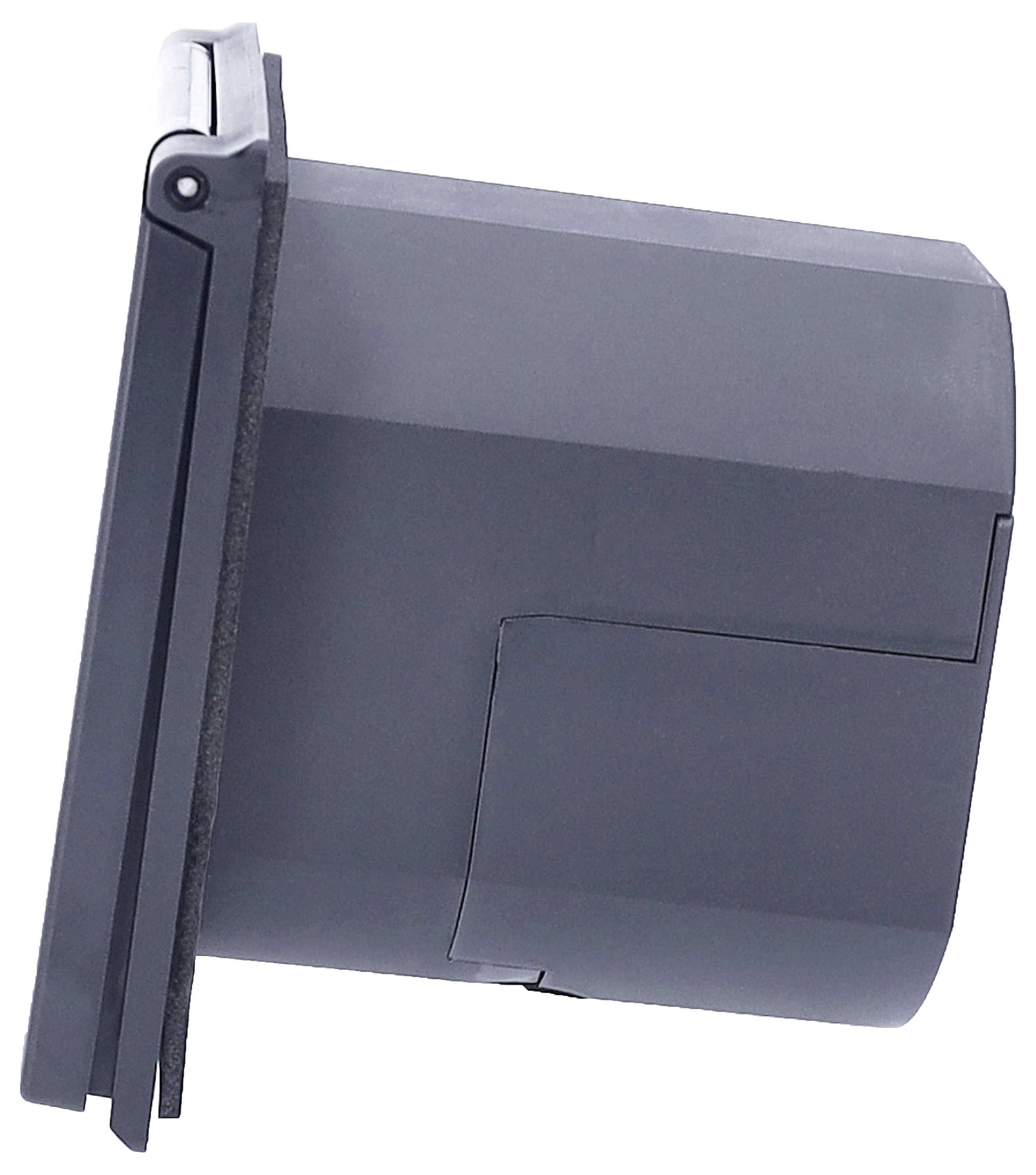

A black, rectangular electronic device with a flap on the side, presumably a card reader or similar device.

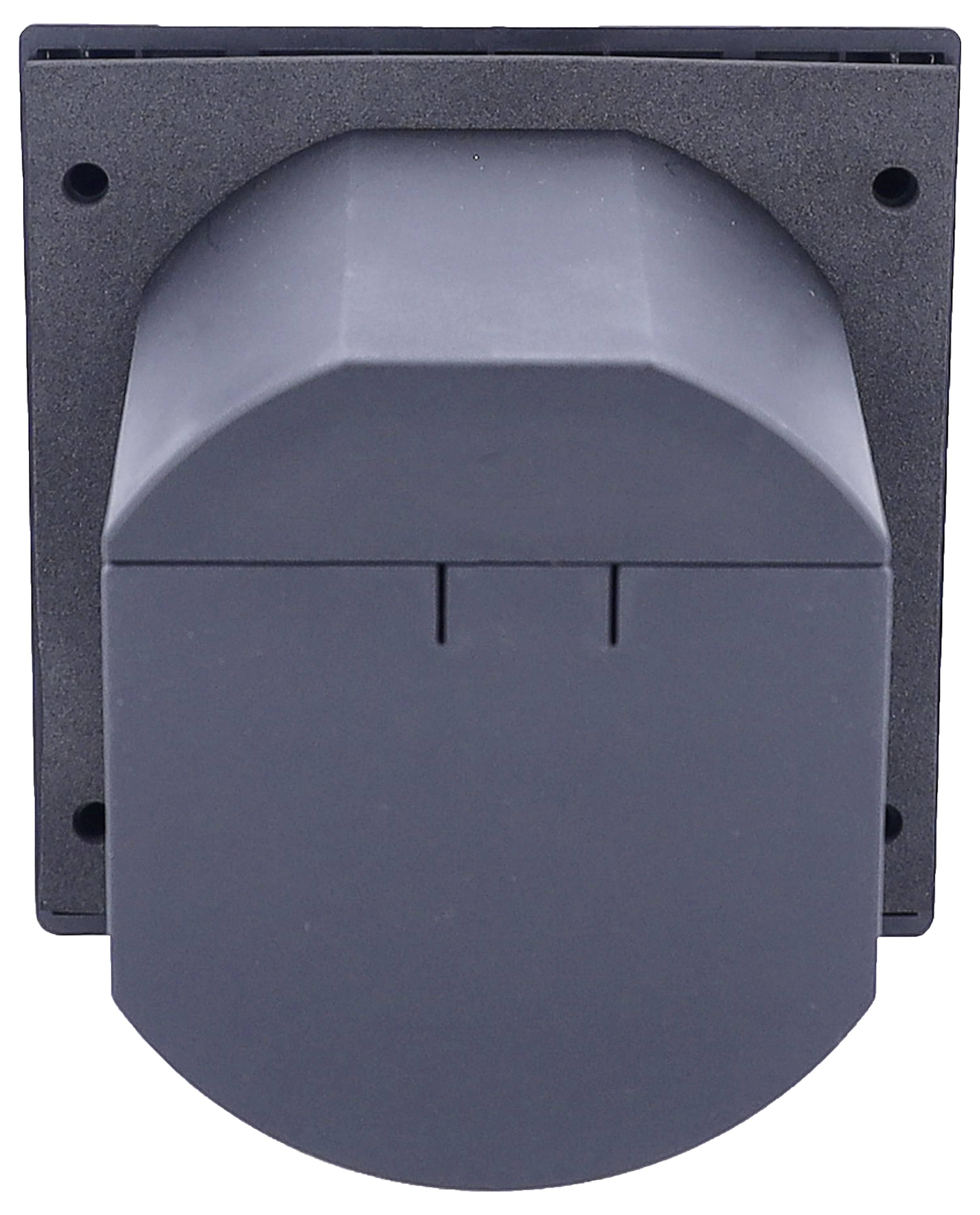

Plastic housing in rectangular form with rounded front section, presumably part of a technical or industrial device.

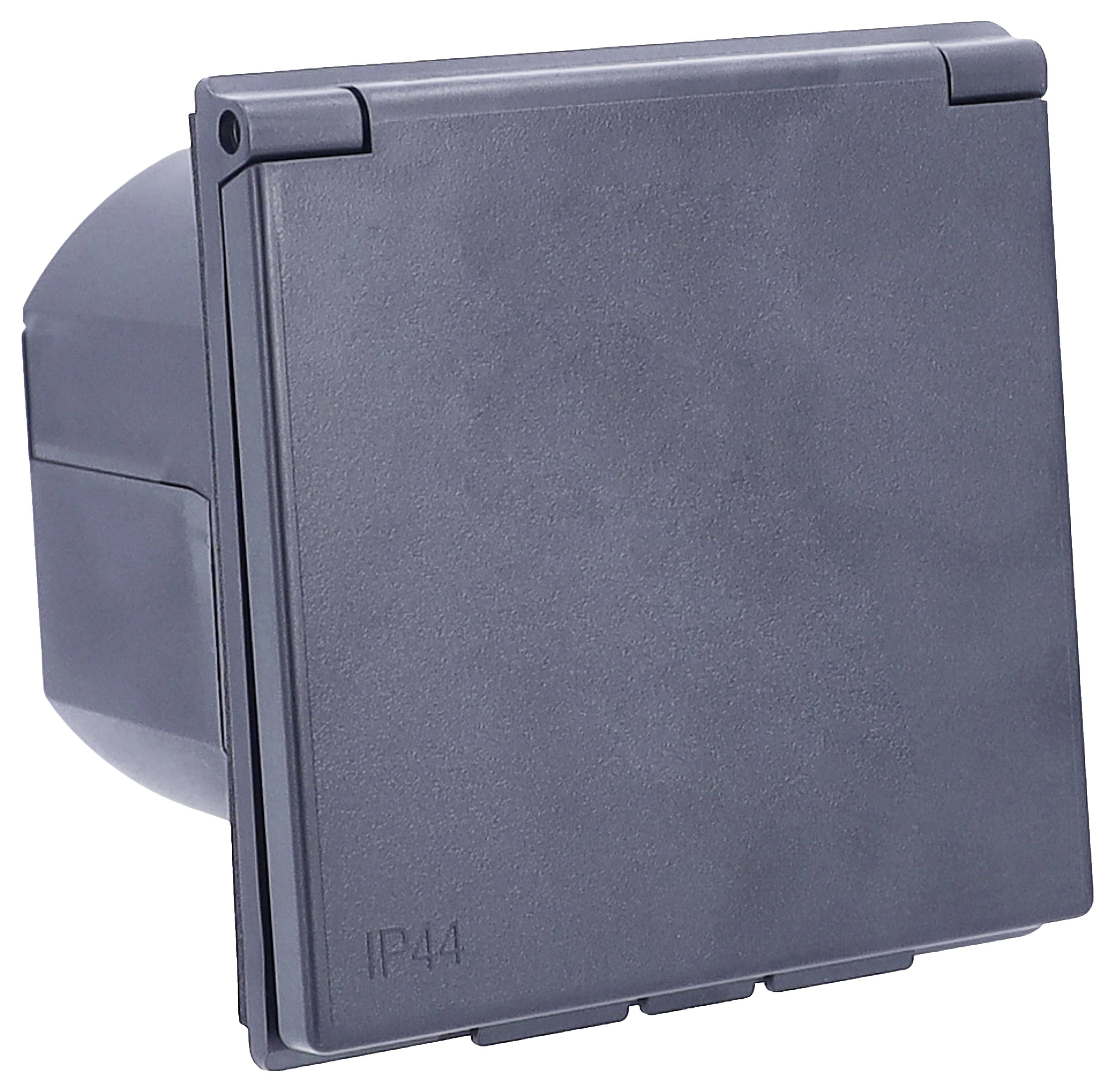

A gray outdoor electrical outlet with cover, marked with 'IP44', indicating that it is splash-proof.

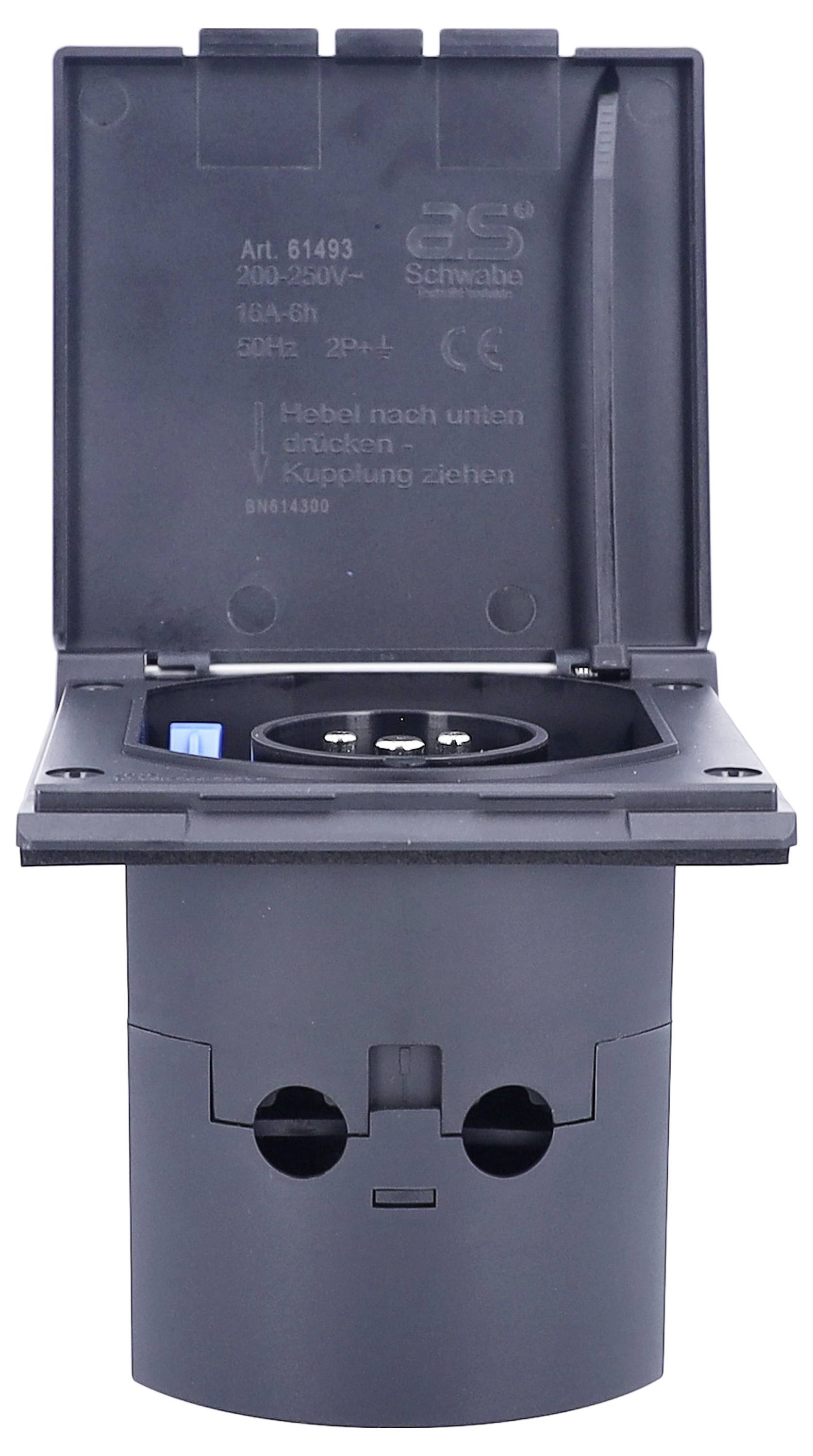

A black industrial connector with a flipped-up cover. Visible power rating: 10A, 250V, IP44.
1/6
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
105 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

CEE plug

Nominal voltage

230 V

Nominal current

16 A

Nominal current - rounded value

16 A

Type A

Screws

Type B

CEE plug (3-pin, 16 A)

IP44

Standards

Tested according to
IEC 60309

Factory colour

Black

Dim

(W x H) 104 mm x 110 mm

Width

104 mm

Height

110 mm

Content

1 pc(s)

Number of pins

3

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2484785 AS Schwabe 61493 CEE plug 16 A 230 V 1 pc(s)

Description

High-quality CEE feed plug for self-assembly
CEE feed-in plug 230 V, 16 A, 3-pin with hinged cover
Flange dimensions HxB in mm: 110x104
Hole spacing HxB in mm: 90x77.5
Installation depth in mm: 82
CEE 230 V, 16 A, 3-pin, 6 h
IP44: foreign bodies and splash-proof
